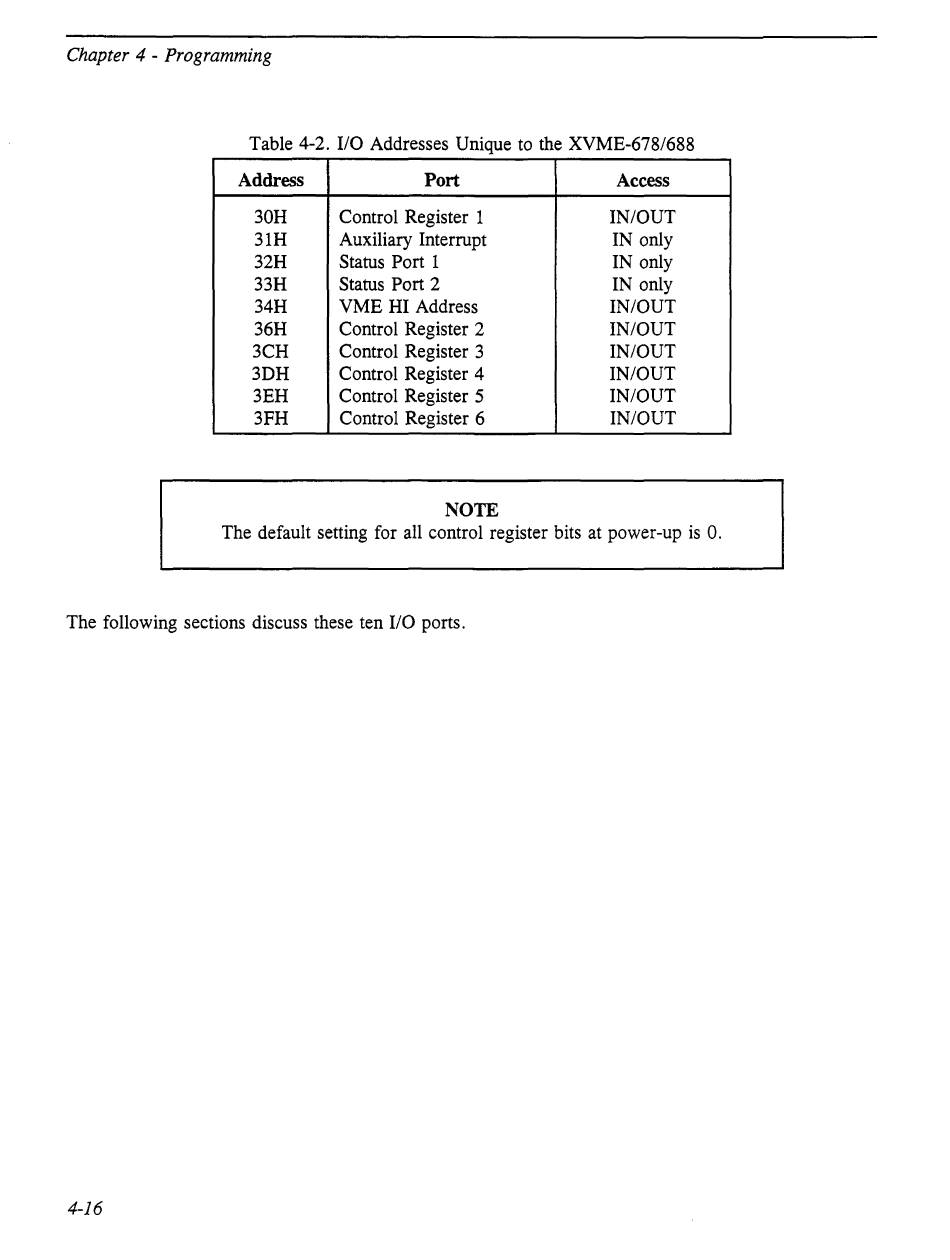

Chapter 4 - Programming
Table 4-2.
110
Addresses Unique to the XVME-678/688
Address
Port
Access
30H
Control Register 1
IN/OUT
31H
Auxiliary Interrupt
IN only
32H
Status Port 1
IN only
33H
Status Port 2
IN only
34H
VME HI Address
IN/OUT
36H
Control Register 2
IN/OUT
3CH
Control Register 3
IN/OUT
3DH
Control Register 4
IN/OUT
3EH
Control Register 5
IN/OUT
3FH
Control Register 6
IN/OUT
NOTE
The default setting for all control register bits at power-up is O.
The following sections discuss these ten
110
ports.
4-16
