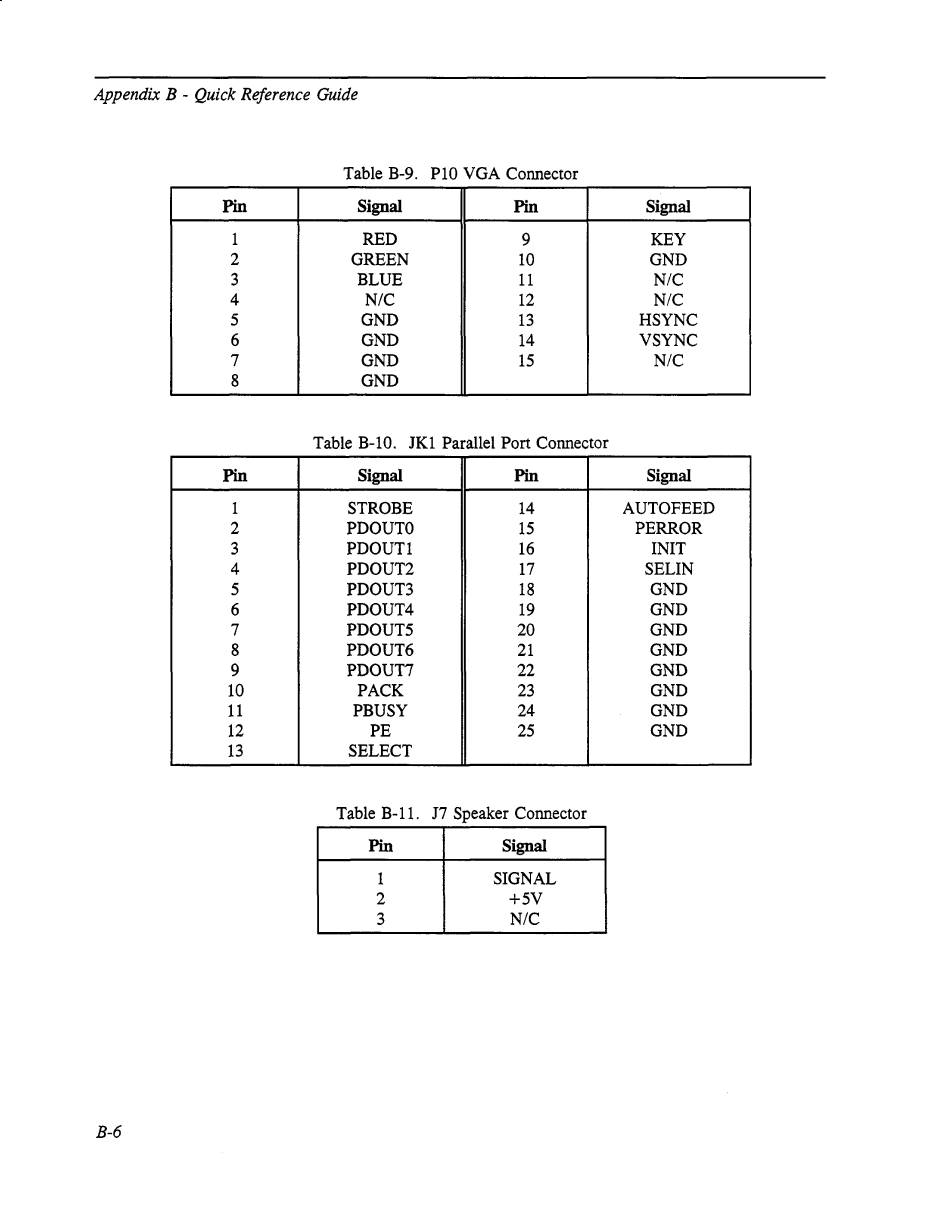

Appendix B - Quick Reference Guide
Table B-9. PlO VGA Connector
Pin Signal Pin Signal
1 RED
9
KEY
2 GREEN
10
GND
3 BLUE 11
N/C
4
N/C
12
N/C
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15
N/C
8 GND
Table B-I0. JKl Parallel Port Connector
Pin
Signal
Pin
Signal
1 STROBE
14
AUTOFEED
2 PDOUTO
15
PERROR
3 PDOUTI 16 INIT
4 PDOUT2 17 SELIN
5 PDOUT3 18 GND
6 PDOUT4 19 GND
7 PDOUT5 20 GND
8 PDOUT6 21 GND
9 PDOUT7 22 GND
10 PACK 23 GND
11 PBUSY 24 GND
12 PE 25 GND
13 SELECT
Table B-ll. 17 Speaker Connector
Pin
Signal
1
SIGNAL
2
+5V
3
N/C
B-6
