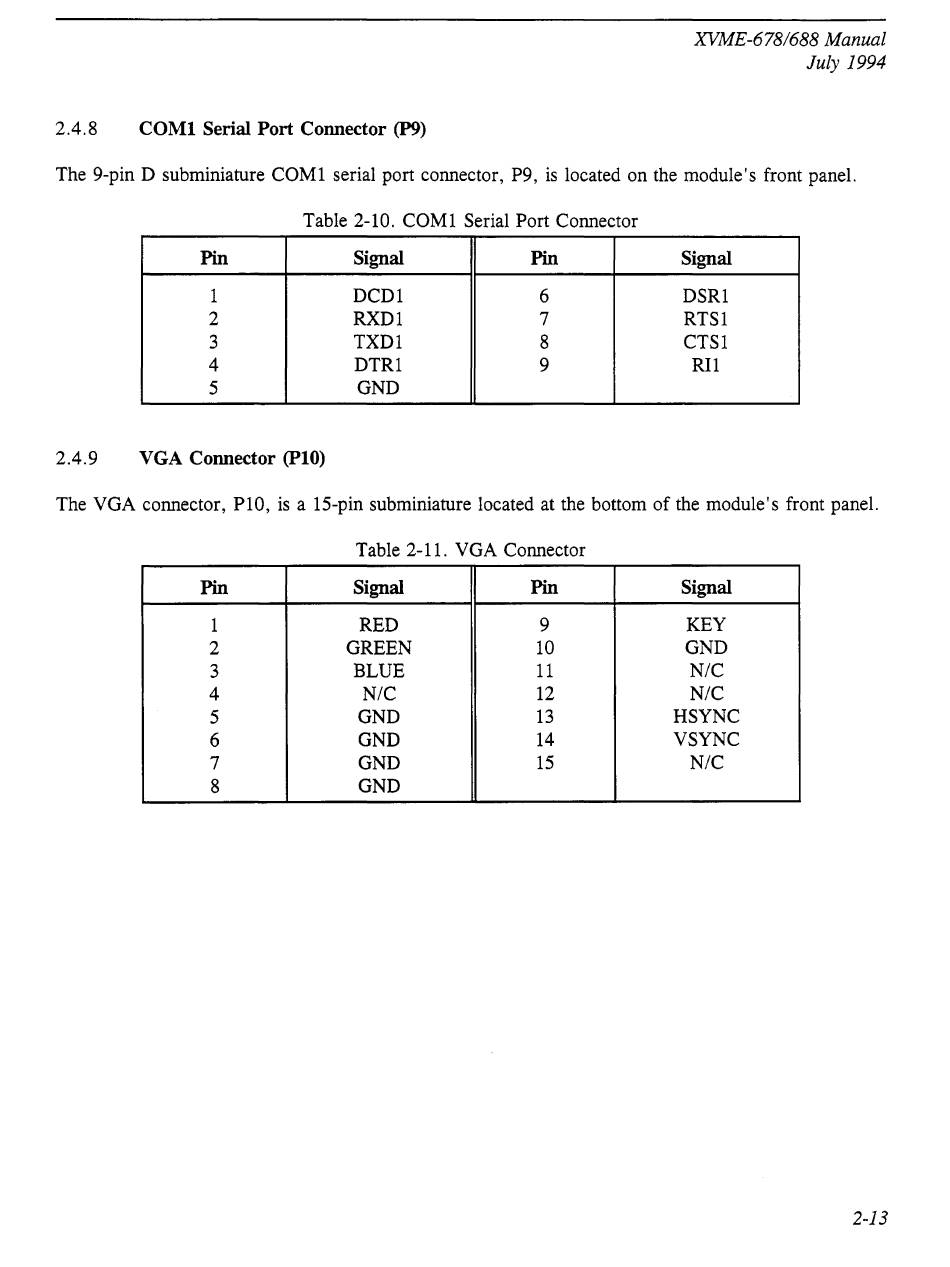

2.4.8 COMl Serial Port Connector
(P9)
XVME-6781688 Manual
July 1994
The 9-pin D subminiature COMI serial port connector, P9, is located on the module's front panel.
Table 2-10. COMI Serial Port Connector
Pin Signal
Pin Signal
1 DCDI 6
DSRI
2 RXDI 7 RTSI
3 TXDI
8
CTSI
4 DTRI
9 RII
5 GND
2.4.9 VGA Connector (PlO)
The VGA connector, P1O, is a 15-pin subminiature located at the bottom of the module's front panel.
Table 2-11. VGA Connector
Pin Signal Pin Signal
1 RED 9 KEY
2 GREEN 10 GND
3 BLUE 11
N/C
4
N/C
12
N/C
5 GND 13
HSYNC
6 GND
14 VSYNC
7
GND 15
N/C
8 GND
2-13
