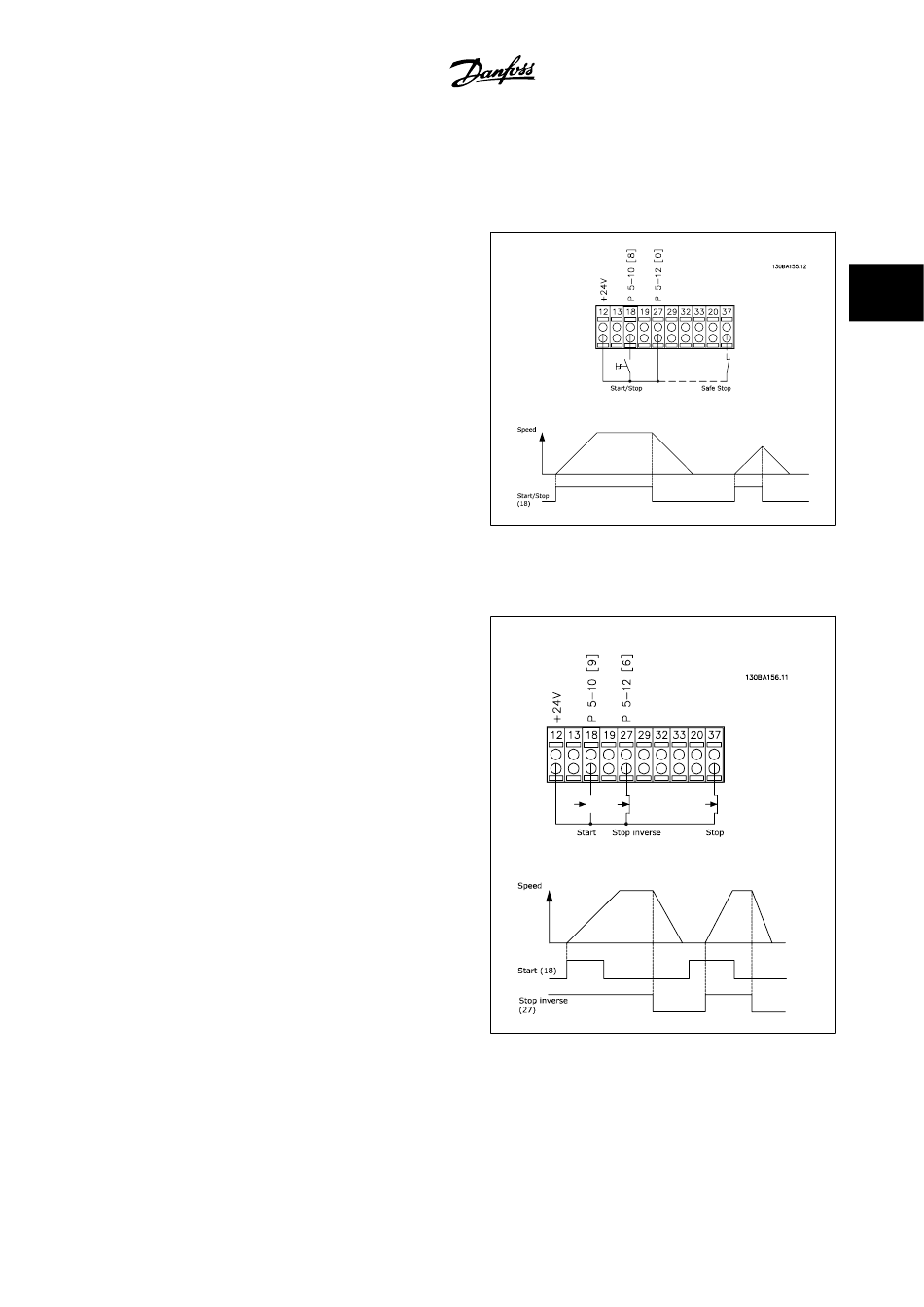

3.7 Connection Examples

3.7.1 Start/Stop

Terminal 18 Digital Input
Terminal 18 = par. 5-10
Terminal 27 Digital Input
Terminal 27 = par. 5-12
fault coast inverse )
Terminal 37 = Safe stop

3.7.2 Pulse Start/Stop

Terminal 18 = par. 5-10 Terminal 18 Digital Input
Terminal 27= par. 5-12 Terminal 27 Digital Input
Terminal 37 = Safe stop
Start
[8]
No operation
[0] (De-
[9] Latched start
[6] Stop inverse
®
