3.1 Overview

3.1.1 Programming with the Numerical
Local Control Panel (LCP 21)
The FC 360 supports graphic and numerical local control
panels as well as blind covers. This chapter covers
programming with the Numerical Local Control Panel (LCP
21).
NOTICE
The frequency converter can also be programmed from a
PC via RS-485 com-port by installing the MCT-10 Se-tup
software. This software can either be ordered using code
number 130B1000 or downloaded from:
www.danfoss.com/BusinessAreas/DrivesSolutions/software-
download.
3.1.2 Numerical Local Control Panel (LCP
21)
The Numerical Local Control Panel (LCP 21) is divided into
4 functional sections.
A. Numeric display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
1
A
Setup 1
2
Status
4
B
Menu
9
C
On
OK
6
Warn
Alarm
8
O
Hand
D
Reset
On
13

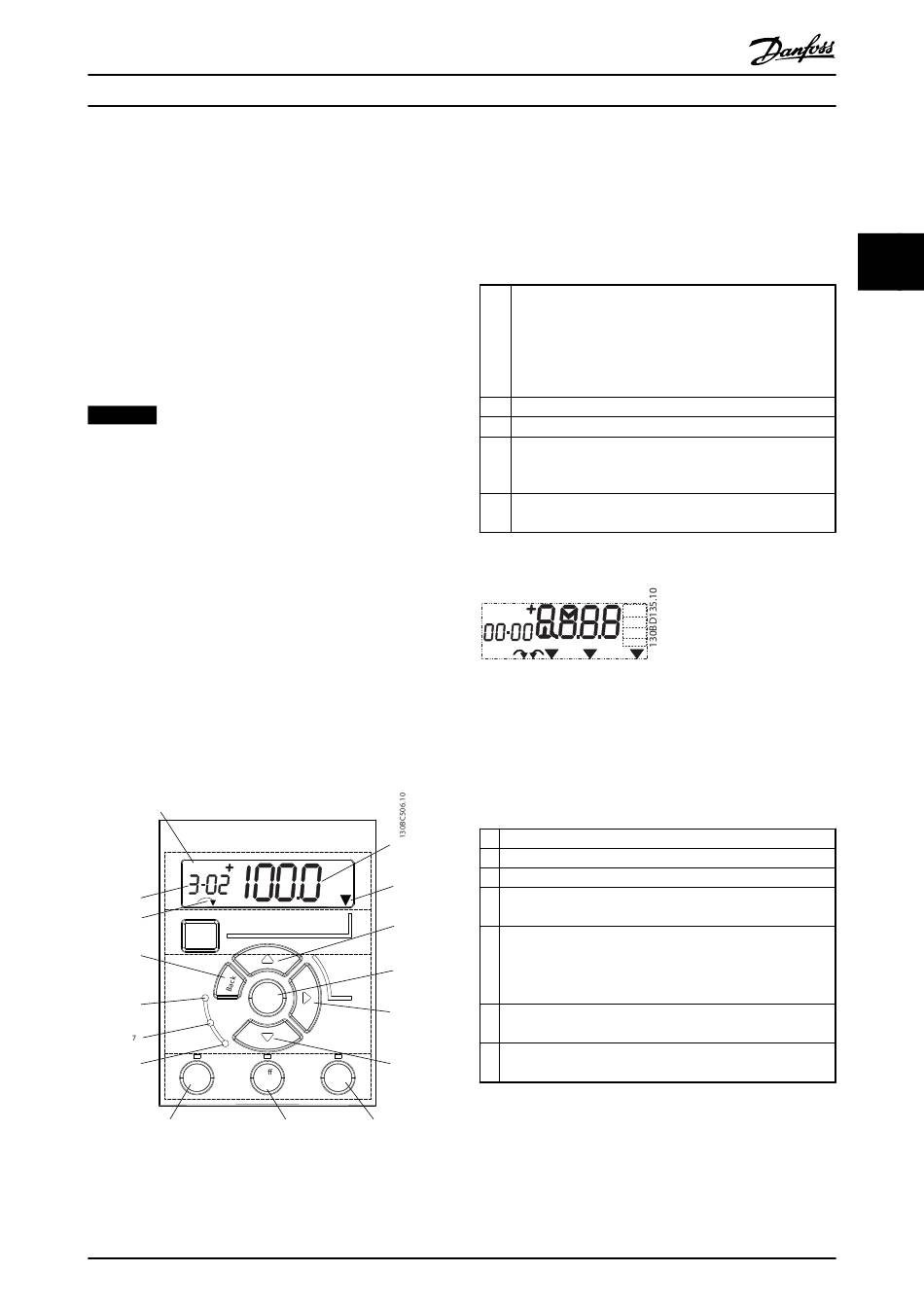

Illustration 3.1 View of the LCP 21
MG06C402
Programming Guide
3
5
Quick Main
10
Menu Menu
11
12
10
Auto
On
14 15
Danfoss A/S © Rev. 2014-03-31 All rights reserved.
A. Numeric display
The LCD-display is back-lit with 1 numeric line. All data is
displayed in the LCP.
1 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (Set-up 12). The number flashing indicates the
edit set-up.
2 Parameter number.
3 Parameter value.
4 Motor direction is shown in the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
Table 3.1 Legend to Illustration 3.1
Setup 12
AHP
VkW
srpm
Hz%
n1 n2 n3
p5 p4
INDEX
p3 p2 p1
Illustration 3.2 Display Information
B. Menu key
Press [Menu] to select between status, quick menu or main
menu.
C. Navigation keys and indicator lights (LEDs)
6 Green LED/On: Control section is working.
7 Yellow LED/Warn.: Indicates a warning.
8 Flashing Red LED/Alarm: Indicates an alarm.
9 [Back]: For moving to the previous step or layer in the
navigation structure
▲ ▼
10 Arrows [
] [ ]: For maneuvering between parameter groups,
parameters and within parameters or increasing/decreasing
parameter values. Can also be used for setting local
reference.
11 [OK]: For selecting a parameter and for accepting changes to
parameter settings
12 [►]: For moving from left to right within the parameter value
in order to change each digit individually.
Table 3.2 Legend to Illustration 3.1
3 3
15
