VLT®AutomationDrive EZ FC 321
Installation Guide
2. Insert the control wire into the appropriate terminals.
12 13 18 19 27 29 32 33
3.
Pull gently on the wire to ensure that the contact is firmly established.
Loose control cable can cause equipment faults or reduced performance.

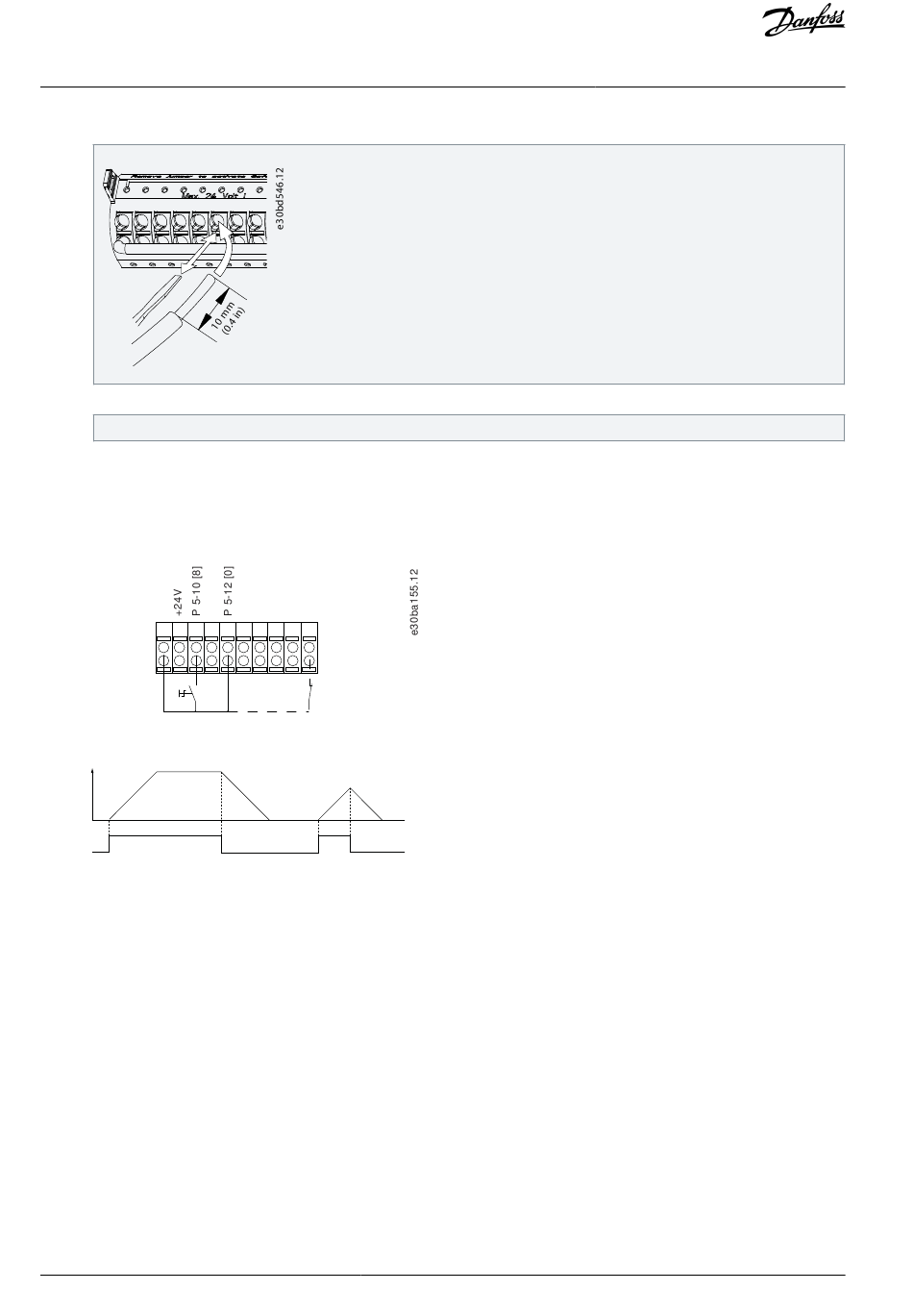

4.5 Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8] Start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [0] No operation (Default [2] Coast inverse).
Terminal 37 = Safe Torque Off.
12 13 18 19
Start/Stop
Speed
Start/Stop
[18]
Illustration 6: Start/Stop

4.6 Pulse Start/Stop

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9] Latched start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [6] Stop inverse.
Terminal 37 = Safe Torque Off.
18 | Danfoss A/S © 2021.05
27 29 32 33 20 37
Safe Stop
Electrical Installation
AN354546796134en-000201 / 130R0954
