The Right-Key Function; Quick Menu - Danfoss VLT AutomationDrive FC 360 Programming Manual

Programming
D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
NOTICE
3 3
5-12 Terminal 27 Digital Input has coast inverse as
default setting. This means that [Hand On] does
not start the motor if there is no 24 V to terminal
27.
14 [Off/Reset]: Stops the motor (off). If in alarm mode, the
alarm is reset.
15 [Auto On]: Frequency converter is controlled either via
control terminals or serial communication.
Table 3.3 Legend to Illustration 3.1

3.1.3 The Right-key Function

WARNING
The [Off/Reset] key is not a safety switch. It does not
disconnect the frequency converter from mains.
Press [►] to edit any of the 4 digits on the display
individually. When pressing [►] once, the cursor moves to
the first digit and the digit starts flashing as shown in
Illustration 3.3. Press the [
Pressing [►] does not change the value of the digits or
move the decimal point.

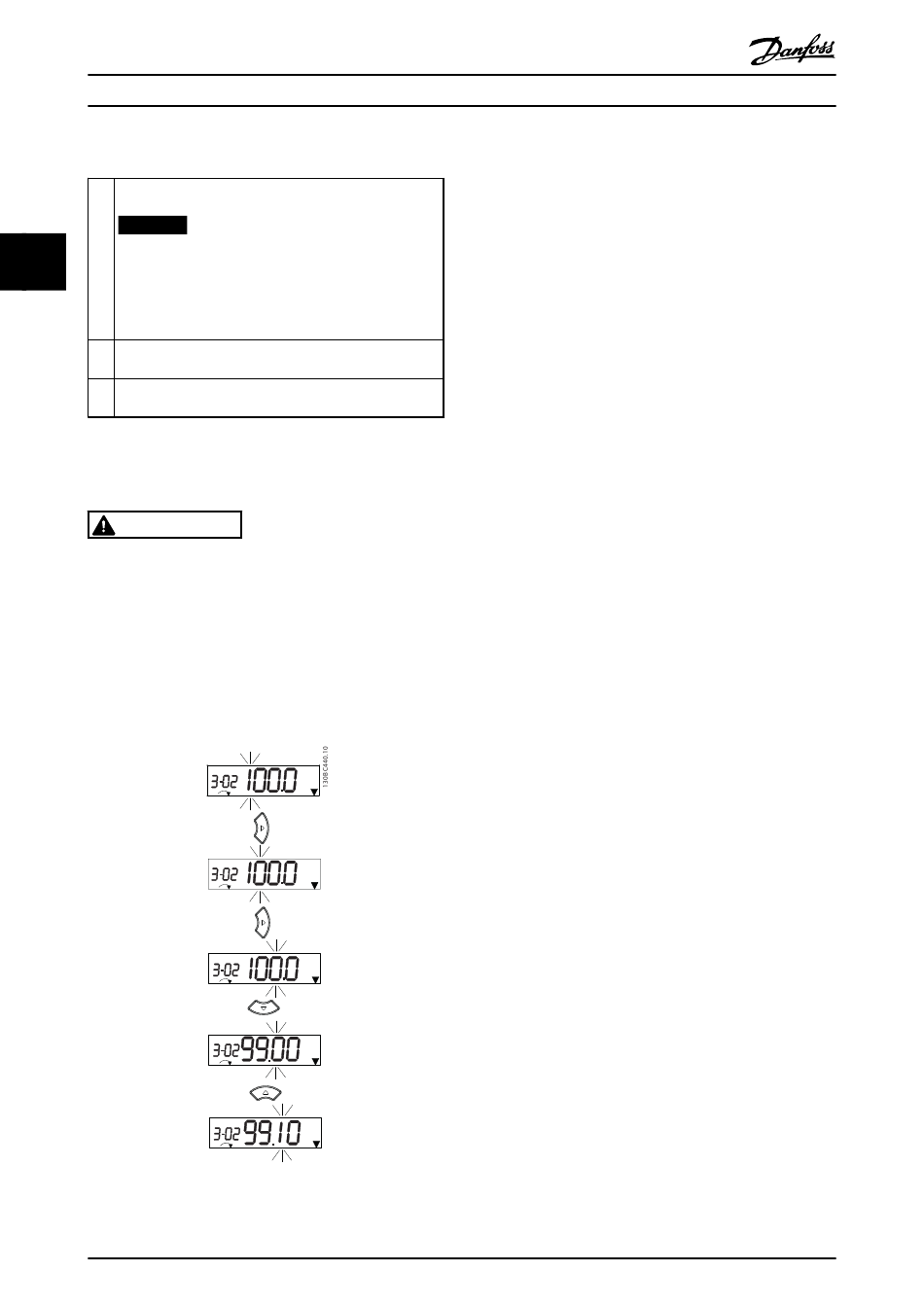

Illustration 3.3 Right-key Function
16
Programming Guide
▲ ▼
] [ ] to change the value.
Setup 1
Setup 1
Setup 1
Setup 1
Setup 1
Danfoss A/S © Rev. 2014-03-31 All rights reserved.
[►] can also be used for moving between parameter
groups. When in main menu, press [►] to move to the first
parameter in the next parameter group (e.g. move from
0-03 Regional Settings [0] International to
parameter 1-00 Configuration Mode [0] Open loop).

3.2 Quick Menu

The Quick Menu gives easy access to the most frequently
used parameters.
1. To enter the Quick Menu, press [Menu] until
indicator in display is placed above Quick Menu.
▲ ▼
2.
Press [ ] [ ] to select either QM1 or QM2, then
press [OK].
▲ ▼
3.
Press [ ] [ ] to browse through the parameters
in the Quick Menu.
4. Press [OK] to select a parameter.
▲ ▼
5.
Press [ ] [ ] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice (or 3 times if in
QM2 and QM3) to enter Status, or press [Menu]
once to enter Main Menu.
