1.4 Accessories

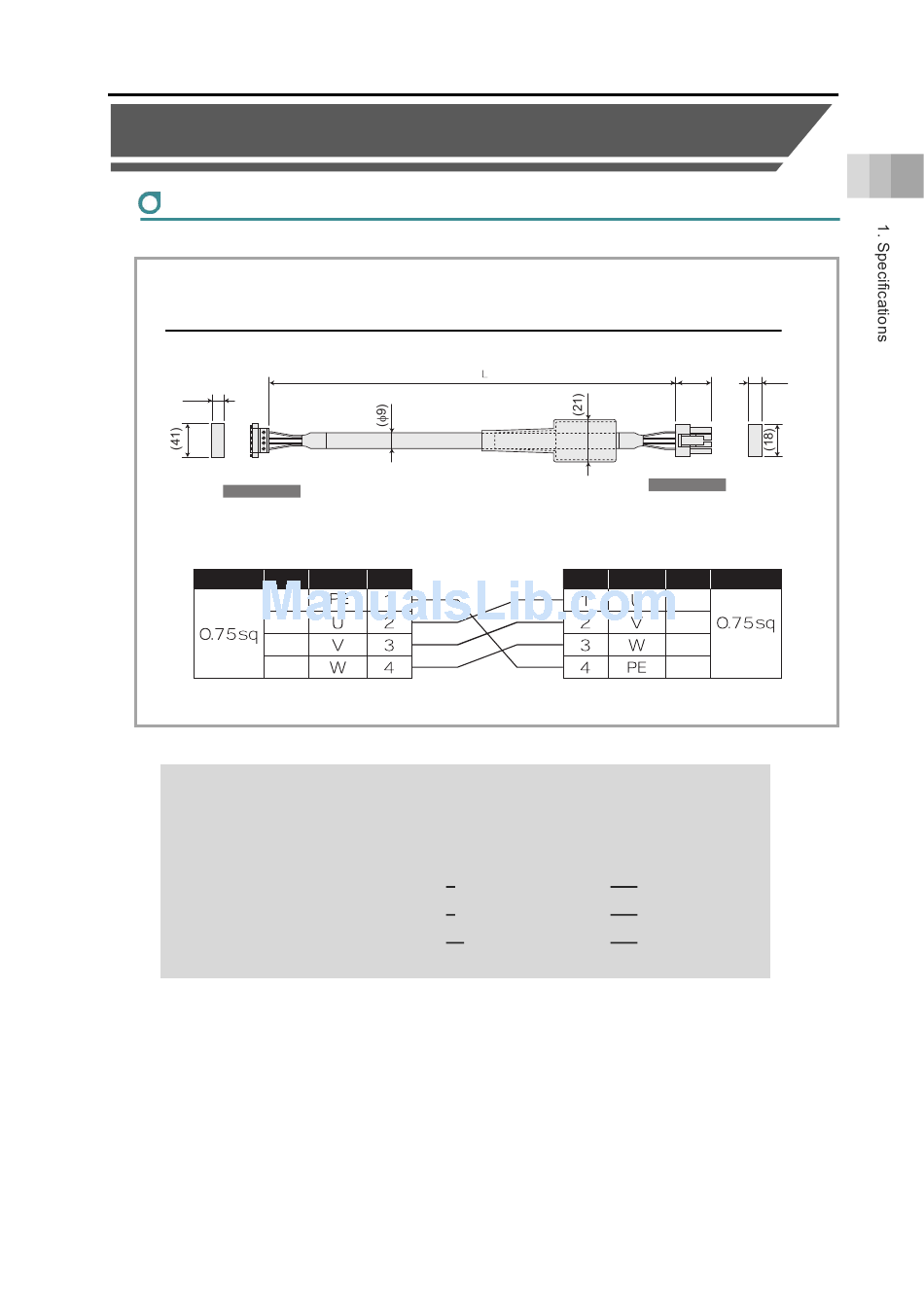

Motor Cable

CB-RCC-MA□□□/ CB-RCC-MA□□□-RB
Model code:
(16)
4
1
(Front View)
Controller Side
Wire Size Color
Green
Red
White
Black
● The cable length should be 1m at minimum and 20m at maximum.
Order can be make in unit of 1m long.
● An example for model codes is as shown below.
Minimum bending radius r = 51mm or more (for movable use)
* It is only robot cable available to use inside the cable track
Signal No.
Cable length 1m → CB-RCC-MA010 (-RB)
Cable length 3m → CB-RCC-MA030 (-RB)
Cable length 10m → CB-RCC-MA100 (-RB)
1.4 Accessories
(20)
1
4
(Front View)
Actuator Side
No. Signal Color Wire Size
Red
White
(Crimped)
Black
Green
(10)
1-114
