IAI ROBO Cylinder RCS4-WRA12C Instruction Manual page 153

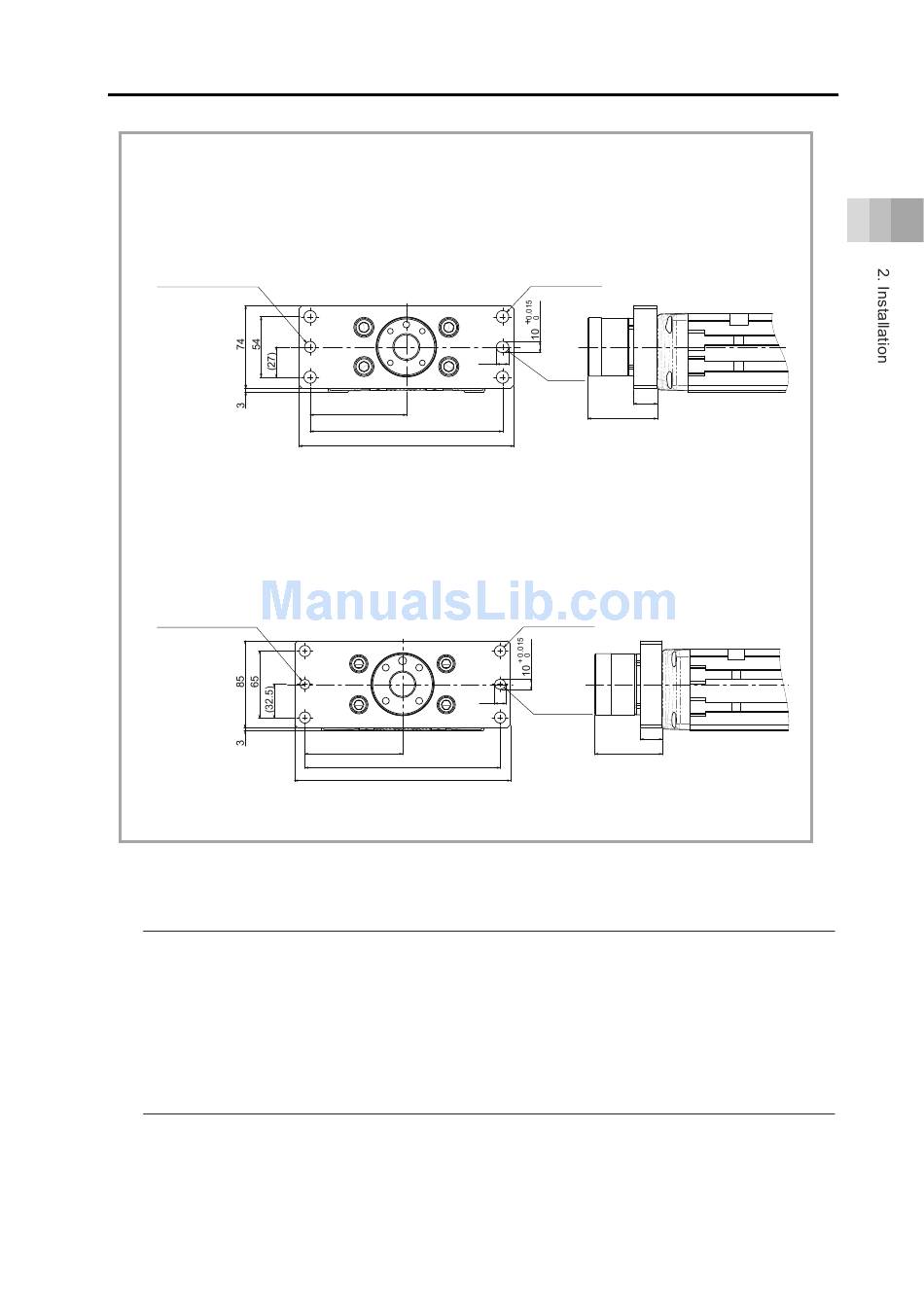

WRA14C and WRA14R
(Note) In the delivery of IAI, the flatness is secured in the way described in the figure.
(Note) It is not available to have WRA14R Stroke 50mm installed as it interferes with the
motor unit.
H7 +0.015
φ10
Through
0
WRA16C and WRA16R
(Note) In the delivery of IAI, the flatness is secured in the way described in the figure.
(Note) It is not available to have WRA16R Stroke 50mm installed as it interferes with the
motor unit.
H7 +0.015
φ10
Through
0
Notice
● Use of high–tension bolts meeting at least ISO 10.9 is recommended.
● Make sure to ensure the same length as the nominal diameter for the effective length of
thread engagement between a screw and a threaded hole when the threaded when the
threaded hole is made of steel and length 1.8 times of the nominal diameter when the
threaded hole is made of aluminum.
11
(85)
170
190
11
(95)
190
210
4-φ11 Through
Oblong
Hole
Through
21
(61.5)
4-φ11 Through
Oblong Hole
Through
21
(65.5)
