1.3 Options

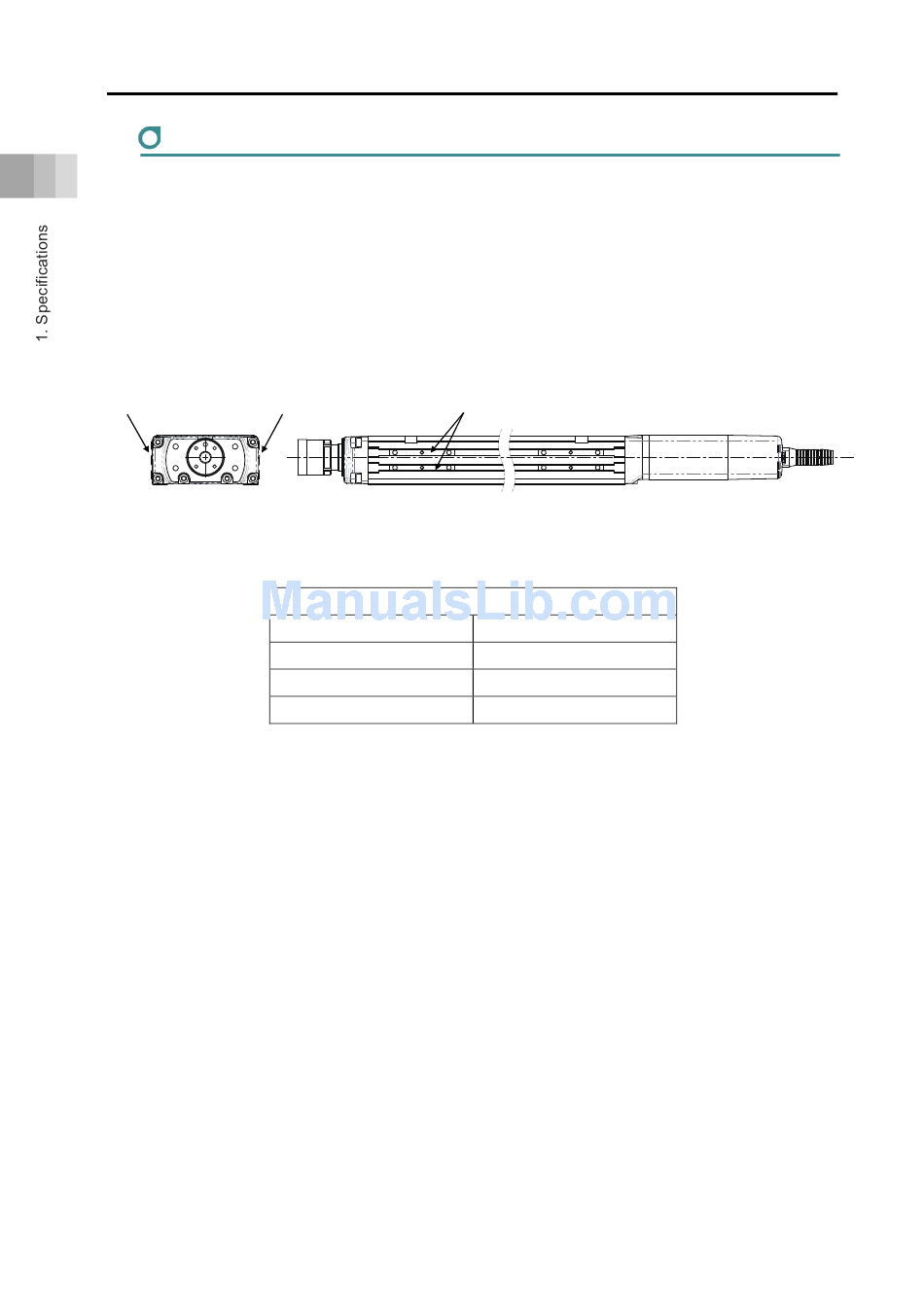

T-Slot Nut Bar (Model Code: NTBL, NTBR)

It is a bar-shaped component to put into the T-slot on the actuator.
For T-Slot Nut Bar (Right) NTBR, it is to be inserted on the right side if you look from the motor
end.
For T-Slot Nut Bar (Left) NTBL, it is to be inserted on the left side if you look from the motor end.
On the T-slot nut bar, there are nut holes at the determined points
[Refer to When Using T-Slot on Side for the dimensions]
Right Side:
Left Side:
NTBR
NTBL
Figure viewed
from rod side
(Note) The installation hole on the top of the base, which crosses T-slot nut bar, cannot be used.
1-111
T-Slot Nut Bar
Model Code of Single Product
WRA10C, WRA10R
WRA12C, WRA12R
WRA14C, WRA14R
WRA16C, WRA16R
RCP6-NTB-WRA10
RCP6-NTB-WRA12
RCP6-NTB-WRA14
RCP6-NTB-WRA16
