2.3 How to Install

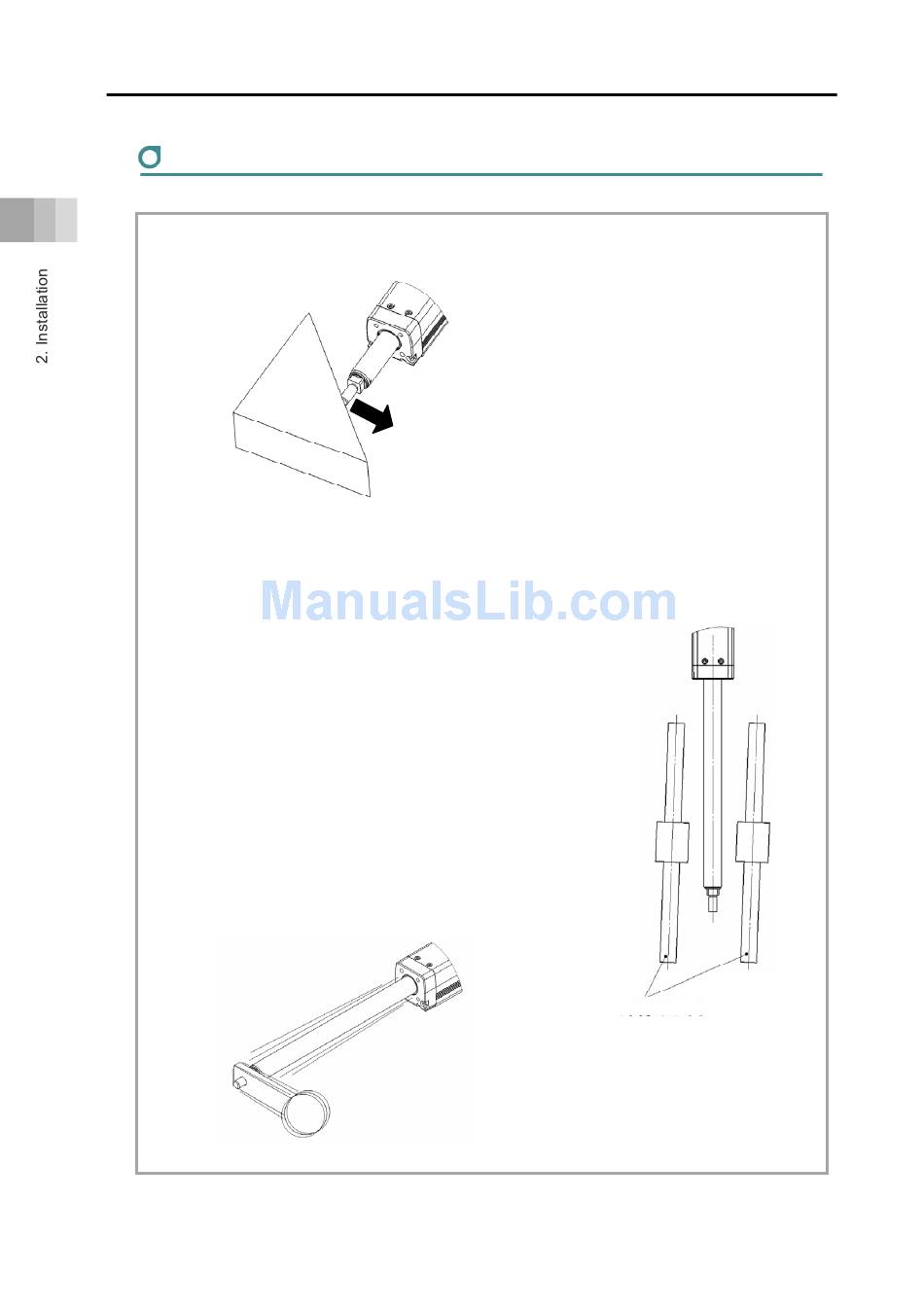

Precautions Regarding the Rod

● When the reaction force against the pressing operation is the side-way force,
make sure it would not exceed the allowable load.
● When connecting the rod to external guides, be careful on the parallelism of the guides
to the rod. When connecting and fixing the rod to external guides, be careful not to apply
excess side–way load to the rod because of the assembly variation. For the connection
of the rod and guides, have a component such as a free joint to accept the assembly
variation.
● The rod may generate vibration in some operation conditions.
Apply guides to control the vibration.
2-23
Be careful on the direction of the reaction force
against the pressing. operation.
External Guide
