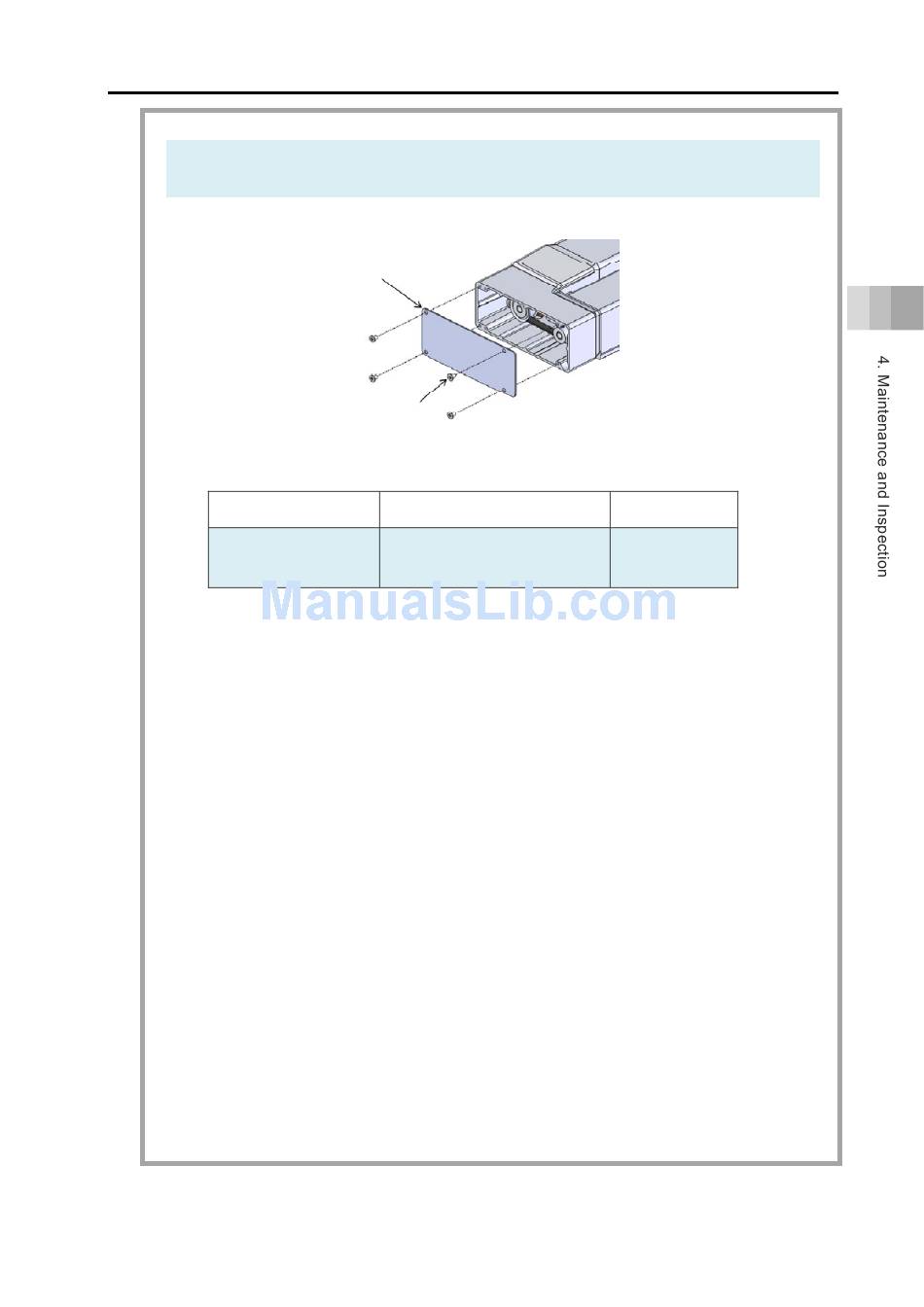

4.6 How to Replace Components
8) Tighten up the pulley cover with the pulley cover affixing screws in the specified
torque.
Pulley Cover
Pulley Cover Affixing Screw
Pulley Cover Affixing Screw Tightening Torque
Tightening
Model
Type of Screws
Torque [N•m]
WRA10R, WRA12R
Cross-recessed Button Head
0.9
Screw (SUS): M3
WRA14R
4-28
