SECTION 7: FUSION CONTROL PANEL
Focus
The Focus selection allows you to manually set the table to the correct height for engraving. With Focus highlighted, use
the Joystick to move the table up or down. The display will show a digital readout of the table position.

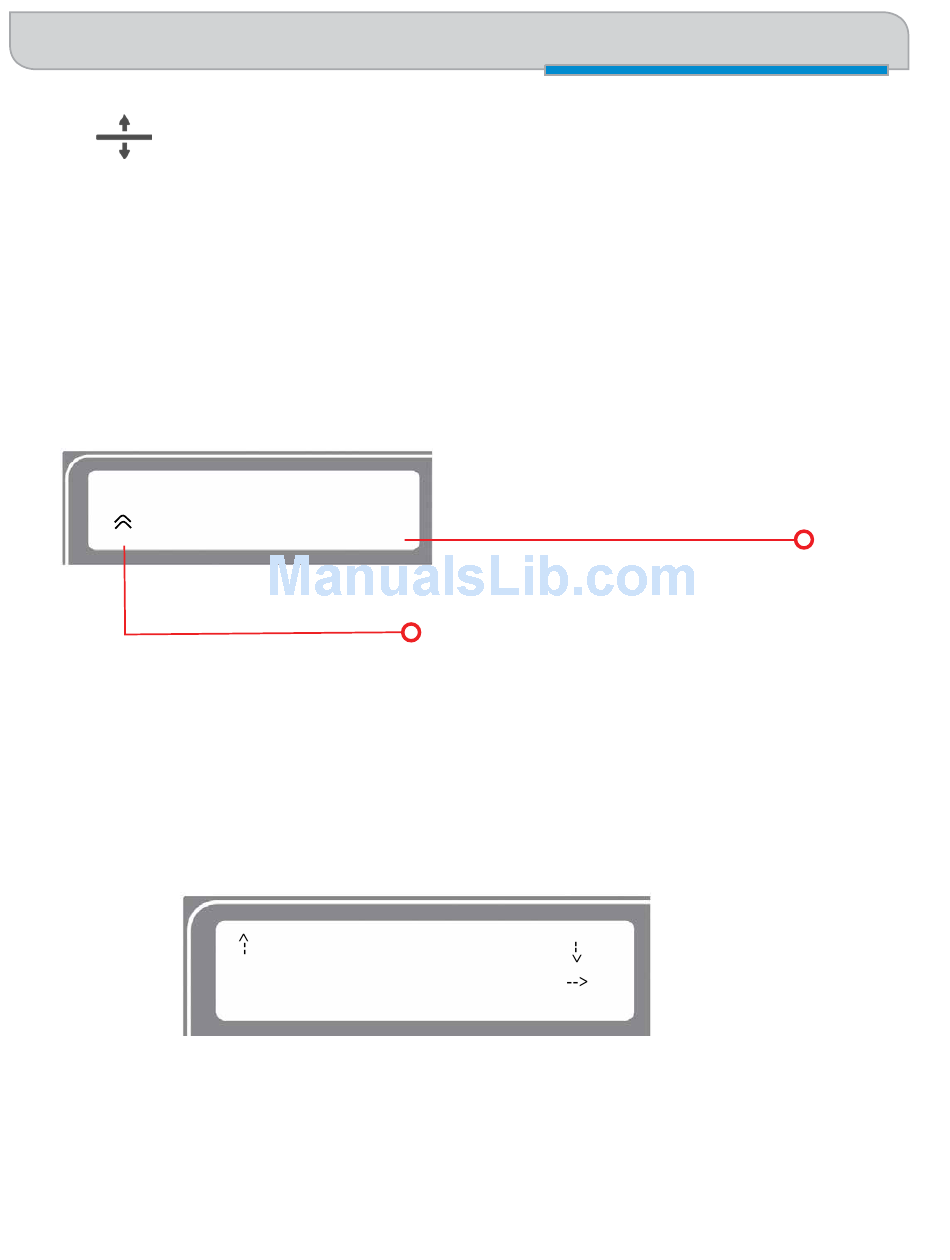

The image below also shows two visual indicators that provide addition functionality to the Focus function:
• The two arrows on the left side of the second line in the display indicate whether you are in "Course" or "Fine" focus
mode. In Course mode the table will move up or down in large increments. In Fine mode the table will move up or
down in small increments.
• Tilt the Joystick left or right to toggle between fine and course movements.
Job: 1. Fusion_test.cdr
FOCUS -0.000
Course or fine movement indicator.
Focus Sub-Menu: New Z-Axis Home Position
The two diamonds on the bottom right of the display indicate that by double center clicking the Joystick you will bring up
a sub-menu that will allow you to set a new or temporary table z-axis Home Position. To set a new Home Position, first
move the table up or down in the focus menu, then double click the Joystick at bring up the sub-menu:
• Up (Go): Tilt the Joystick up to move the table to its default zero/zero Home Position.
• Down (Moveout): Tilt the Joystick down to move the lens carriage out from its upper, left corner position by about
2" (50 mm).
♦♦
GO 0
SET 0
<--
Two diamonds indicates that you will double
click the Joystick to access the sub-menu. One
diamond will display for a single click menu item.
MOVEOUT
RESTORE
- 68 -
