SECTION 11: OPTIONAL FEATURES
7. Center click the Joystick. A flashing cursor will
appear below the number displayed. Tilt the Joystick
up or down to increment or decrement the number
so that it matches the number you recorded above
for the Red Dot Pointer X-axis value.
8. Press the Go key to Save the setting.
9. Now, tilt the Joystick down to scroll to the Y R
Home menu. New installations will show a value of
0.000.
10. Center click the Joystick. A flashing cursor will
appear below the number displayed. Tilt the Joystick
to increment or decrement the number so that it
matches the number you recorded above for the Red
Dot Pointer Y-axis value.
11. Press the Go key to Save the setting.
12. Tilt the Joystick up to scroll back to the Restore XY
Home menu item.
13. Center click to save the new X and Y values.
The carriage will now move back and to the left
to establish a new Home Position. Your Red Dot
Pointer should now be located at its new location.
Once you have set and saved the X and Y Rotary Home
Position you should not have to set it again, but you can
always use the procedure above to adjust your Home
Position.
Note: Many users do not worry about a fixed Home
Position on the clamping style rotary. Instead users find
that each new rotary job requires an entirely different
clamping method than the last and setting a fixed Home
Position just isn't important. Instead, they use the Center-
Center feature in the driver and establish a new Home
Position for each job. This is easy to do.
1. Clamp your cylinder into the Rotary Attachment.
2. Focus on your cylinder.
3. Turn on the Red Dot Pointer.
4. Use the Jog feature to move the red dot to a point
along your cylinder that defines the center point of
your mark.
5. Center click to set that point as your Home Position.
6. Use the Center-Center feature in the driver when you
are ready to print.
For more information on the Center-Center feature please
refer to "Center Engraving" on page 106 in this owner's
manual.
3-Jaw Chuck Rotary Attachment
Setup

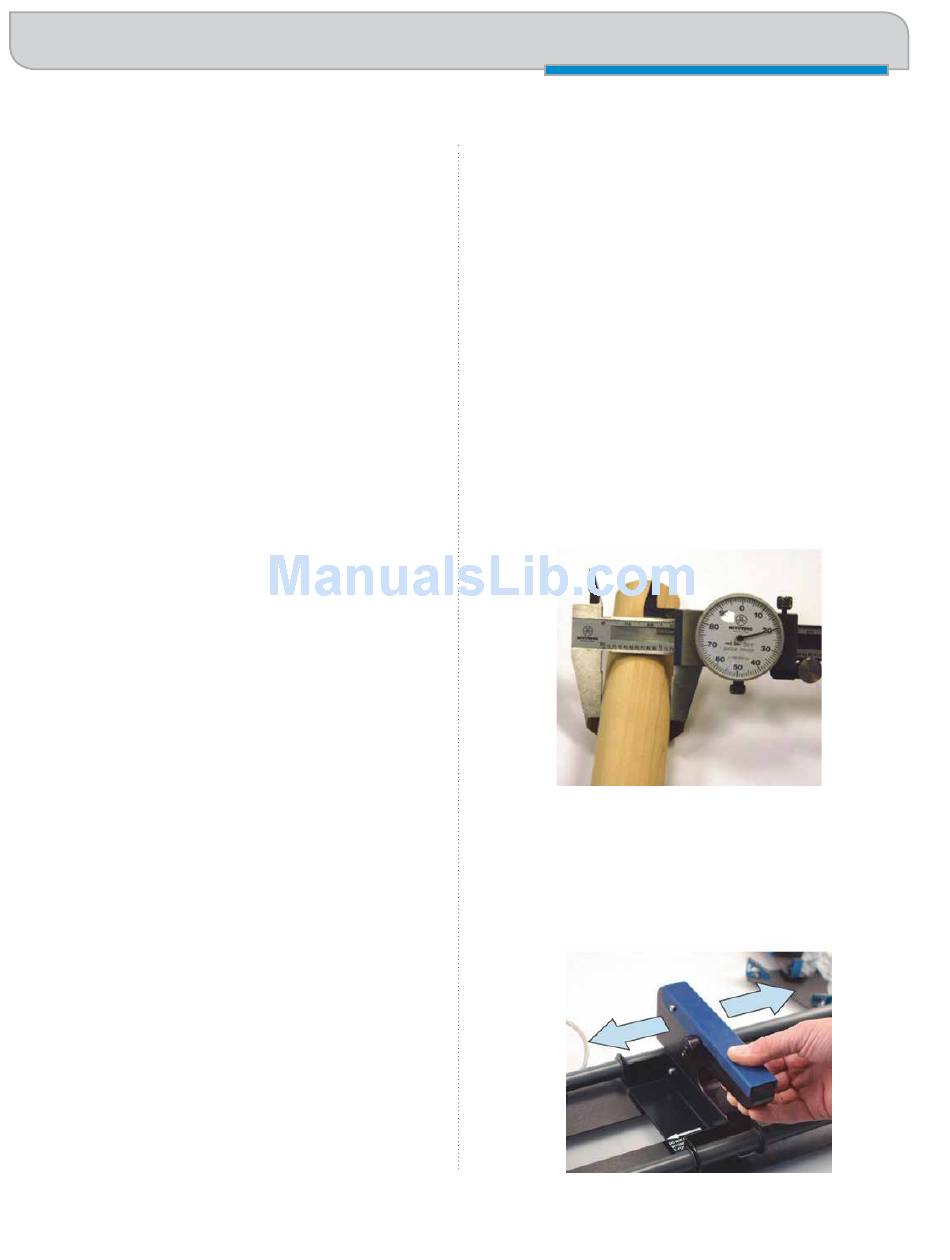

1. Measure your Cylinder: the cylinder diameter will
be used in the print driver.
2. Adjust the Rotary for Cylinder Length: depress
the blue anodized idle-side handle to move the
support mechanism left or right to accommodate
different length cylinders. There are photos later in
this section that show the different configurations
available for the Y-Axis idle side support.
- 128 -
3-Jaw Chuck Rotary Attachment
