SECTION 11: OPTIONAL FEATURES
6. Tilt the Joystick down to scroll to the X Rotary Home menu. New installations will show a value of 0.000.
7. Center click the Joystick. A flashing cursor will appear below the number displayed. Tilt the Joystick up or down
to increment or decrement the number so that it matches the number you recorded above for the Red Dot Pointer
X-axis value.
8. Press the Go key.
9. Use the Joystick to scroll down to the Y Rotary Home menu. New installations will show a value of 0.000.
10. Center click the Joystick. A flashing cursor will appear below the number displayed. Tilt the Joystick to increment
or decrement the number so that it matches the number you recorded above for the Red Dot Pointer Y-axis value.
11. Press the Go key.
12. Use the Joystick to scroll back up to the Restore XY Home menu item.
13. Center click to save the new X and Y values. The carriage will now move back and to the left to establish a new
Home Position. Your Red Dot Pointer should now be located at the front center of the black bumper.

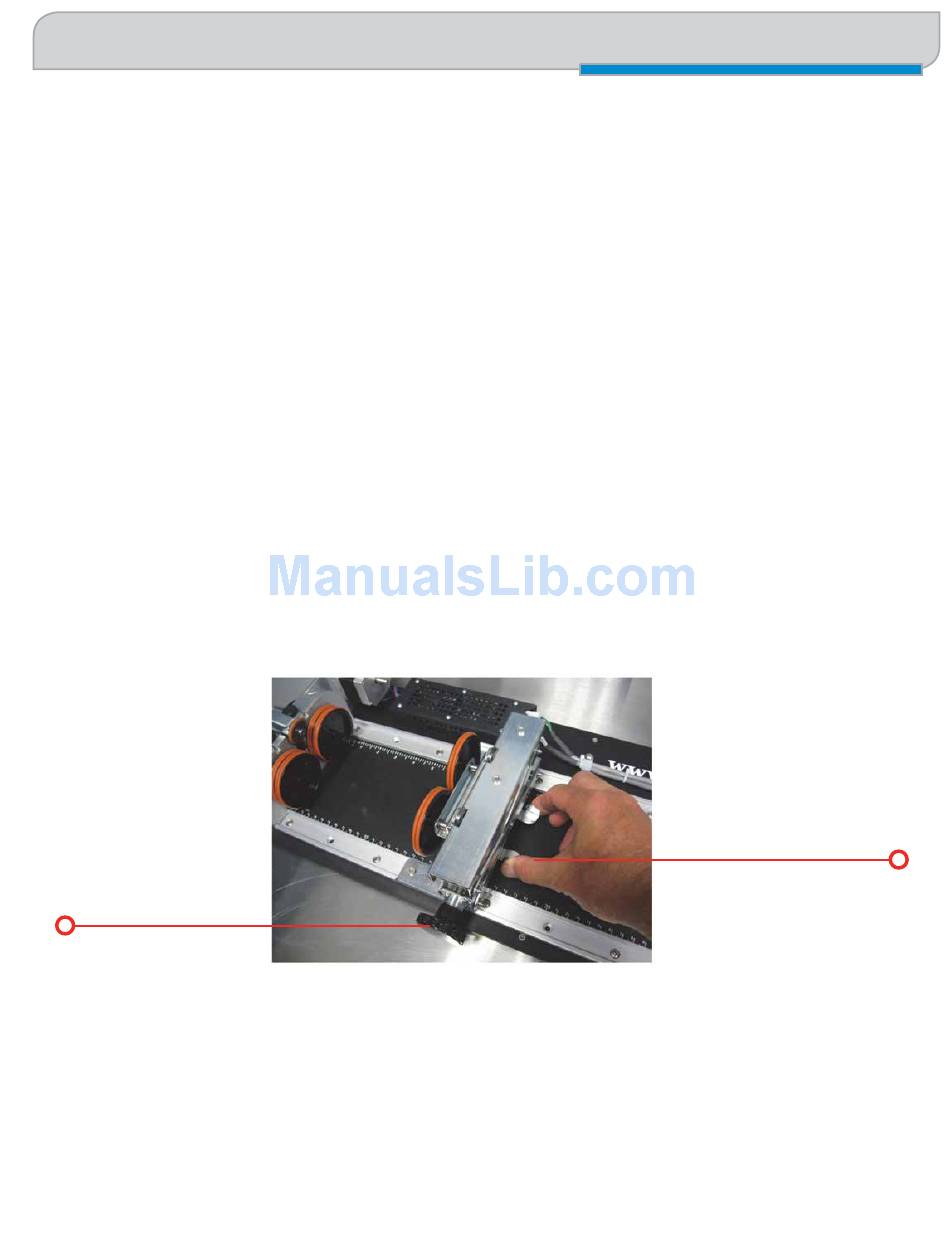

Rim-Drive Rotary Setup
The wheels on the left are the drive wheels which spin the cylinder. The wheels on the right are for support. The right side
wheels are mounted on a scissor jack so they can be raised or lowered to level the top surface of your cylinder with the
X-beam. The scissor jack can be moved left and right to accommodate cylinders of different lengths.
Rotate the knob to lift or
lower the scissor jack.
- 119 -
Fusion Rim-Drive Rotary Attachment
Squeeze the tabs to move the
scissor jack left and right.
