SECTION 11: OPTIONAL FEATURES
Initial Setup (Setting Home: First time use only)
New installations may need to establish the Rotary Home Position.
Install the rotary and power up the system. The X-beam will go through its standard power up sequence and will come to
rest over the rotary. Turn on the Red Dot Pointer from the Control Panel (you may need to raise the table to focus the Red

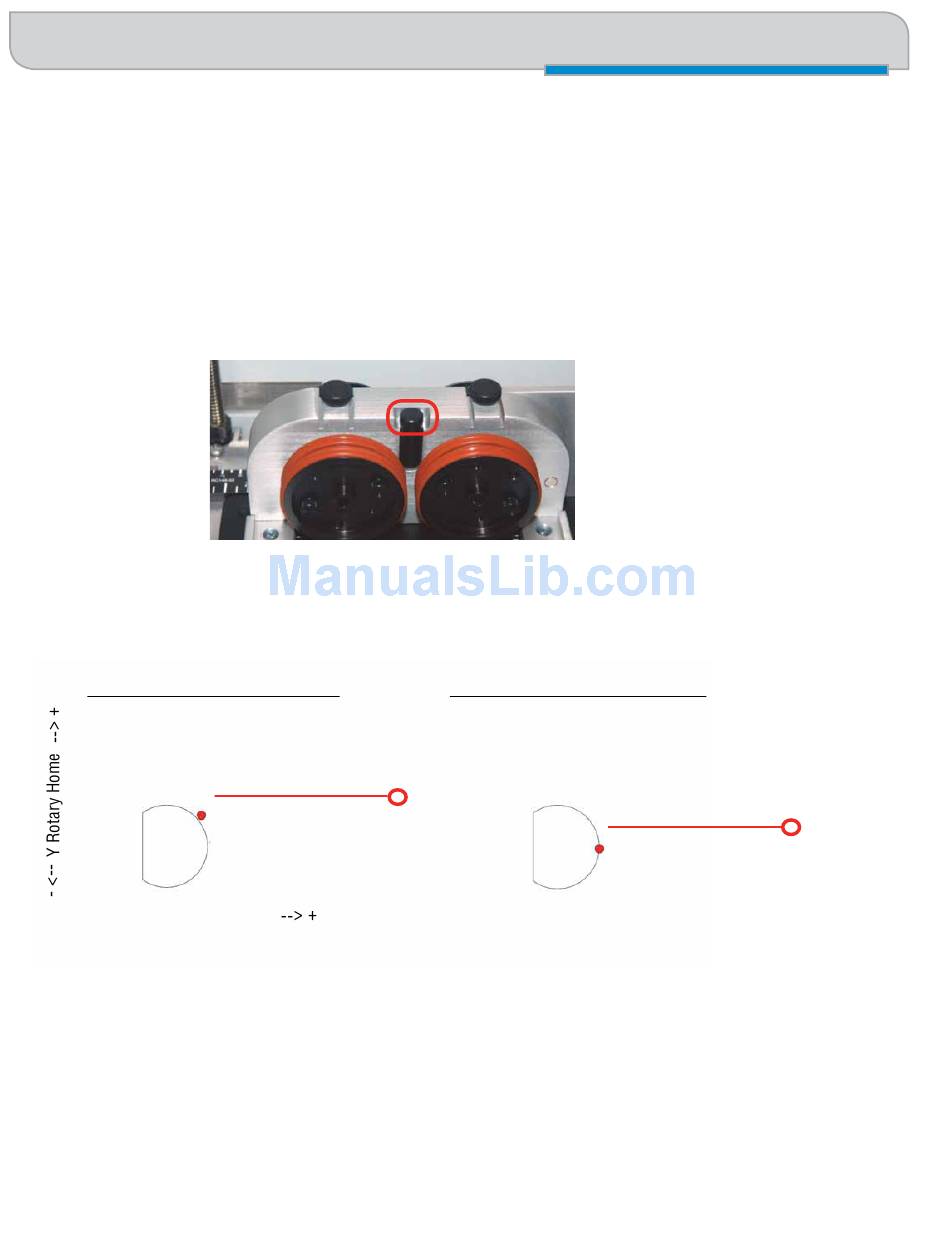

Dot Pointer). The red dot will show you the location of your Home Position. For proper operation, the Home Position
should be at the front edge of the black bumper as shown below. If your red dot is not at this location, you will need to
adjust the X and Y axis settings to establish the correct rotary Home Position.
To establish the Rotary Home setting at the front of the black bumper we will use the Red Dot Pointer to show us where
our Home Position is and then how far we need to adjust our settings. Once you have set and saved the X and Y Rotary
Home Position you should not have to set it again.
Home Position in the Wrong Position
- <--
X Rotary Home
1. Turn on the Red Dot Pointer from the Fusion Control Panel.
2. Go to Jog on the Fusion Control Panel.
3. Use the Joystick to move the carriage so that the Red Dot Pointer is at the front edge of the black bumper.
4. The LCD on the Control Panel shows a digital readout of the location of the Red Dot Pointer. The number displayed
on the left is the X-axis, the number on the right is the Y-axis. Write down these two numbers including the plus
or minus sign associated with each.
5. Go to Settings on the Fusion Control Panel.
Move the Red Dot
Pointer down and to
the right.
Home Position in the Correct Position
- 118 -
Fusion Rim-Drive Rotary Attachment
The Red Dot Pointer has
been moved to the front
edge of the bumper.
