SECTION 11: OPTIONAL FEATURES
After running the Calibrate Overhead Cameras
routine, you must run the Calibrate Lens
Routine and the Calibrate Stitching Routine.
Move on to the Lens Camera Calibration.

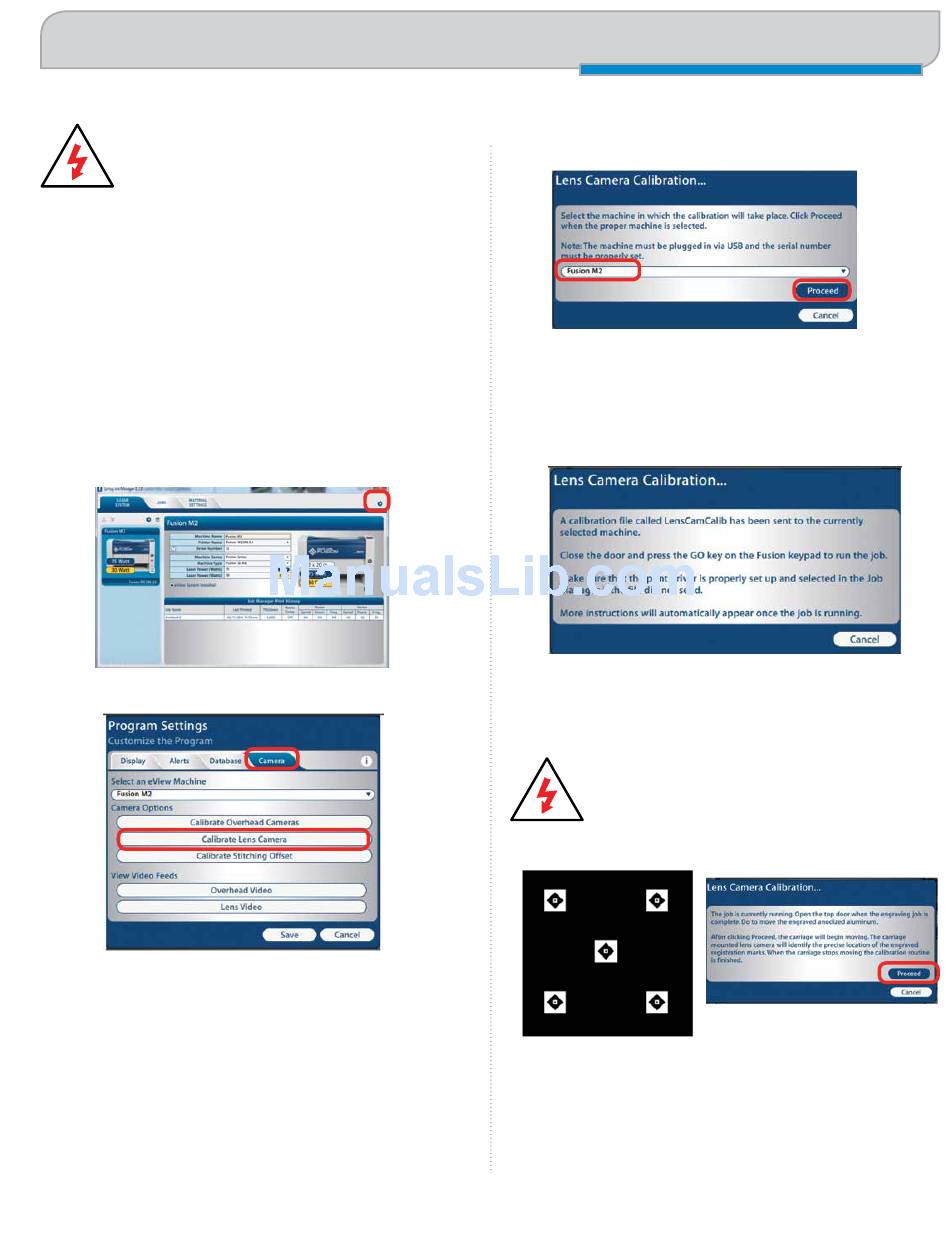

2) Lens Camera Calibration
The second step requires the calibration of the camera
located at the lens carriage. The lens carriage camera
takes the images from the overhead camera and uses
them to precisely define the location and orientation of
your artwork on the laser bed.
1. In the Job Manager, click the Settings icon.
2. Click the Camera tab then, Calibrate Lens Camera.
3. This process engraves five location points onto a
piece of anodized aluminum. You will need a 6" x
6" (152.4 x 152.4 mm) or larger piece of anodized
aluminum or other very high contrast material (such
as black and white plastic) to complete this process.
4. Place the aluminum into the upper left corner of the
laser bed.
5. Select your machine and click the Proceed key.
6. Clicking the Proceed key sends a job titled
"LensCamCalib" to your laser. Close the top door
and press the Go key on the Fusion keypad to run
the job.
7. The job engraves five specially designed registration
marks on the anodized aluminum piece.
Once the engraving is complete, open the
door, but do not touch or move the
engraving until all of the steps below have
been completed. Press the Proceed key.
- 143 -
eView Camera Module
