SECTION 11: OPTIONAL FEATURES

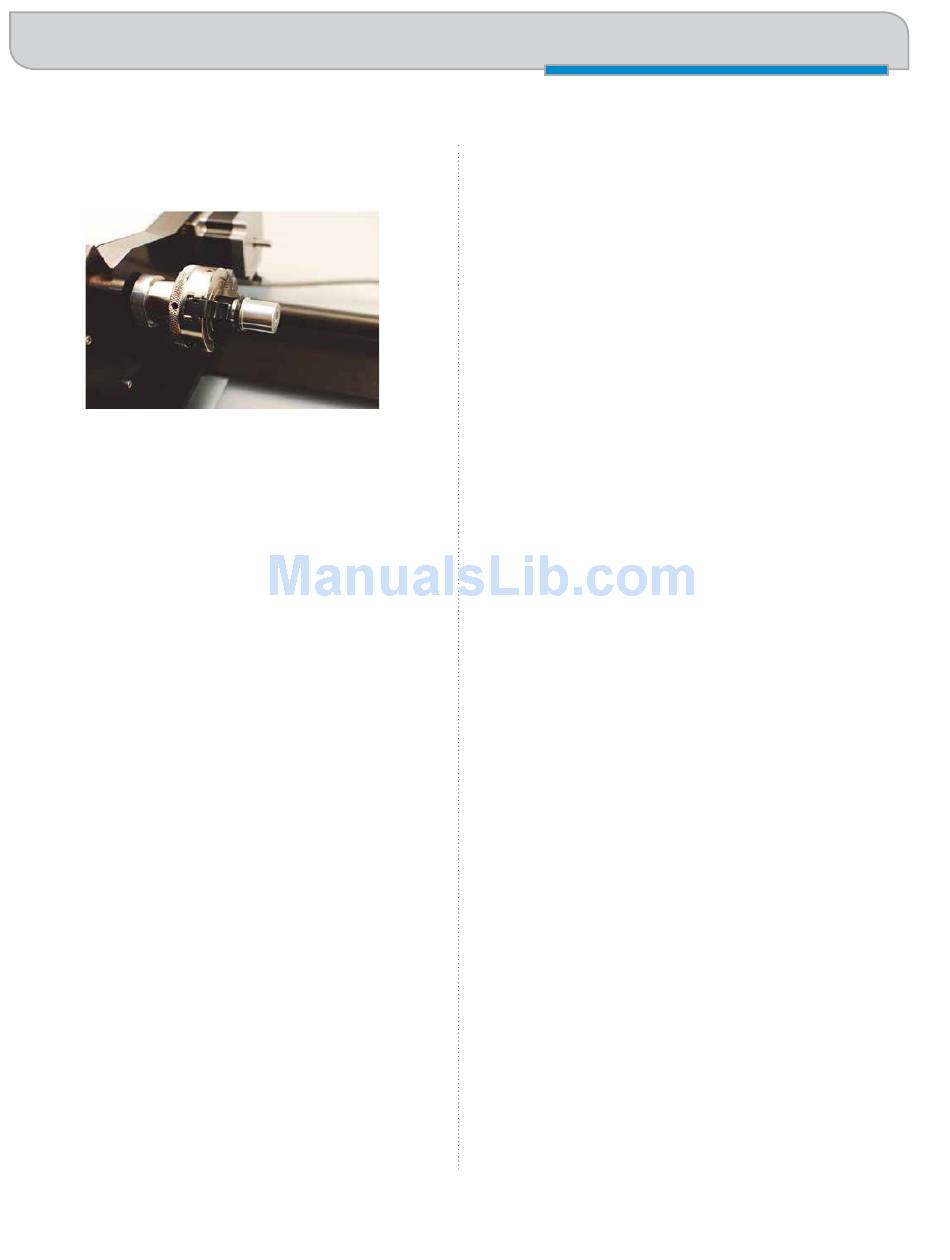

The centering fixture is used to support small diameter
parts that sag when held in place using only the 3-Jaw
Chuck.
Some parts do not need the idle-side centering fixture for
support and can be held using only the 3-Jaw Chuck.
3-Jaw Chuck Quick Start Guide
1. Lower the table far enough to accommodate the
Rotary Attachment.
2. Turn off the machine.
3. Install the 3" lens.
4. Plug in the Rotary Attachment and position it in the
upper left corner of the table.
5. Power up your laser.
6. Set up your artwork.
7. Print, and go to the Preferences window to set your
laser parameters
• Select Center-Center engraving mode.
• Deselect Auto Focus.
• Select the 3-Jaw Chuck option.
• Input your cylinder diameter.
• Set your Speed, Power, and other laser
parameters.
• Send the job to the laser.
8. Focus - Most users prefer to manually focus when
using the 3-Jaw style rotary.
• Press the Focus key on the Control Panel.
• One second after pressing the Focus key the
carriage will move back and to the right which
places the manual focus gage directly over your
cylinder.
• Use the Joystick to move the table up and
down to focus on your cylinder.
• You can move the carriage by hand to focus
anywhere along the length of your cylinder.
You can also move the entire X-beam front and
back by hand when the rotary is installed. Use
caution when moving the beam by hand.
• Press any menu key to exit Focus. The carriage
and beam will move back to their Home
Position.
9. Set Home
• Press the Jog function on the Control Panel.
• Turn on the Red Dot Pointer.
• Use the Joystick to move the pointer to the
point on your cylinder where you want your
Home Position to be located.
• Center click the Joystick to set a Home
Position.
• If desired, double center click to bring up the
standard Jog sub-menu.
10. Close the top access door.
11. Press the Go key to start your job.
