SECTION 11: OPTIONAL FEATURES
Setting Focus with the Rotary Attachment
With your cylinder in place on the Rotary Attachment, place the focus gauge on the lens carriage and then scroll to Focus
mode on the Fusion Control Panel. Double center click the Joystick to bring up the Focus submenu.

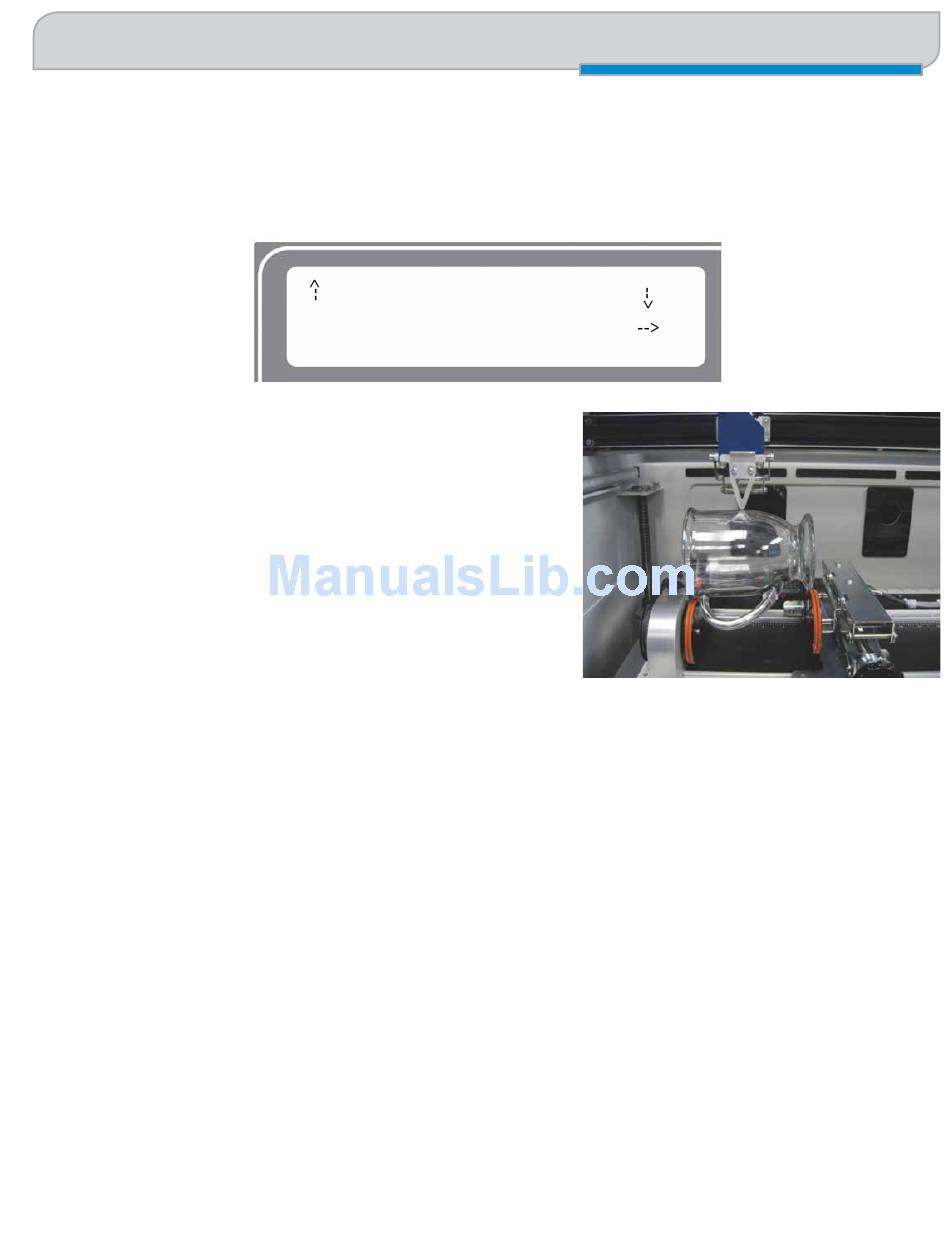

The sub-menu shows that a down tilt of the Joystick will "Moveout"
the X-beam. The Moveout command will move the lens carriage back
from Home so that the focus gauge is centered over the cylinder.
In addition to moving the lens carriage back the Moveout command
also disables the X-motor. This allows you to move the carriage by
hand in the X-axis (left to right). The Moveout function allows you to
easily focus along the entire length of your cylinder. By moving the
lens carriage back and forth and adjusting the scissor jack you are able
to focus along the entire length of your cylinder. The following photo
shows a typical setup for focusing on a mug with a handle. Notice that
we used the scissor jack to raise the right end of the glass.
When you are finished focusing press the Reset key on the Control Panel. Pressing Reset will send the lens carriage back
to its standard Home Position at the front of the black bumper. You are now ready to start the job.
GO 0
SET 0
<--
MOVEOUT
RESTORE
- 121 -
Fusion Rim-Drive Rotary Attachment
