Pin Table

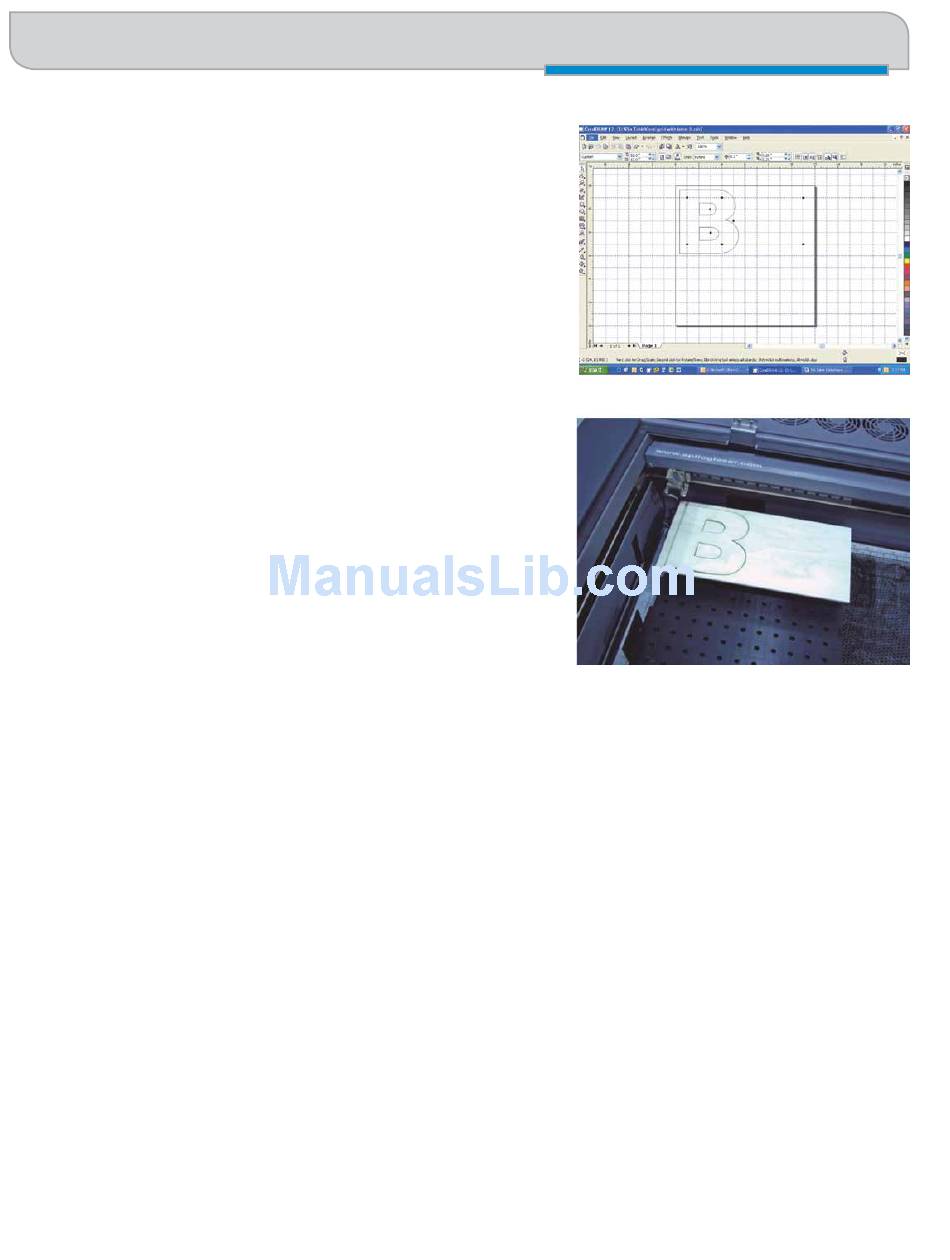

Set up your artwork on the grid so that the vector lines do not cross the
path of any of the pins. The small black circles within the letter "B" show
the location of the pins. Notice that you do not need to place pins in every
available space, they just need to be placed where they will support the
work piece. For this piece we have also supported the middle of the "B" to
show how to support the waste pieces if you do not want them to fall out
after cutting. The circles outside of the "B" are to support the long piece of
wood that we are going to use for cutting.
The next photo shows the Pin Table in the machine with the letter "B" cut
out and resting on the pins.
