Epilog Fusion M2 32 Manual page 151

SECTION 11: OPTIONAL FEATURES

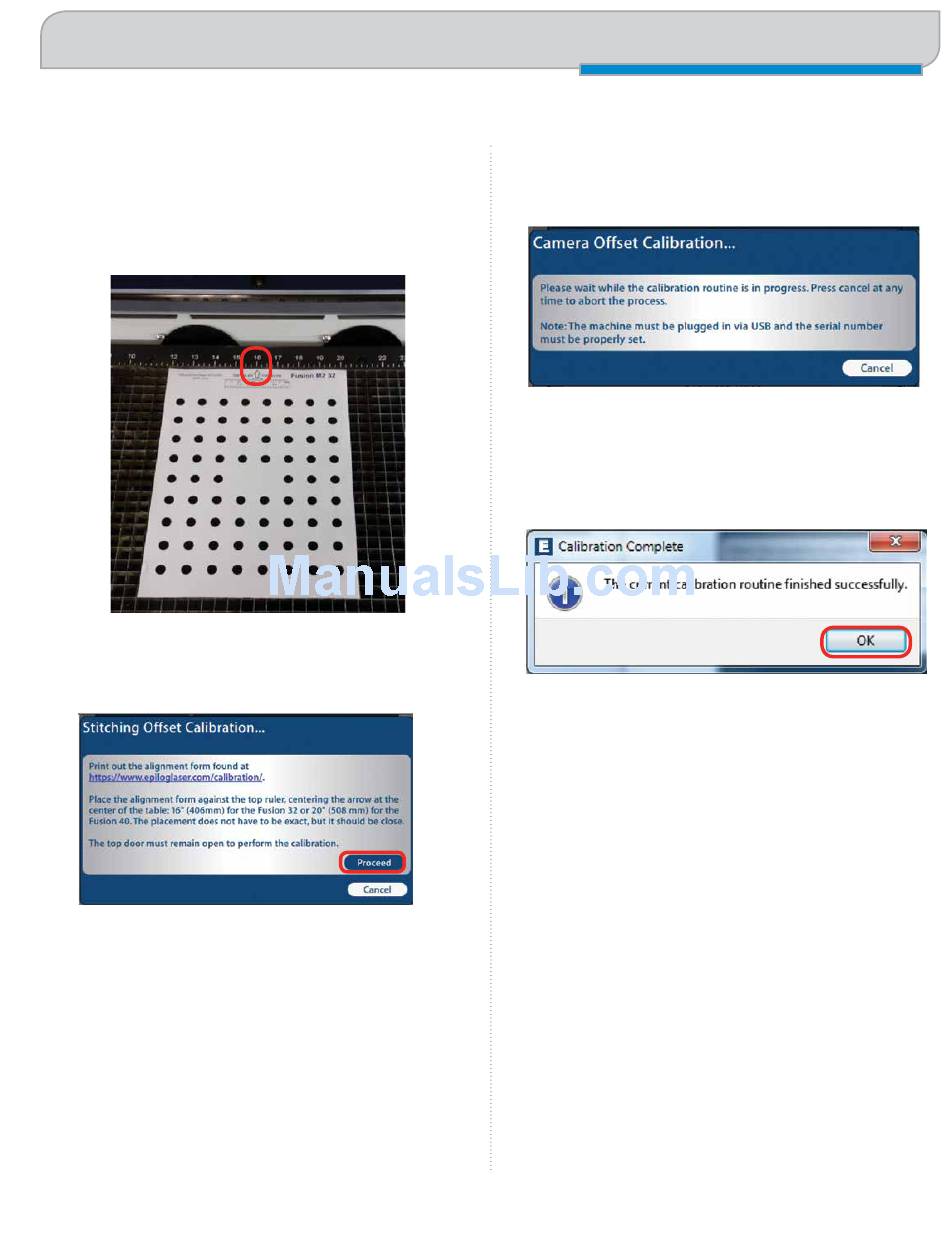

4. Place the arrow on the calibration printout up
against the top ruler at the middle of the table. This
routine identifies the size and location of the circles
on the printed paper to perform the stitching
calibration. You do not need to remove the vector
grid to perform this routine.
5. After properly placing the calibration form, click the
Proceed key.
6. The carriage will automatically move back and the
table will move to its focus position before the
calibration routine begins. This routine only takes a
few seconds.
7. When the stitching calibration is complete, the
Finished window will pop up. Click OK and the
calibration routine is complete. Press the Reset key
on the Fusion keypad to return the carriage to its
standard Home Position.
- 145 -
Dual Source Option
