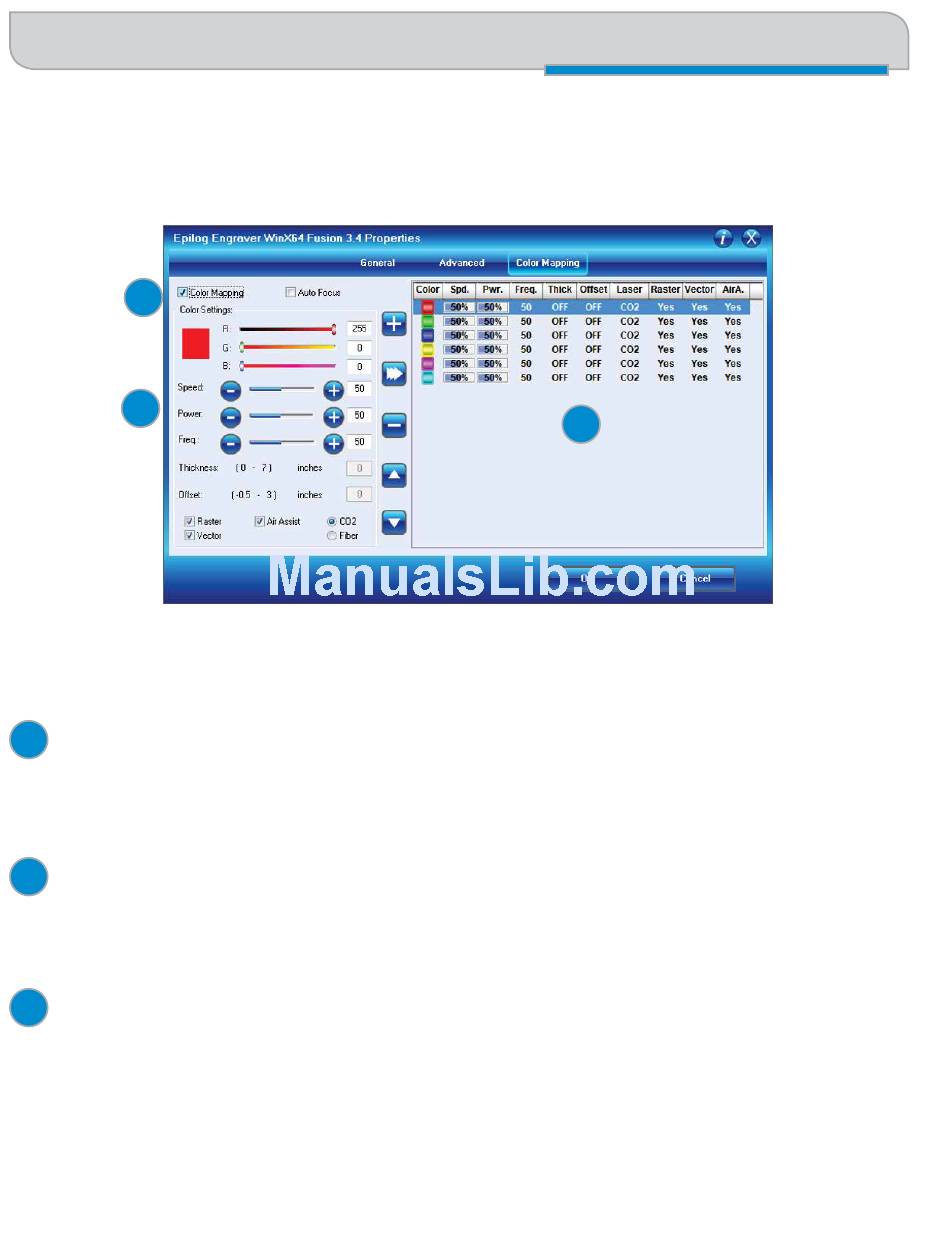

Using Color Mapping
Enable Color Mapping
1
When this check box is selected, the laser will use the settings assigned to each color. For any colors that are in your
artwork, but not in the color mapping settings, the General settings will be used.
2
Adjust Settings
Use the slider bars to set any RGB color and create the laser parameters. Adjusting the settings does not actually change
the values. Select the Right Arrow key to finalize the settings.
Color Map Summary
3
The Color Map Summary area is located on the right side of the window and offers a visual display of all of the color
mapped settings.
1. To use Color Mapping, start by enabling the Color Mapping section by clicking the check box in the upper, left
corner of the screen.
2. Select a color in the Summary area. We selected the color Red.
3
