SECTION 11: OPTIONAL FEATURES

Fusion Rim-Drive Rotary Attachment

The optional Fusion Rim-Drive Rotary Attachment allows you to mark and engrave on cylindrical objects.
Firmware Preparation
Make sure your Fusion firmware is version 1.0.0.7 or higher to operate the Rotary Attachment. The firmware version is
one of the menu items under the Settings menu items on the Fusion Control Panel. To upgrade your firmware go to the
Epilog web site at www.epiloglaser.com/tech-support/epilog-drivers.htm. Further instructions are available in "Section :
Upgrading the Operational Firmware" on page 155.

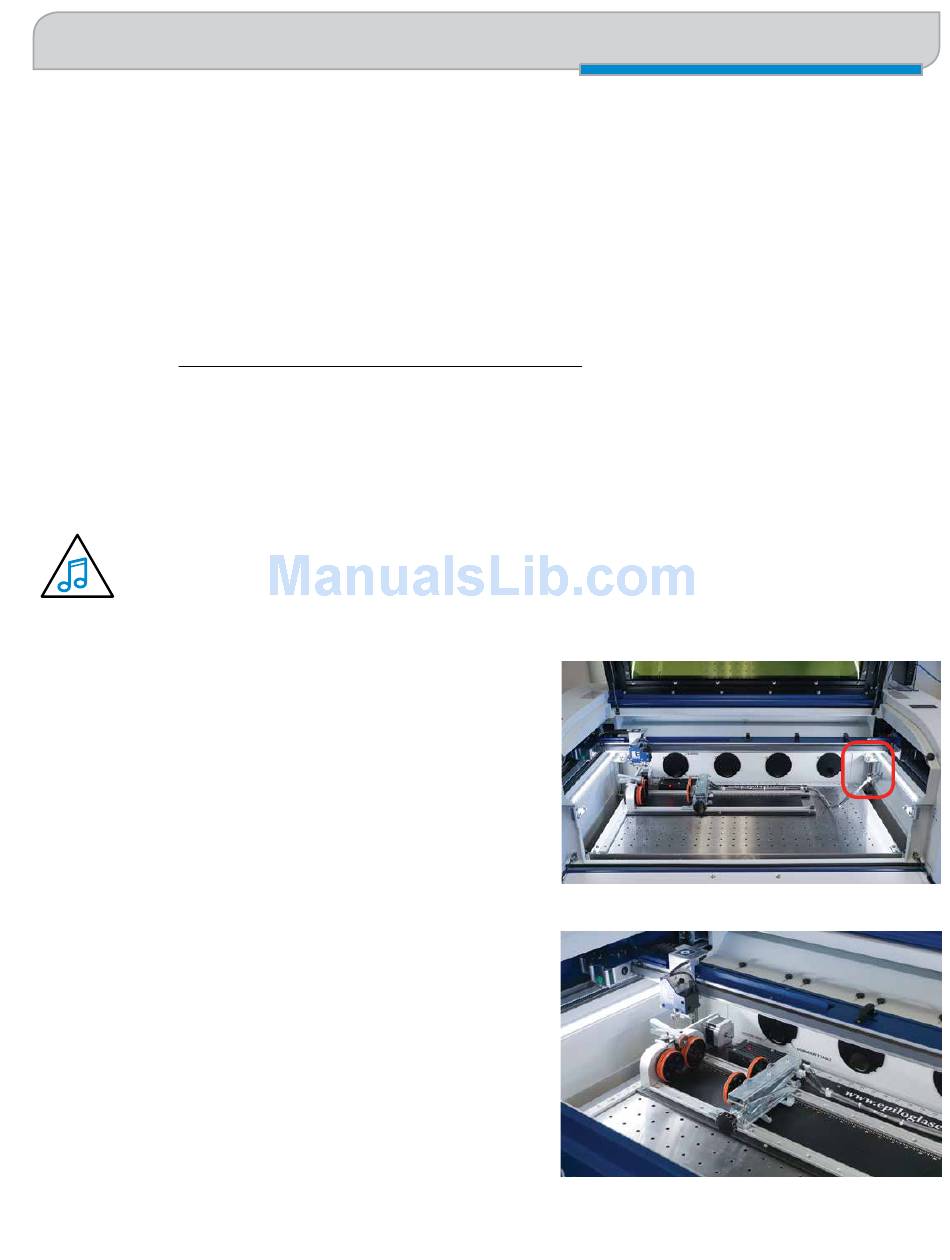

Rotary Attachment Installation
Lower the engraving table far enough so the Rotary Attachment will not interfere with the lens carriage.
An important note: Turn off the power to the engraver. It's important that the laser system is turned off before
installing (or removing) the Rotary Attachment.
Place the Rotary Attachment in the upper left corner of the table so that the baseplate is positioned against the sides of the
left and top rulers. The rotary rests on the table against the rulers
and does not need to be locked in place.
With the Fusion powered off, mate both cable connectors to the
connectors located at the right side of the cabinet as shown in the
photo.
Once the Rotary Attachment cables are connected you can power on the laser system. The Fusion senses that the Rotary
has been installed. During machine initialization the lens carriage
will find its new Home Position over the center of the Rotary
Attachment, as shown to the right.
- 117 -
Fusion Rim-Drive Rotary Attachment
