SECTION 10: SYSTEM FEATURES
Color Mapping
Using Color Mapping to Adjust Focus
To engrave at multiple focal points on an object with several levels, the Color Mapping feature is very useful. In the
following example we want to mark on both Surface 1 and Surface 2 on the following part where Surface 1 is .5" (12.7
mm) high and Surface 2 is .3" (7.62 mm) high.
Surface 1
.5"
Surface 2
.3"

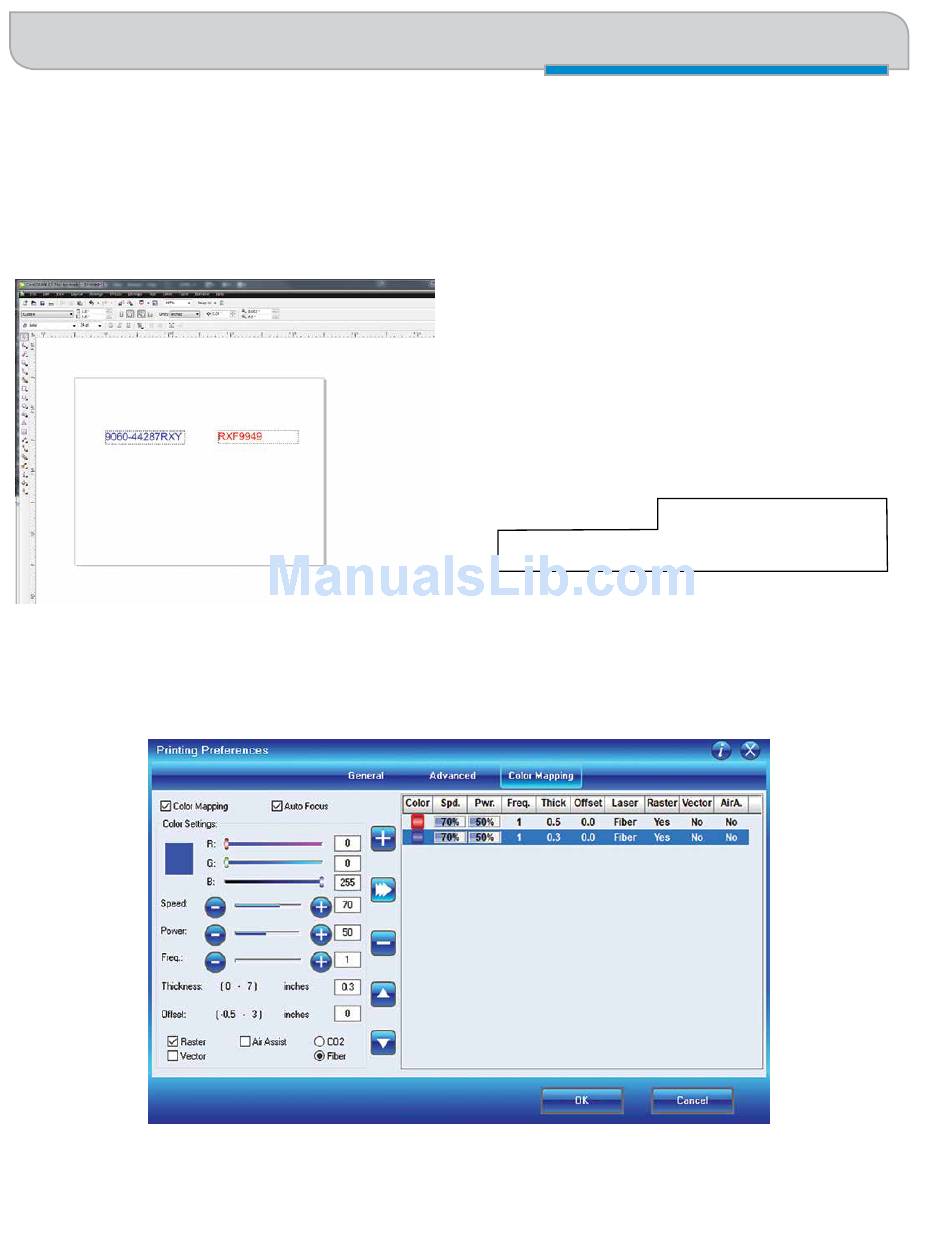

We will set up our artwork so that we engrave the Model Number on Surface 1 in red and the Serial Number on Surface 2
in blue. For this job, the only change we will make is to the Focus distance, everything else will be the same. In the Color
Mapping tab you can see that we've set the red to a thickness of .5" (12.7 mm) and the blue color mapped layer to a
thickness of .3" (7.62 mm).
- 102 -
