SECTION 11: OPTIONAL FEATURES
Rotary Removal
1. Turn off power to the laser.
2. Open the door.
3. Depress the release tabs on the connectors and
unplug the connectors.
4. Remove the Rotary Attachment.

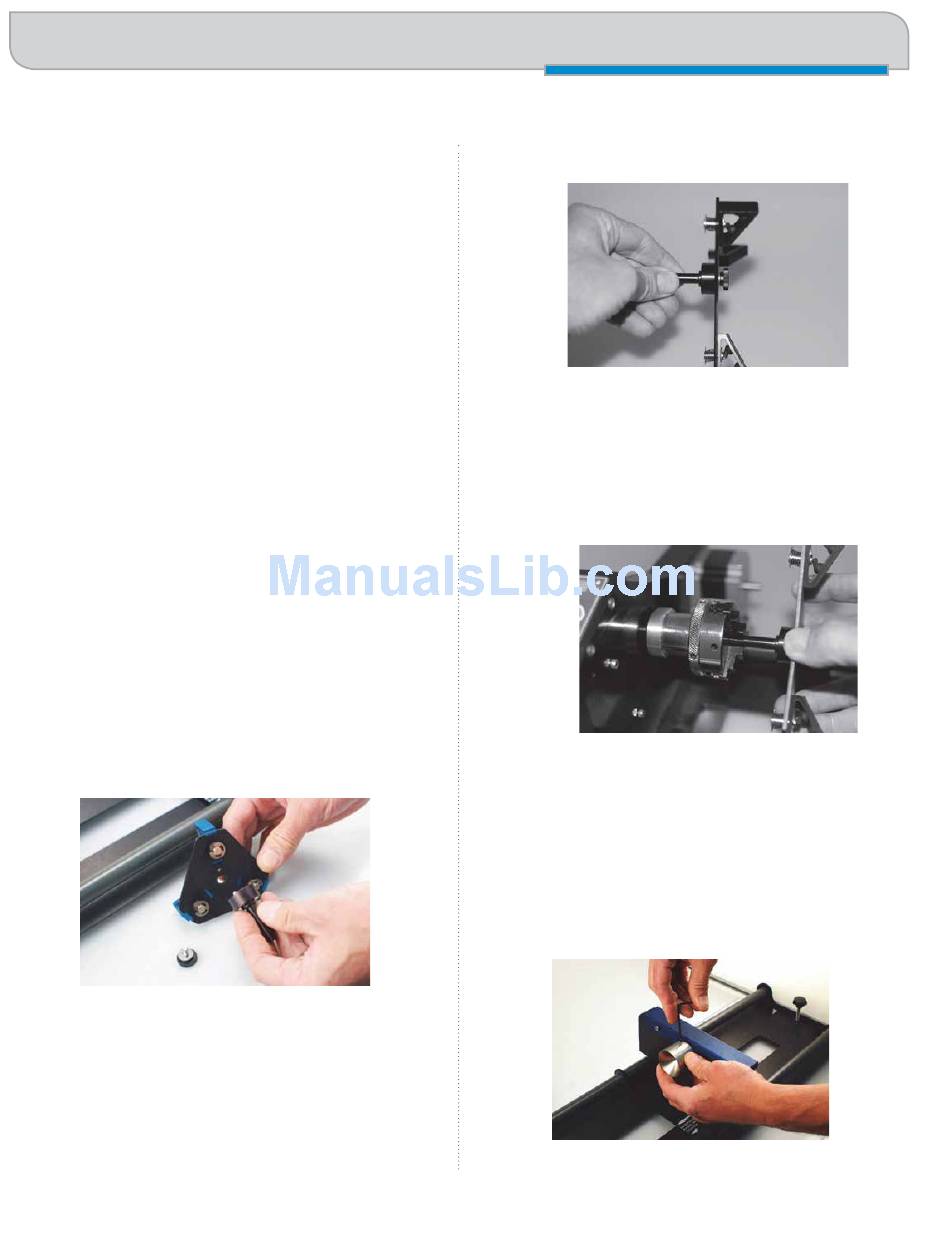

Using the Fixture plates and
additional rotary components
The 3-Jaw Chuck Rotary comes with additional
attachments that make it easy to hold different sized
and shaped cylinders. The photos below show different
configurations that can be used to hold a wide variety of
cylinders. The components can be mixed and matched.
There is no single, correct method of holding a cylinder.
Attaching the Fixture Plate to the
Chuck
Secure a large or small fixture plate to the spindle using
one of the plate thumb screws.
The fixture plate will look like the photo when the spindle
is assembled.
Slide the spindle into the chuck. Make sure the spindle
is fully inserted into the chuck, then secure it using the
chuck tightening pins.
Be sure to check that your Home Position is where you
need it once the fixture plate has been installed.
Attaching the Idle-Side Centering
Fixture
The idle-side centering fixture is used to hold small
diameter cylinders in place. It can be removed if the
fixture plates are required for larger diameter cylinders.
Remove or install it using the supplied hex wrench.
- 132 -
3-Jaw Chuck Rotary Attachment
