Attach an Ethernet cable from a LAN port on the router to the Network connection on the back of the
3
Fusion.
Attach the USB cable from the USB connection on the back of the Fusion to a USB connection on your
4
computer.
Setting Up the Print File

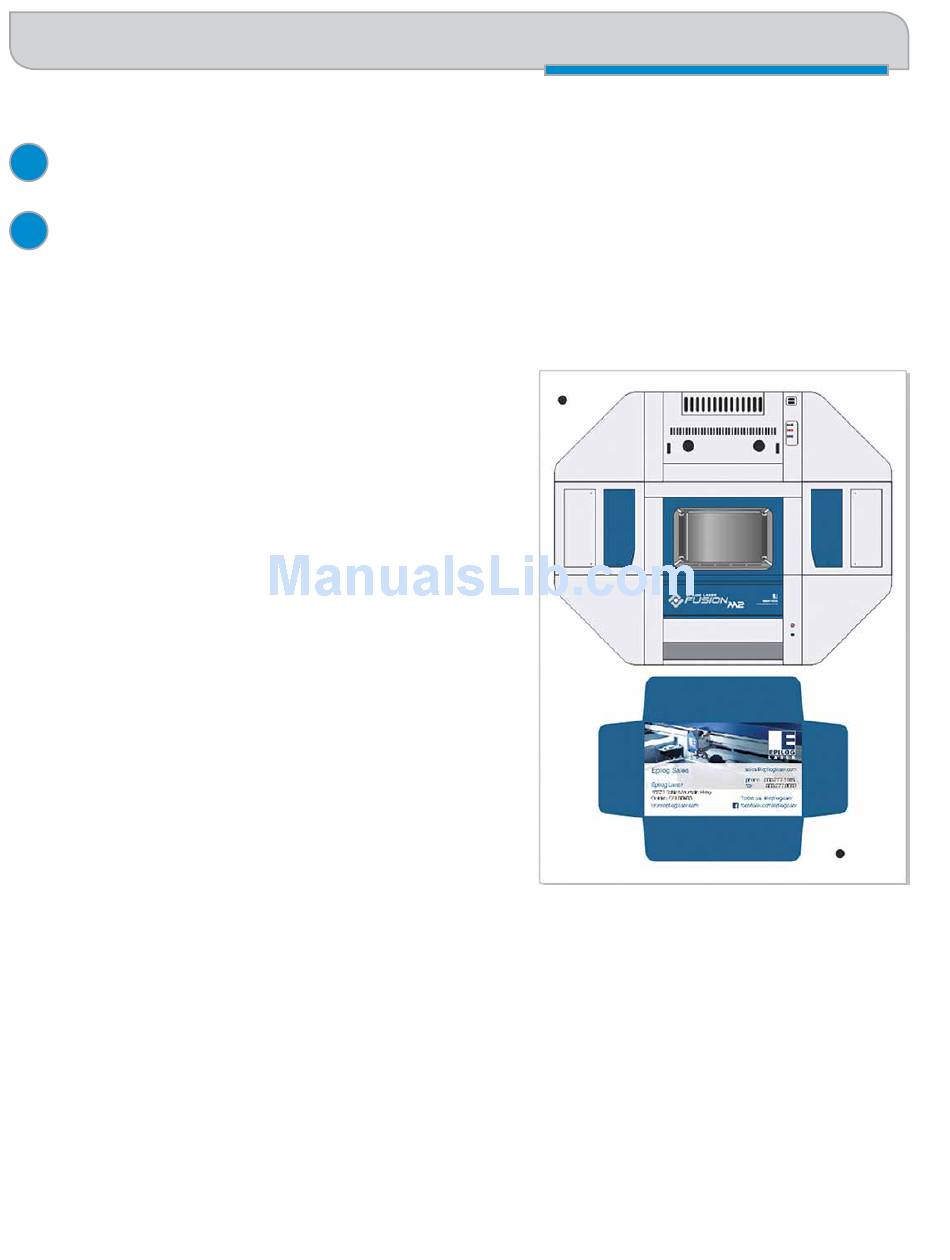

Start by printing your artwork on acrylic, paper, cardstock, fabric,
etc. On the printed artwork, include two registration marks that will
allow the camera system to detect where on the laser bed your piece
is located.
1. Each registration mark should be a 1/4" (6.35 mm) black, filled
circle. Larger circles can be used, but .25" is the default.
2. The registration marks are vital to your printed artwork and
provide a common point of reference between your graphic file,
your printed material and the location of your printed material
on your laser bed.
3. There are no hard and fast rules governing where the
registration marks should be placed. It is preferable if they are
placed on opposite sides of the graphic image.
4. When creating your artwork for printing you should overprint
the outside edges of your artwork by approximately .060" (1.5
mm). The overprint area provides extra space to accommodate
the cutting width of the laser beam.
