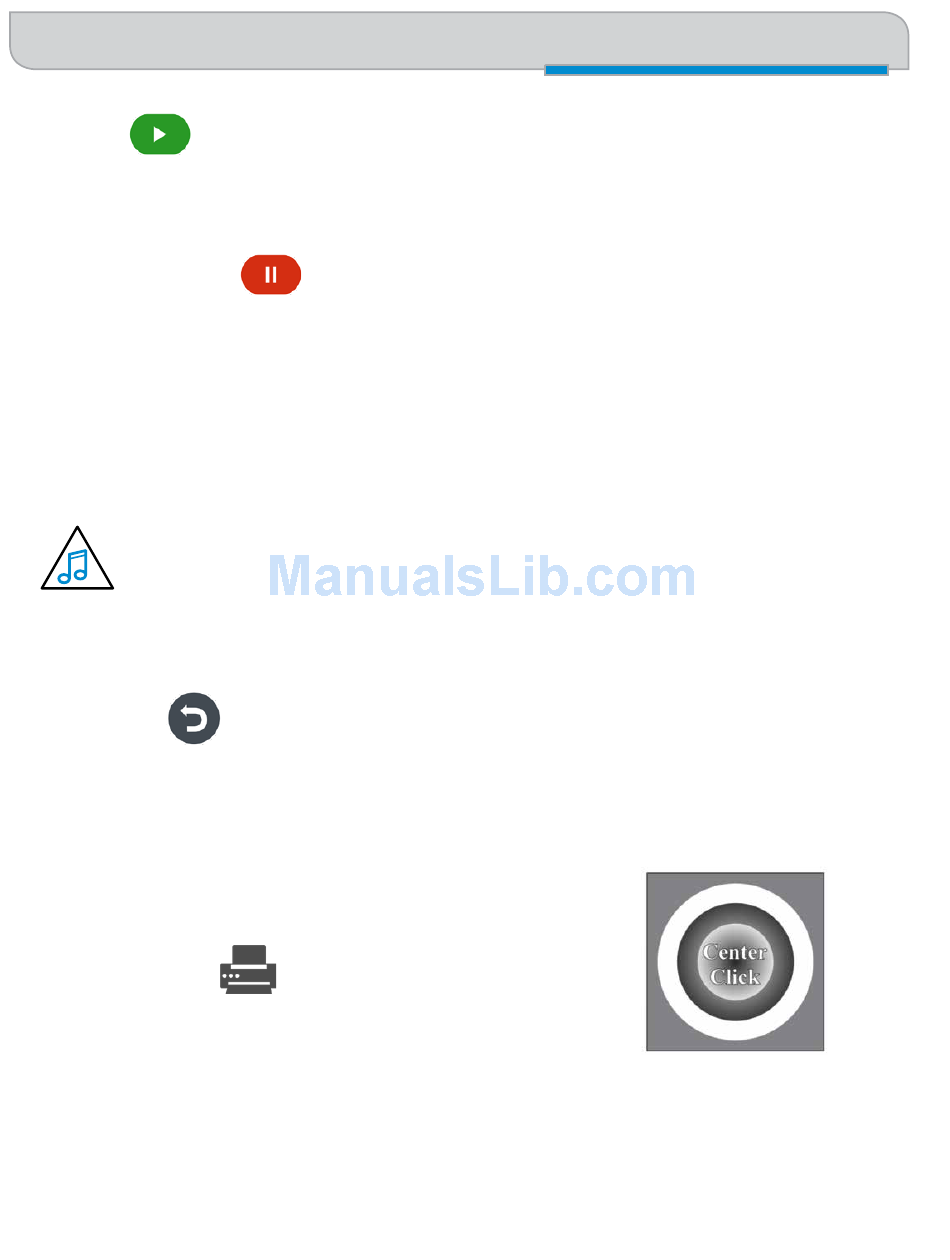

SECTION 7: FUSION CONTROL PANEL
Go Button
• Press the Go key to start or resume a job.
Pause / Stop Button
• Pressing the Pause key will stop the lens carriage and the laser beam will be shut off. If the Pause key is pressed
during raster engraving mode the lens carriage will pause on either the far left or far right of the engraving line that
is in process. If the Pause key is pressed while in vector cutting mode, the lens carriage will stop at the end of a line
segment or at the next line node location.
• Once the lens carriage has stopped, you can open the door to examine the engraving. By closing the door and
pressing the Pause key, the engraving/cutting job will commence where it left off. If the item being engraved is not
moved the engraving/cutting registration will not be affected.
• Note: Opening the door on the laser during engraving or cutting will stop the laser from firing; however,
the lens carriage will continue to move. It is important to stop the job before you open the door to insure
the engraving/cutting is completed.
• If you press the Pause key while in vector mode it may take some time for the system to actually stop. The system
needs to get to the next node in a vector before it can stop.

Reset Button

• Pressing the Reset key will move the carriage back to its Home Position. Press the Reset key after you have pressed
the Pause key, or after you have moved the carriage when in the Jog position.
• Reset does not erase the job from the laser systems memory; rather
it will stop the engraving job in process and send the carriage back to
the Home Position.
Data Transferring
This light will illuminate when data is being passed to the laser. This is a
handy tool when you are checking to see if your laser is connected to your
computer.
- 66 -
Up
Left
Down
Display
Right
