SECTION 11: OPTIONAL FEATURES

eView Camera Module

The eView Camera Module is an option available only on the Fusion M2. By printing registration marks on your project,
the camera system will align your artwork with the cutting and engraving in your project file for the most precise cutting
alignment available.
Attaching the eView Camera System to Your Computer
The eView Camera Module Accessories Kit includes:
• Preprogrammed Router
• Three Ethernet Cables
• One USB Cable

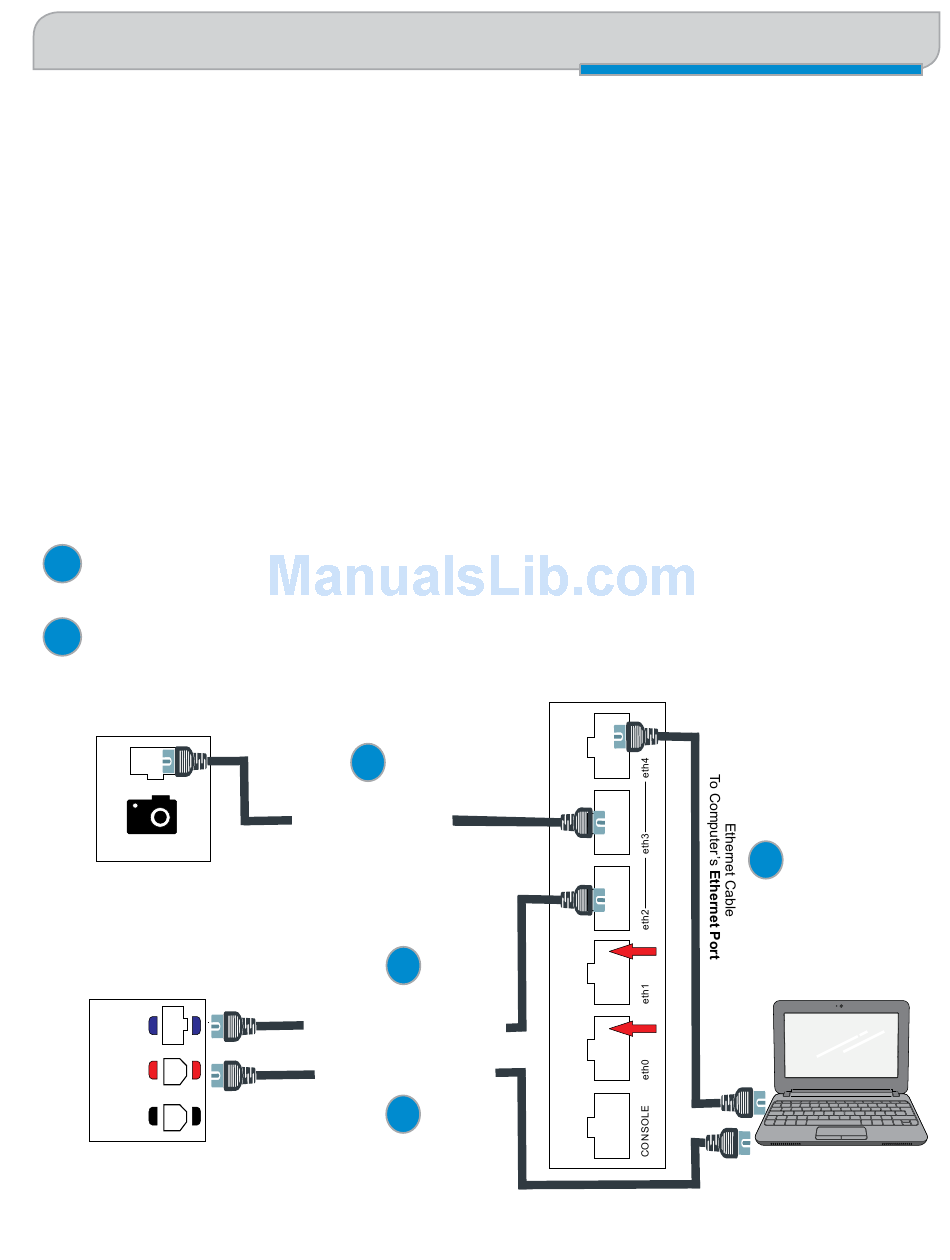

The camera module uses both USB and Ethernet communication that is optimized with an included, preprogrammed
Gigabit router to handle the largest amounts of video data at the fastest speeds. Follow the four steps below to connect
the laser, the router and the computer. All four cables must be connected to use the camera system.
1 Attach an Ethernet cable from a LAN port on the router to the Ethernet port on your computer. If you do not have
an Ethernet port available, you can use a USB to Ethernet connector.
2 Attach an Ethernet cable from a LAN port on the router to the Ethernet port above Camera Out (on the
back of the Fusion).
Fusion M2 with
Camera Option
CAMERA OUT
NETWORK
USB
OPTION
2
Ethernet Cable
To Fusion's Camera Out
3
Ethernet Cable
To Fusion's Network Connection
USB Cable
To Fusion's USB Connection
4
Preprogrammed
Router
Do Not Use
Do Not Use
