Required Parts
•
Pro 32: CS0424-TS - X-Axis belt
•
Pro 48: CS1203-TS - X-Axis belt

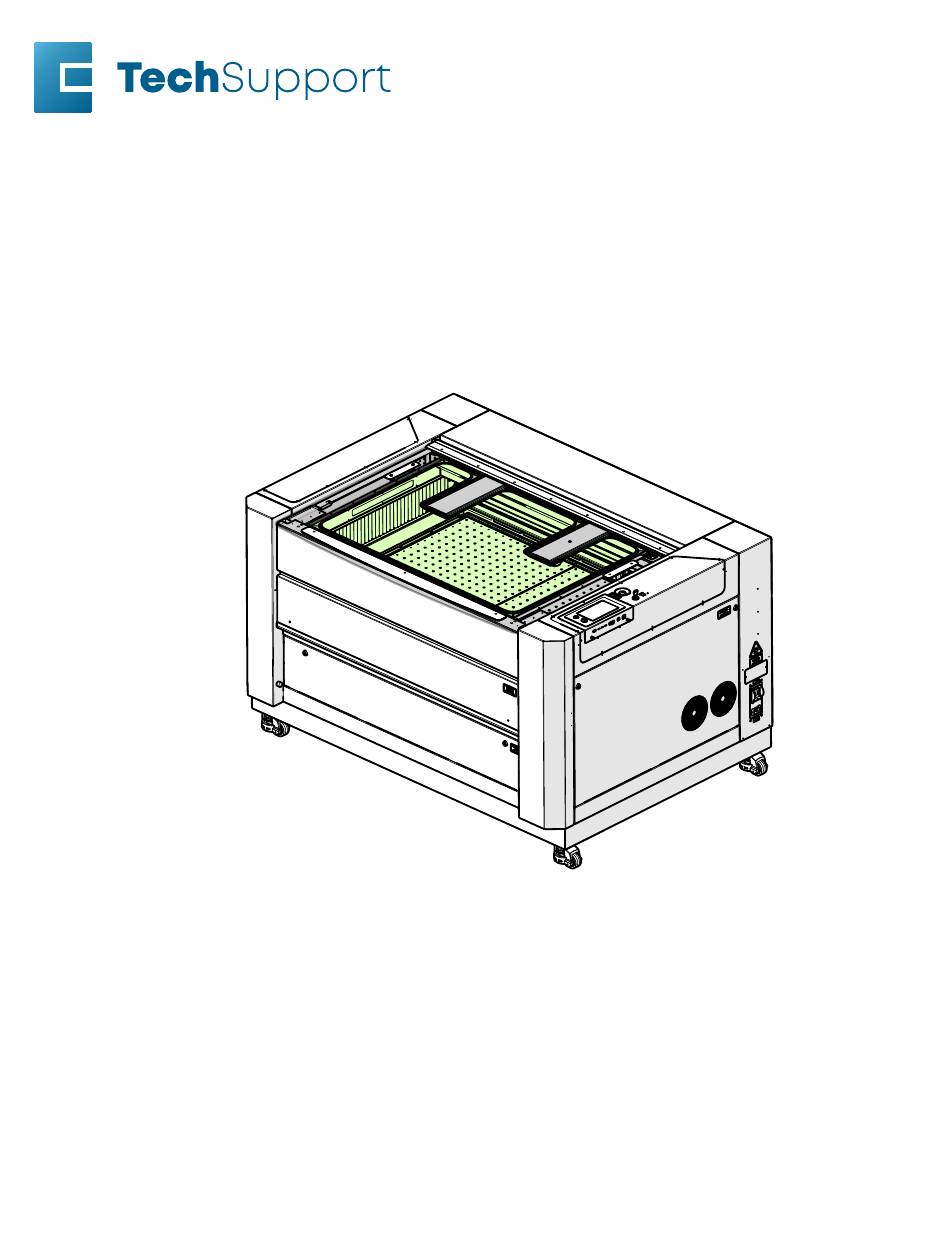

X-Axis Belt Replacement

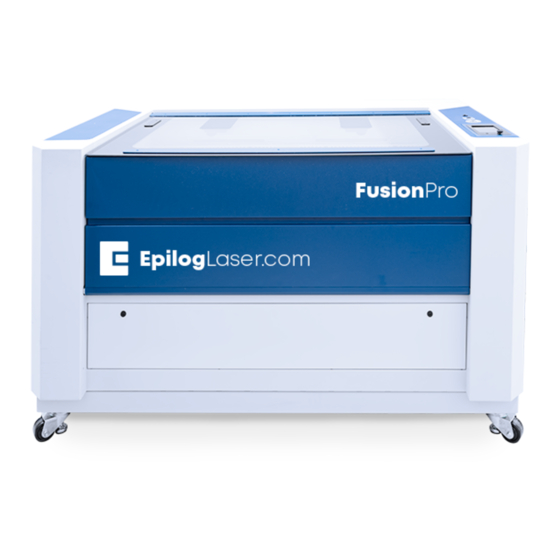

Fusion Pro 32 & Fusion Pro 48
9/2022
www.epiloglaser.com
tech@epiloglaser.com
Required Tools
•
3/32" Hex wrench
•
7/64" Hex wrench
•
Heavy-duty tape
303-215-9171
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Epilog Fusion Pro 32
Summary of Contents for Epilog Fusion Pro 32
- Page 1 303-215-9171 X-Axis Belt Replacement Fusion Pro 32 & Fusion Pro 48 Required Parts Required Tools • Pro 32: CS0424-TS - X-Axis belt • 3/32” Hex wrench • Pro 48: CS1203-TS - X-Axis belt • 7/64” Hex wrench •...
- Page 2 PRO 32 & 48 X-AXIS BELT DO NOT REMOVE THE OLD 5. Loosen, but do not remove the four (4) 7/64” hex screws at the rear of the x-axis BELT BEFORE RECEIVING A assembly: REPLACEMENT. Detensioning the Belt 1. Power off the engraver. 2.
- Page 3 PRO 32 & 48 X-AXIS BELT 3. Using a heavy-duty tape, such as 2. Locate the x-axis belt clamps, just to the Duct Tape, join the old and new belts left and right side of the lens carriage together by placing a strip of tape on assembly.
- Page 4 PRO 32 & 48 X-AXIS BELT 6. Ensure that the belt clamp is centered 10. Place the belt clamps in position. Install on the belt before tightening the clamp: and tighten the four (4) 3/32” inner x-axis belt clamp mounting screws: Tensioning the X-Axis Belt 1.
- Page 5 PRO 32 & 48 X-AXIS BELT 4. Open your preferred illustrating program 7. Press and hold the word “Settings” that and create a black, raster box on an appears at the touch of the touchpad artboard that is: to gain access to the Advanced Settings menu: •...
- Page 6 10. Once the optimal RMS current value If further assistance is required, please has been achieved, tighten the four (4) contact Epilog Laser Technical Support 7/64” idler mounting screws at the front by email at tech@epiloglaser.com, or by of the x-axis assembly and the four (4) phone at 303-215-9171.
