SECTION 2: GETTING STARTED
Epilog Exhaust/Filter Connections

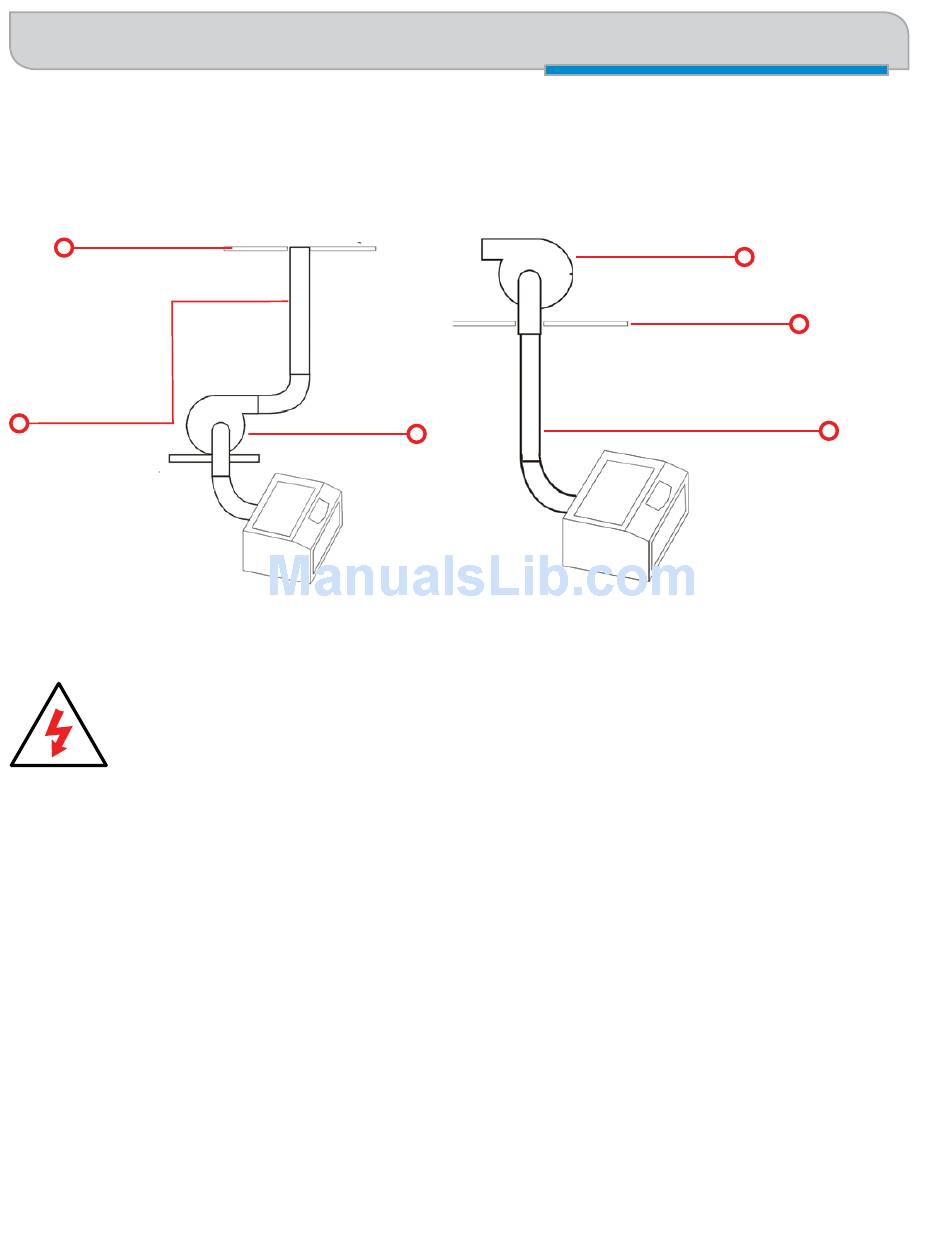

There are two 4" (102 mm) ports attached to the back of the laser system. Attach your ducting to the machine as shown
Roof or Exterior Wall
4" (102 mm) flexible
aluminum duct or
rigid galvanized sheet
metal (do not use
vinyl, plastic or "soft"
flexible duct).
in the diagram.
Check your exhaust system for leaks. Most small leaks can be remedied with duct tape. DO NOT OPERATE
your laser with inadequate or leaking exhaust.
Exhaust Blower
- 14 -
3. Connecting the Exhaust
Exhaust Blower
Roof or Exterior Wall
4" (102 mm) flexible aluminum
duct or rigid galvanized sheet
metal (do not use vinyl, plastic or
"soft" flexible duct).
