SECTION 11: OPTIONAL FEATURES

Pin Table

Pin Table
The Pin Table option offers a method for users to keep all back reflections of the laser beam from marking the sides or back
of the material being cut. The Pin Table lifts the cutting material completely off the table and provides a means to eliminate
the tick marks that can be created when the laser beam comes into contact with the grid material.

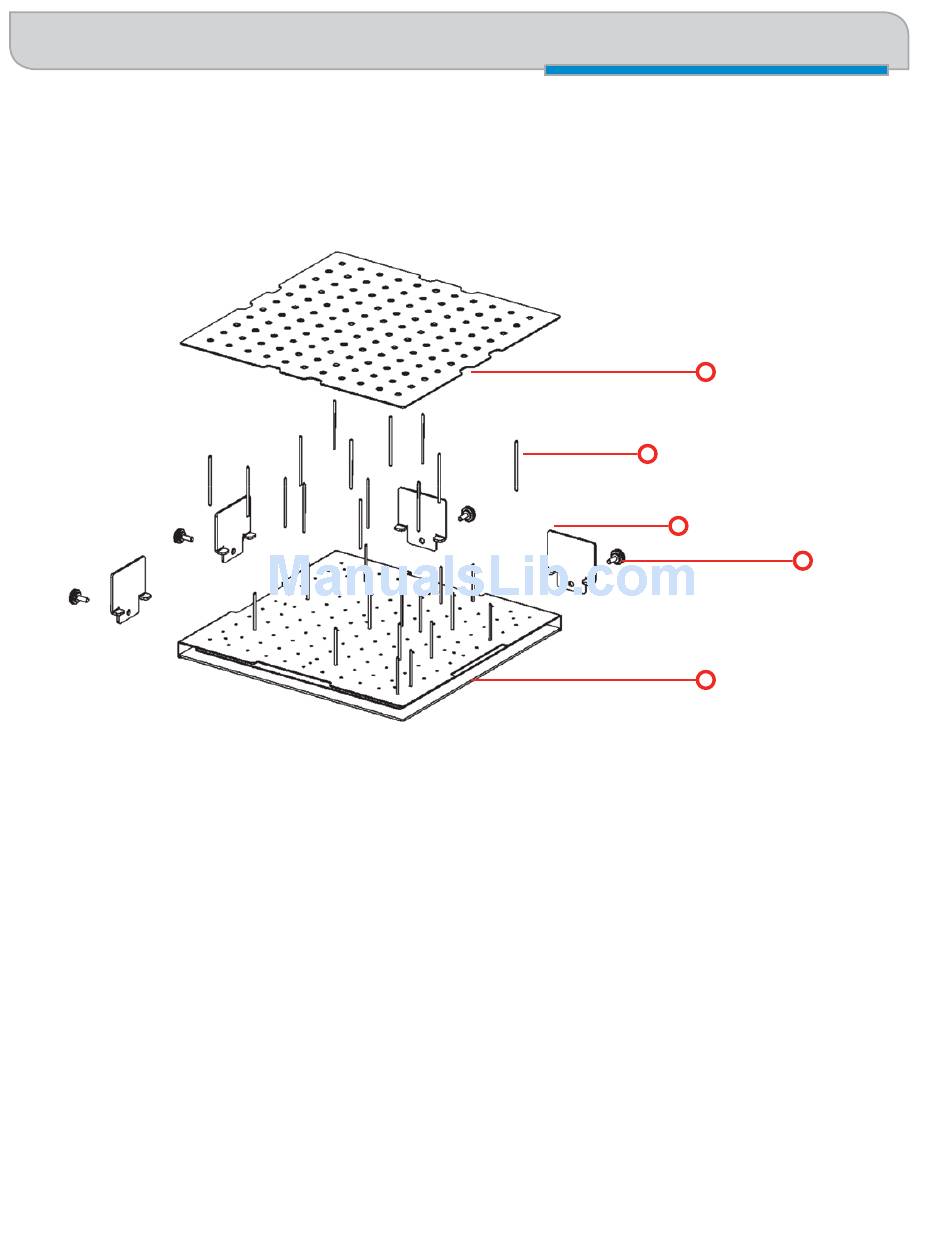

Parts Lifter
Pin (30 each)
Fence (4 each)
Thumbscrew (4 each)
Pin Table Assembly
The Pin Table is a 12" x 12" (305 x 305 mm) anodized aluminum table that holds movable support pins that can be placed
anywhere on the table's one inch (25.4 mm) grid pattern. The movable support pins allow the user to place the pins
anywhere on the grid in such a way that they support the material being cut while avoiding the cutting path of the laser.
This method of supporting the material produces cut edges that do not have any marks from laser reflections. By setting
up a grid pattern in your graphics package to match the grid pattern of the Pin Table, you can easily ensure that your
cutting path will not contact the support pins.
Assembly Instructions
After unpacking the Pin Table, remove the four thumbscrews from the Pin Table assembly.
1. Install the four fences along the two sides using the thumbscrews you just removed.
2. At this point the Pin Table is almost ready to use. The next step involves placing the pins anywhere on the grid so
that they support the piece you are going to be cutting, and are out of the laser beam cutting path.
User's Guide
1. Install as many pins as necessary to support your work piece and waste pieces.
