SECTION 11: OPTIONAL FEATURES
7. Click OK to close the Preferences window and OK
again to send the job to the Job Manager.
Setting Up the Job in the Epilog Job
Manager

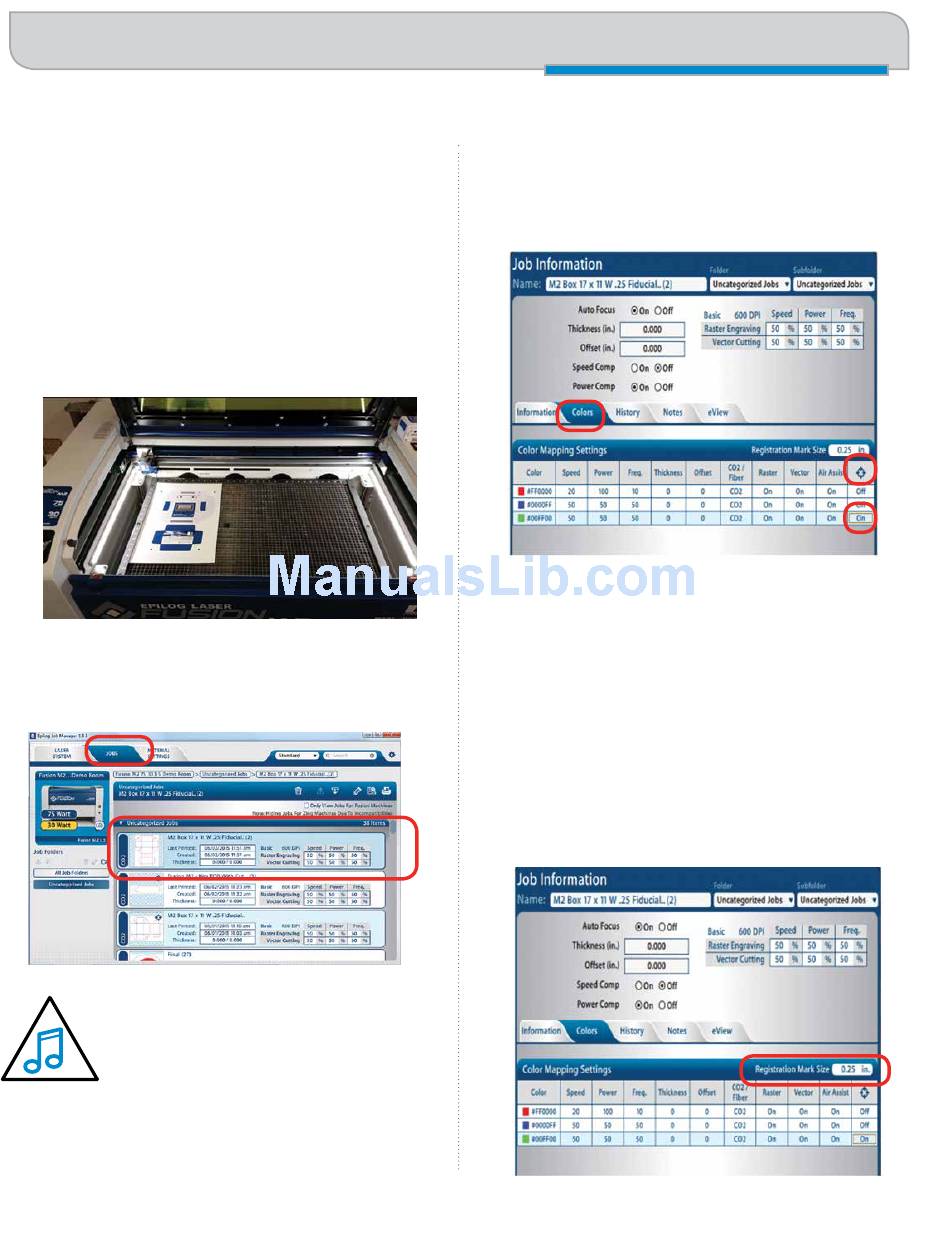

1. Place your item to be cut on the laser's table. Make
sure to leave the door to the laser open. This
allows the door cameras to show the table preview.
2. Open the Epilog Job Manager. In the Jobs Tab,
double click on the job you just printed to open the
Job Information window.
Make sure that when you set up your laser
in the Job Manager that you checked the
box to activate the eView Camera. For
more information, see "Activate a Laser"
on page 36.
3. Designate the Registration Mark Color: Click the
Colors Tab. Find the color that represents the
registration marks (green in this case). In the field at
the far right (with a registration mark icon) click on
the word OFF to toggle it to ON.
As soon as you click the Registration mark to ON the
carriage will move as far back and to the left as it
can go. This indicates that the Fusion is ready for the
next step.
4. Set Registration Mark Size: After selecting the
registration mark color, a field will appear allowing
you to set the registration mark size. The default is
.25" (6 mm), like we used in the file setup.
If you used a different size circle in your artwork
setup you can designate that size here.
- 138 -
eView Camera Module
