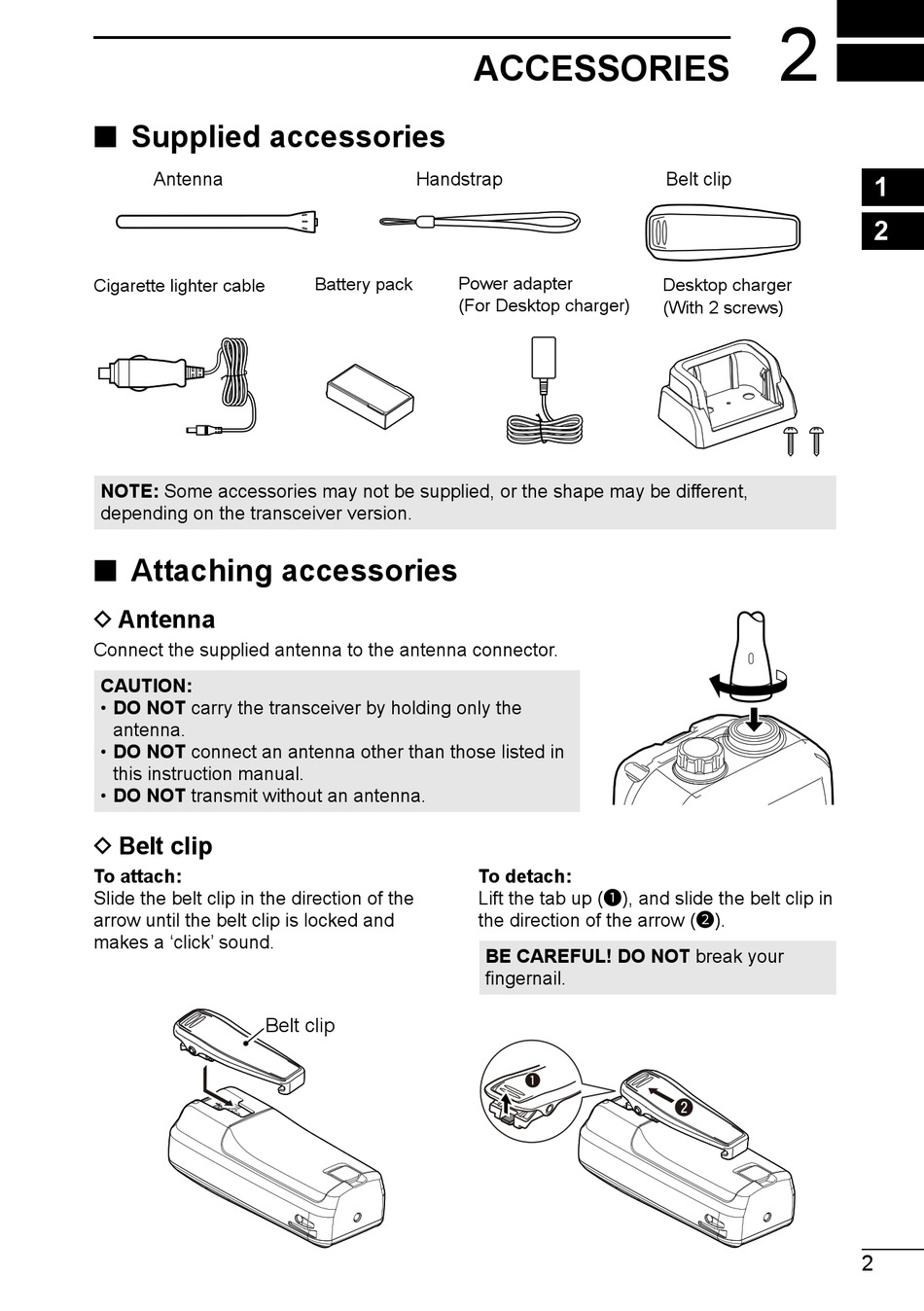

Accessories; Supplied Accessories; Attaching Accessories - Icom IC-M94D Instruction Manual

■ Supplied accessories

Antenna
Cigarette lighter cable
NOTE: Some accessories may not be supplied, or the shape may be different,
depending on the transceiver version.

■ Attaching accessories

D Antenna
Connect the supplied antenna to the antenna connector.
CAUTION:
• DO NOT carry the transceiver by holding only the
antenna.
• DO NOT connect an antenna other than those listed in
this instruction manual.
• DO NOT transmit without an antenna.
D Belt clip
To attach:
Slide the belt clip in the direction of the
arrow until the belt clip is locked and
makes a 'click' sound.
Belt clip

ACCESSORIES

Handstrap
Battery pack Power adapter
(For Desktop charger)
To detach:
Lift the tab up (1), and slide the belt clip in
the direction of the arrow (2).
BE CAREFUL! DO NOT break your
fingernail.
q
Belt clip
Desktop charger
(With 2 screws)
q
w
w
