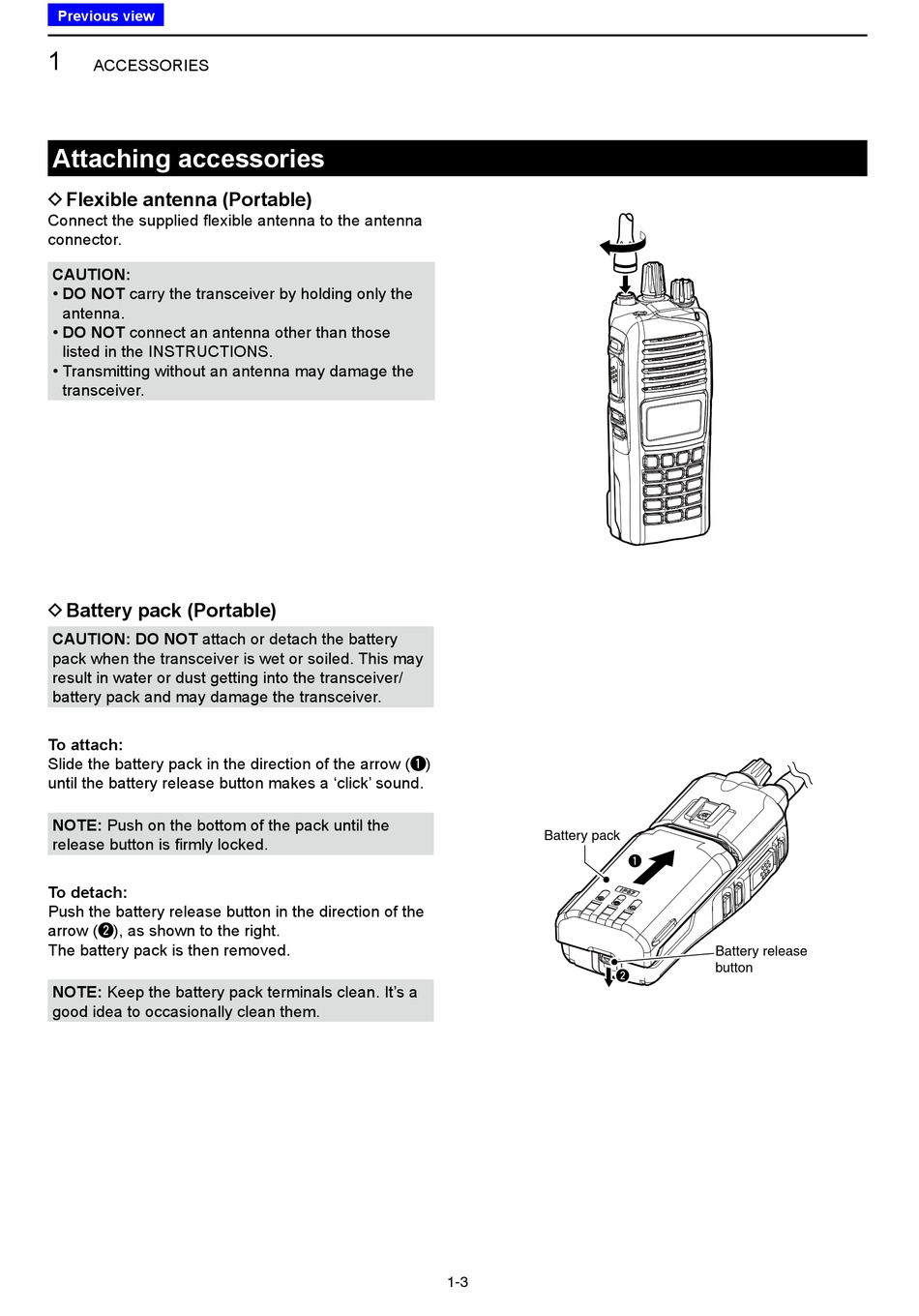

Attaching Accessories; D Flexible Antenna (Portable); D Battery Pack (Portable) - Icom iF4261DT Operating Manual

Previous view
1
ACCESSORIES

Attaching accessories

D Flexible antenna (Portable)

Connect the supplied flexible antenna to the antenna
connector.
CAUTION:
• DO NOT carry the transceiver by holding only the
antenna.
• DO NOT connect an antenna other than those
listed in the INSTRUCTIONS.
• Transmitting without an antenna may damage the
transceiver.

D Battery pack (Portable)

CAUTION: DO NOT attach or detach the battery
pack when the transceiver is wet or soiled. This may
result in water or dust getting into the transceiver/
battery pack and may damage the transceiver.
To attach:
Slide the battery pack in the direction of the arrow (q)
until the battery release button makes a 'click' sound.
NOTE: Push on the bottom of the pack until the
release button is firmly locked.
To detach:
Push the battery release button in the direction of the
arrow (w), as shown to the right.
The battery pack is then removed.
NOTE: Keep the battery pack terminals clean. It's a
good idea to occasionally clean them.
Battery pack
w
1-3
q
Battery release
button
