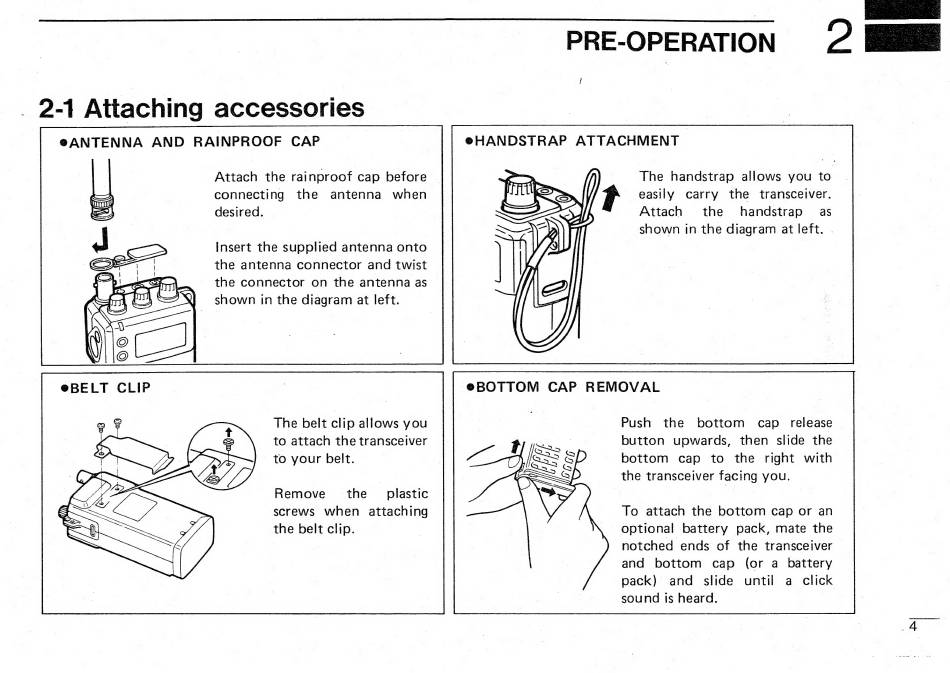

. 2-1 Attaching accessories
The handstrap allows you to
easily carry the transceiver.
Attach the handstrap as
shown in the diagram at left. .
Attach the rainproof cap before
connecting the antenna when
desired.
Insert the supplied antenna onto
the antenna connector and twist
the connector on the antenna as
shown in the diagram at left.
eBOTTOM CAP REMOVAL
Push the bottom сар release
button upwards, then slide the
bottom cap to the right with
the transceiver facing you.
The belt clip allows you
to attach the transceiver
to your belt.
Remove the plastic
screws when attaching
the belt clip.
To attach the bottom cap or an
optional battery pack, mate the
notched ends of the transceiver
and bottom cap (or a battery
pack) and slide until a click
sound is heard.
