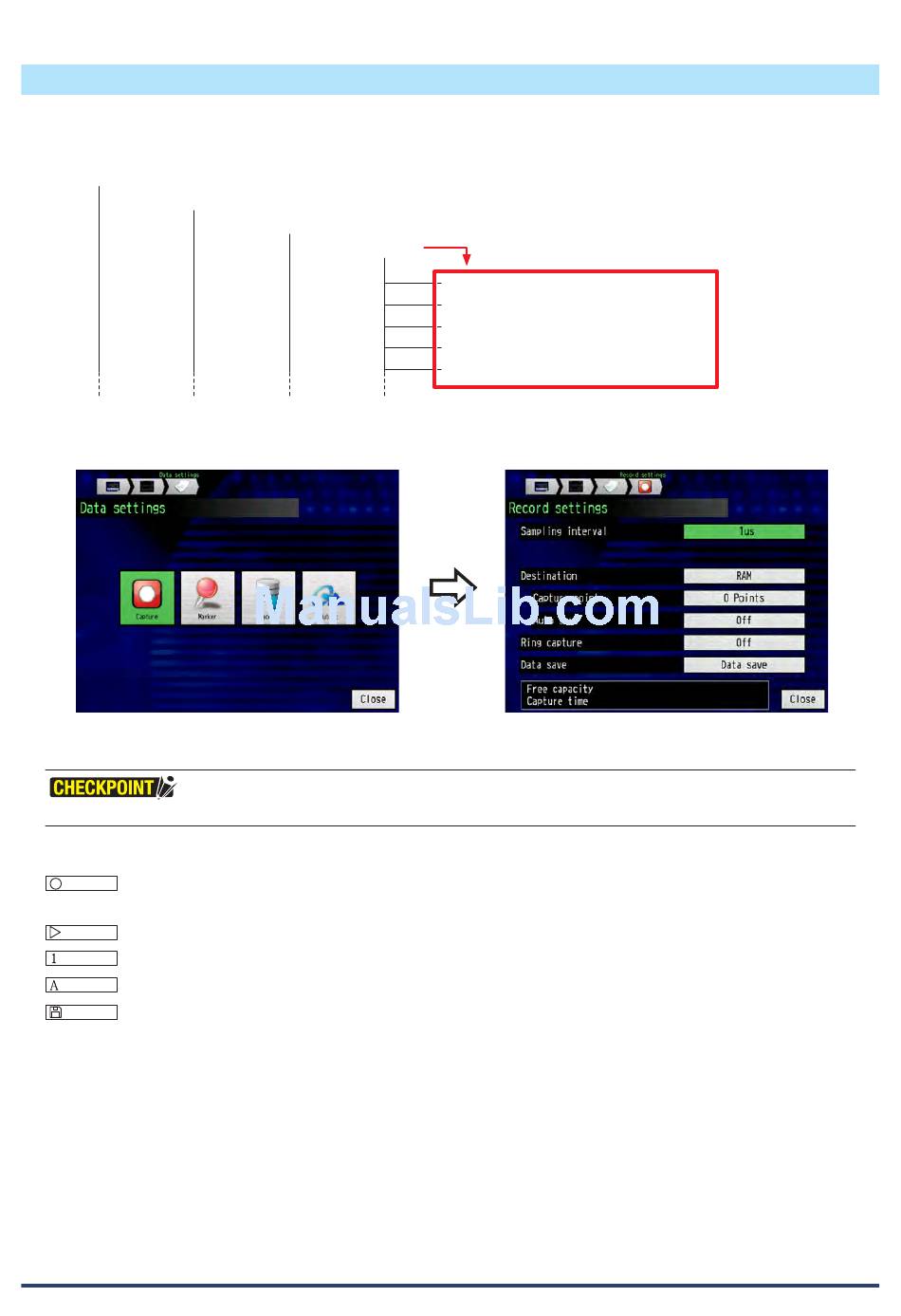

(6) Menu tree

Here the whole menu tree is displayed. On this menu tree you can search for where items you want to set
are located.
HOME
Machine settings
Pressing the "Capture" icon moves the user to a settings screen with set items such as "Sample Interval" (the
red framed part on the chart above).
* Output settings: Displayed when the GL7-DCO
module is installed.
Among the Set Items there are also items that are only displayed when certain conditions are met.
An explanation of the symbols listed in the menu tree will be given on the next page.
: Touching the setting value that has this icon will display a list to a separate screen where that the
Select
setting values can be selected.
: Pressing the setting for an item that has this symbol will execute its contents.
Execute
: Pressing the setting for an item that has this symbol will open the numerical entry screen.
Numerical
Value
: Pressing the setting for an item that has this symbol will open the character entry screen.
Character
: Pressing the setting for an item that has this symbol will open the file operations screen.
File
Data settings
Record settings
Sampling interval
AC Line filter (GL7-M)
Destination
Capture point
Auto save
CHAPTER 3 Measure and Set
3-13
