(14)-1 Span/Position/Trace
Turns the waveform display On/Off and lets users chane settings related to vertical display.

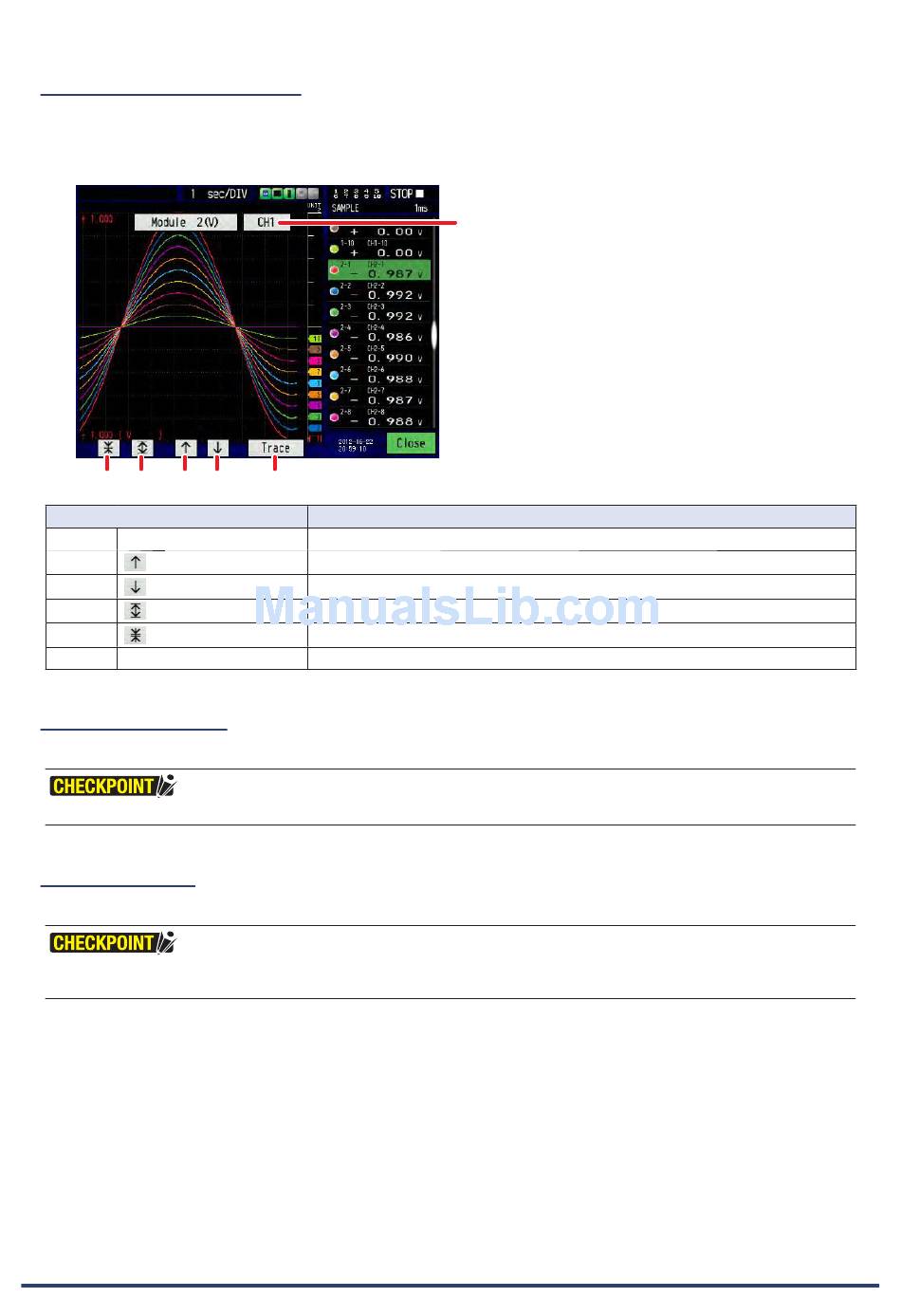

Touching the button for Span/Position/Trace will display the Waveform screen below. You can change the
settings while viewing the waveform.
(5) (4) (2) (3)
Item select
(1) Channel Selection
(2) Up
(3) Down
(4) Expand
(5) Reduce
(6) Trace
(14)-2 Zone setting
Sets the zone for waveform display.
If a zone is set, the channel displayed in each zone is fixed and can not be changed.
(14)-3 Time/DIV
Sets the timescale, the horizontal axis of the waveform display.
When displaying the waveform during free running or during recording, it's displayed from 100ms/DIV. During data replay
it's displayed from recorded sampling rate/DIV.
(6)
Selects the channel for the waveform processing.
Moves the waveform up.
Moves the waveform down.
Expand the waveform.
Reduce the waveform.
Changes the waveform display to On/Off.
(1)
Description
CHAPTER 3 Measure and Set
