CHAPTER 3 Measure and Set

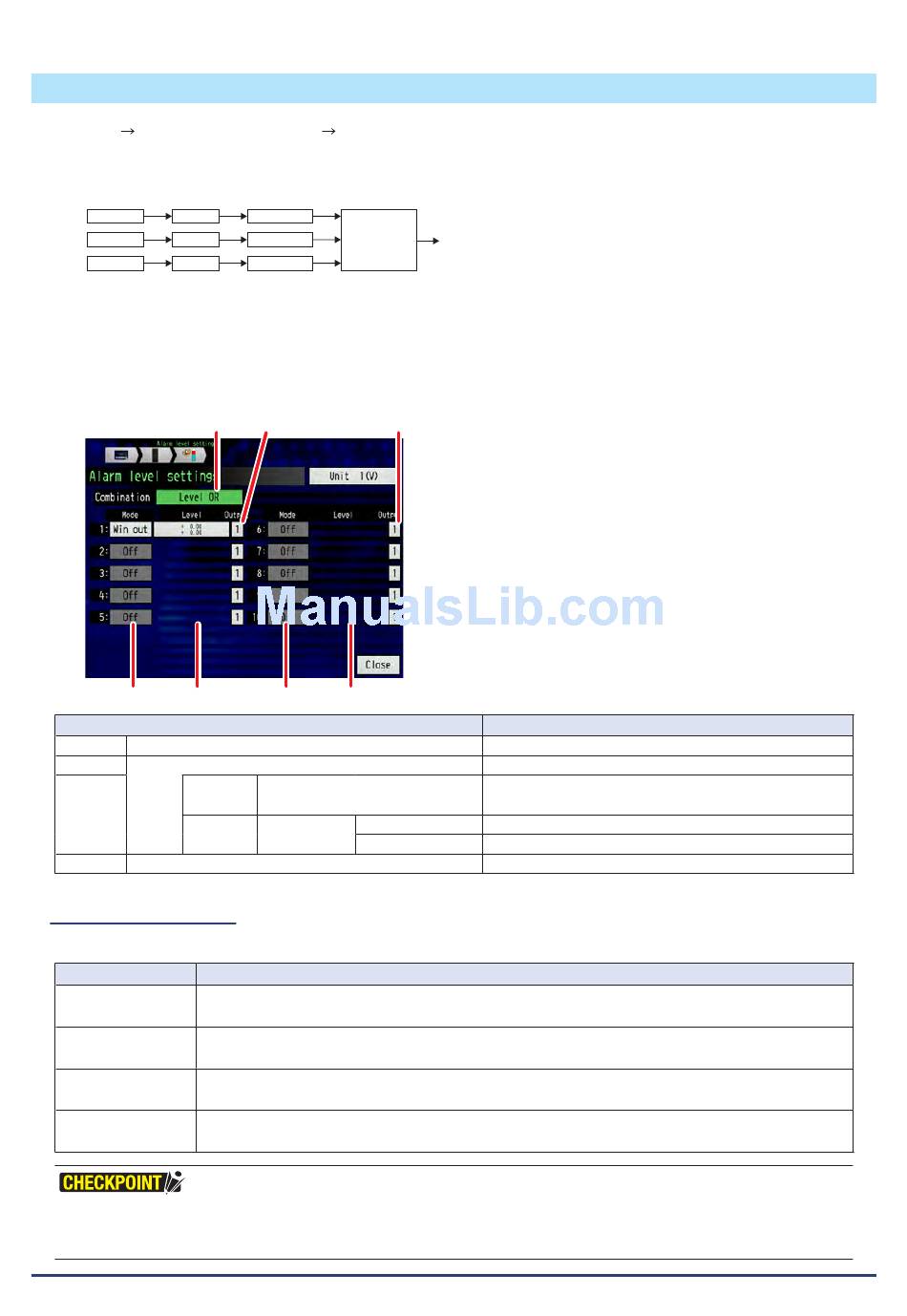

(13) Alarm level settings

("Home" "Each Amplifier Module"
Sets alarm occurrence conditions, output destination etc. If the conditions set here are satisfied, an alarm is
output from the Alarm Module terminal (specifies the output destination number for each CH).
CH n
Pulse n
Logic n
• Pulse and Logic changes per module.
• Combination settings for each module may be set to only one type.
All modules are set to the same settings.
When the settings are changed, all modules are set to the same content.
• Specifies alarm output for each CH, Pulse and Logic. If the combined settings of the alarm
output are established, the alarm is outputted.
<Ex.> If the output destination is set to 1 for CH1 and CH2, and 2 for CH3 and CH4, and Level OR for combination,
when the conditions for either CH1 or CH2 are satisfied, alarm output 1 occurs, and when the conditions for
either CH3 or CH4 are satisfied, alarm output 2 occurs.
(13)-2
(13)-1 Combination
(13)-2 Mode
(13)-3
(13)-4 Output
(13)-1 Combination
Sets combinations of alarm conditions for each channel.
Item select
Level OR
Level AND
Edge OR
Edge AND
•
The level action/edge action is same as the trigger level. For details, see "Level action and edge action" on page 3-106.
•
When the combination of the alarms is set to "Edge OR" or "Edge AND", the alarms are retained regardless of this setting.
•
When the alarms are not retained, set the combination of the alarms to "Level OR" or "Level AND".
3-110
"Alarm level settings")
Mode Level
Mode Level Combination
Mode Level
(13)-1 (13)-4
(13)-3 (13)-2 (13)-3
Item select
H Level
L
Win in Upper level/
Win out Lower level
If at least 1 of the set alarm conditions is satisfied, the alarm of specified number is output.
Each condition becomes a level action.
If all of the set alarm conditions are satisfied, the alarm of specified number is output.
Each condition becomes a level action.
If at least 1 of the set alarm conditions is satisfied, the alarm of specified number is output.
Each condition becomes an edge action.
If all of the set alarm conditions are satisfied, the alarm of specified number is output.
Each condition becomes an edge action.
Alarm output n
(13)-4
Level OR, Level AND, Edge OR, Edge AND
Off, H, L, Win in, Win out
Numerical entry
Upper limit value Numerical entry
Numerical entry Numerical entry
1 to 10 (Numerical entry)
Description
Examples of item
