Voltage/Temperature Module (GL7-M): Optional

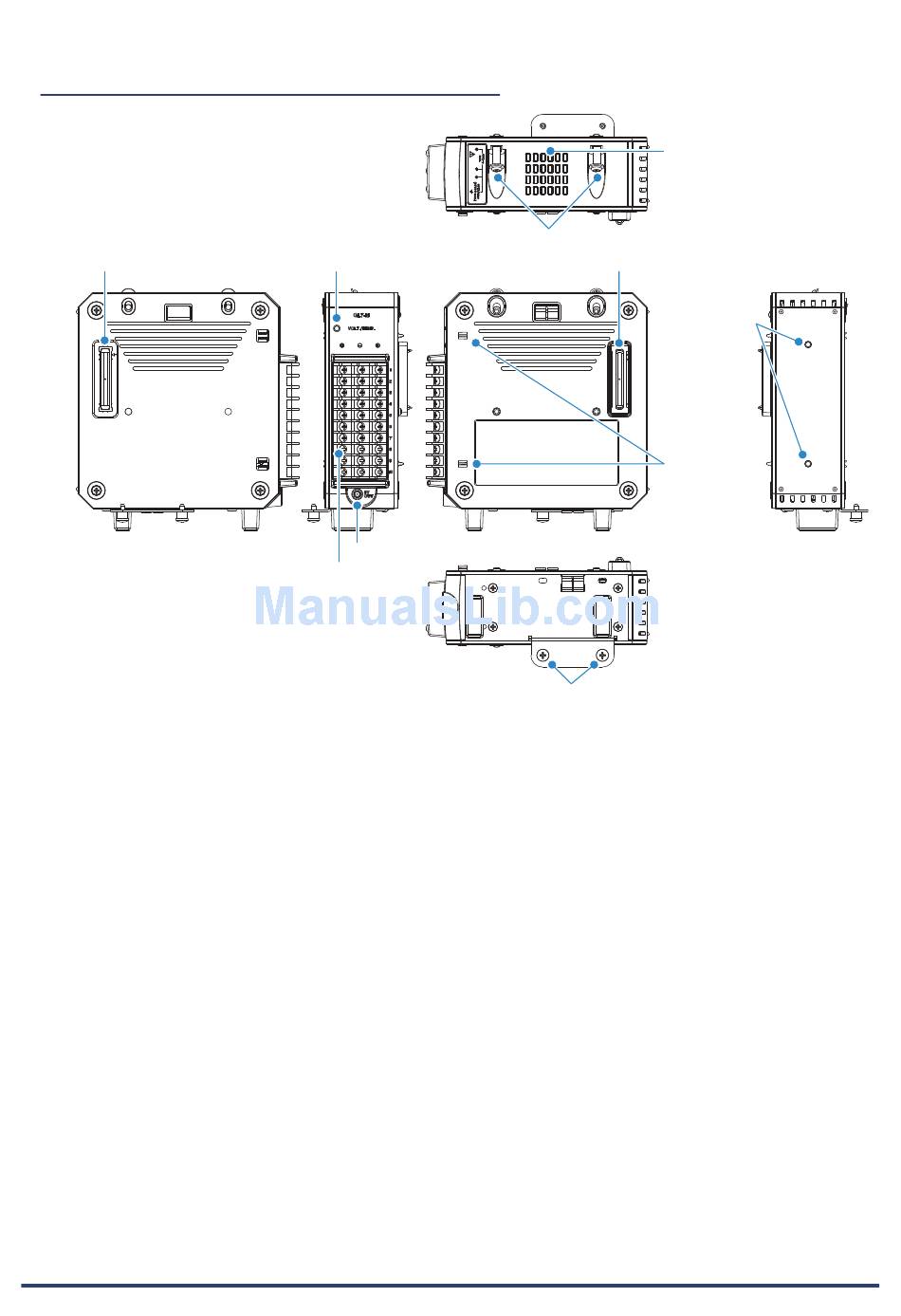

1. Connector for connecting
to module
9. Analog signal input terminals
1. Connector for connecting to module
.............................................Connector for connecting to the various modules.
2. Connector for connecting to main module
.............................................Connector for connecting to the GL7000 main module or various modules.
3. Module fixing screw (upper) .....Fixation screw for the adjoining module.
4. Cooling fan ...............................Fan to cool internally.
5. Module fixing screw (lower) . .....Fixation screw for the adjoining module.
6. Nail ...........................................A nail for aiding in positioning when connecting the module.
7. M4 threaded hole . .....................Use this hole to mount to the panel, etc.
8. Power LED ...............................The Power LED will light up green when the power has been turned on
9. Analog signal input terminals ...Terminal for inputting analog measurements.
10. 5V OUT . ..................................Power for the temperature sensor (optional: B-530).
8. Power LED
10. 5V OUT
and the module has been recognized.
3. Module fixing screw (upper)
2. Connector for connecting to main module
5. Module fixing screw (lower)
CHAPTER 2 Checks and Preparation
4. Cooling fan
7. M4 threaded
hole
6. Nail
2-11
