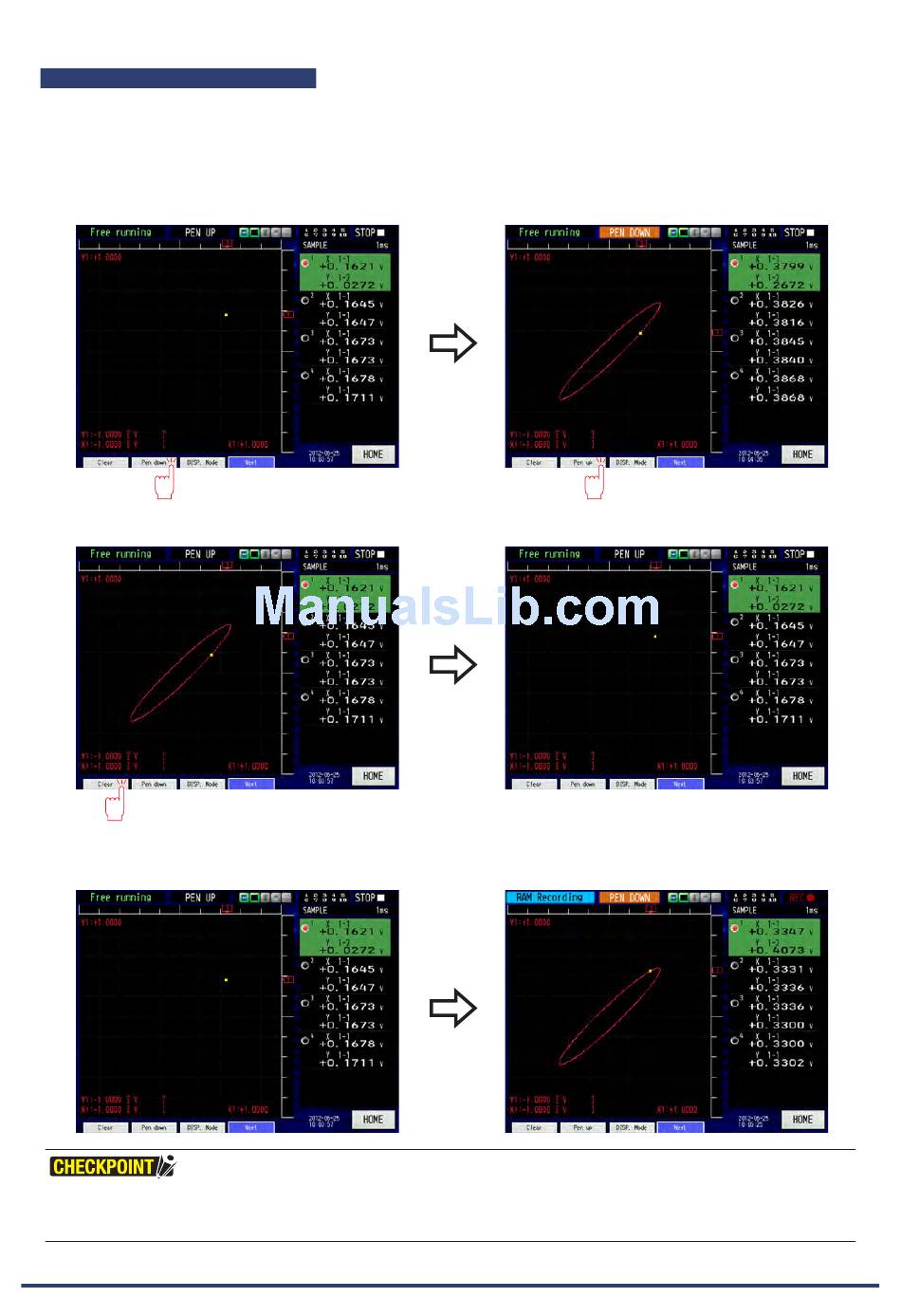

How to operate the XY display
This section explains how to operate the XY display screen.
(1) Drawing waveform
When "Pen-down" function key is touched, the drawing of the waveform XY is performed.
When "Pen-up" function key is touched, the screen changes to the trajectory display without subsequent
drawing.
(2) By touching "Clear", the drawing of the XY waveform is deleted.
(3) When the recording starts, waveform clear and pen-down are started up automatically, and then the XY
waveform is drawn.
•
When the recording starts, pen-down are started up automatically, after finishing the recording, moves to pen-up state.
•
Even if the XY waveform drawing is cleared during recording, the data is not affected during recording.
•
When the Span Position Trace, etc. are changed during XY replaying, conduct a redraw.
CHAPTER 3 Measure and Set
3-121
