CHAPTER 2 Checks and Preparation

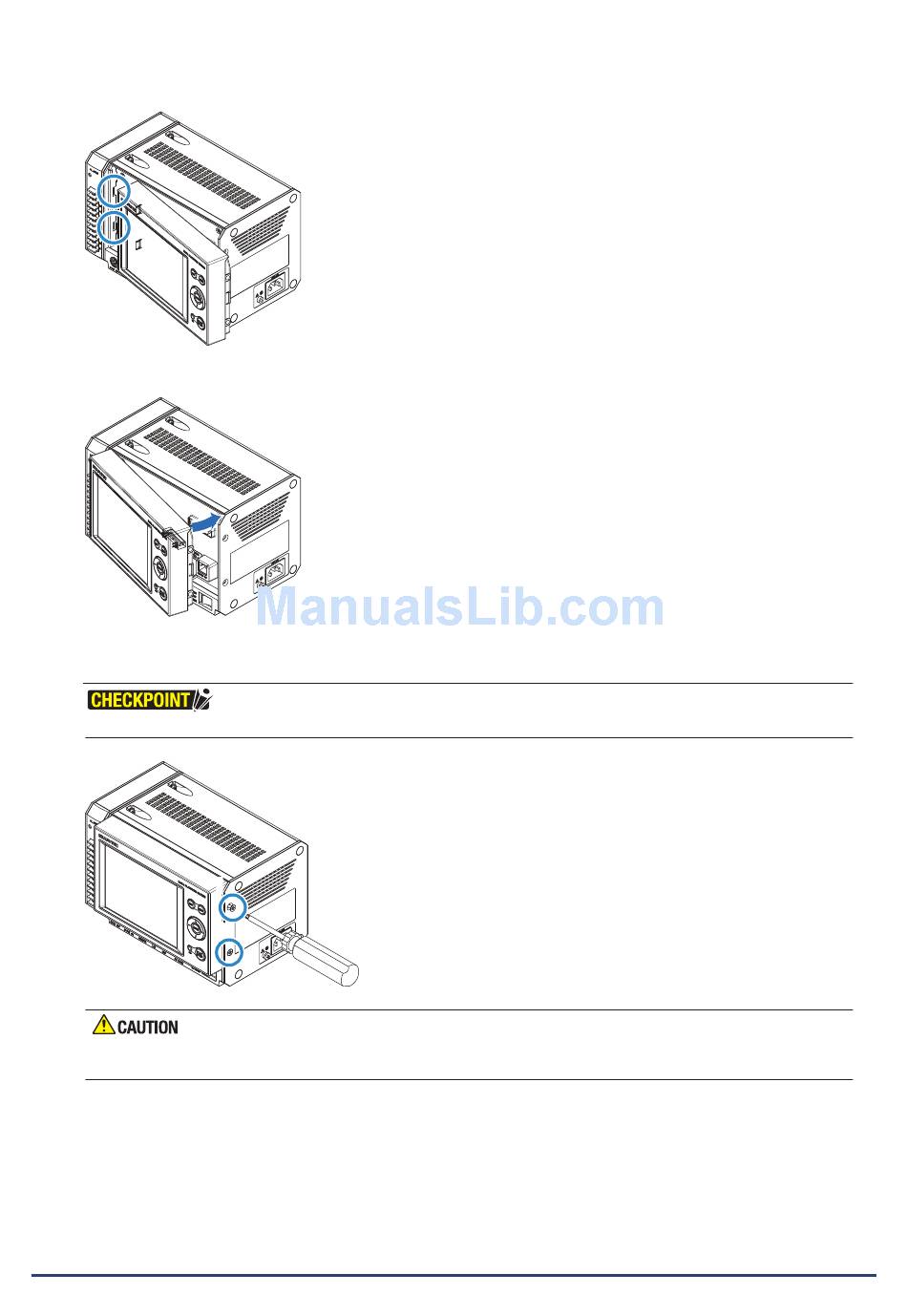

(3) Join the nails on the back of the Display Module with the inset part of the main module, and push it in.
(4) Join the Display Module with the module connector, and insert into the main module.
(5) Attach the fixation screws of the main module (2 places on the side). Using the screw removed when the
face cover is removed, secure it.
During installation, a 4kgf/cm screw tightening torque is recommended.
Since the touch-screen on the main module is calibrated when turning on power, do not touch it at power-up.
When turning on power while touching the touch-panel, the touch panel may not start properly.
