CHAPTER 3 Measure and Set

3.1 Nomenclature

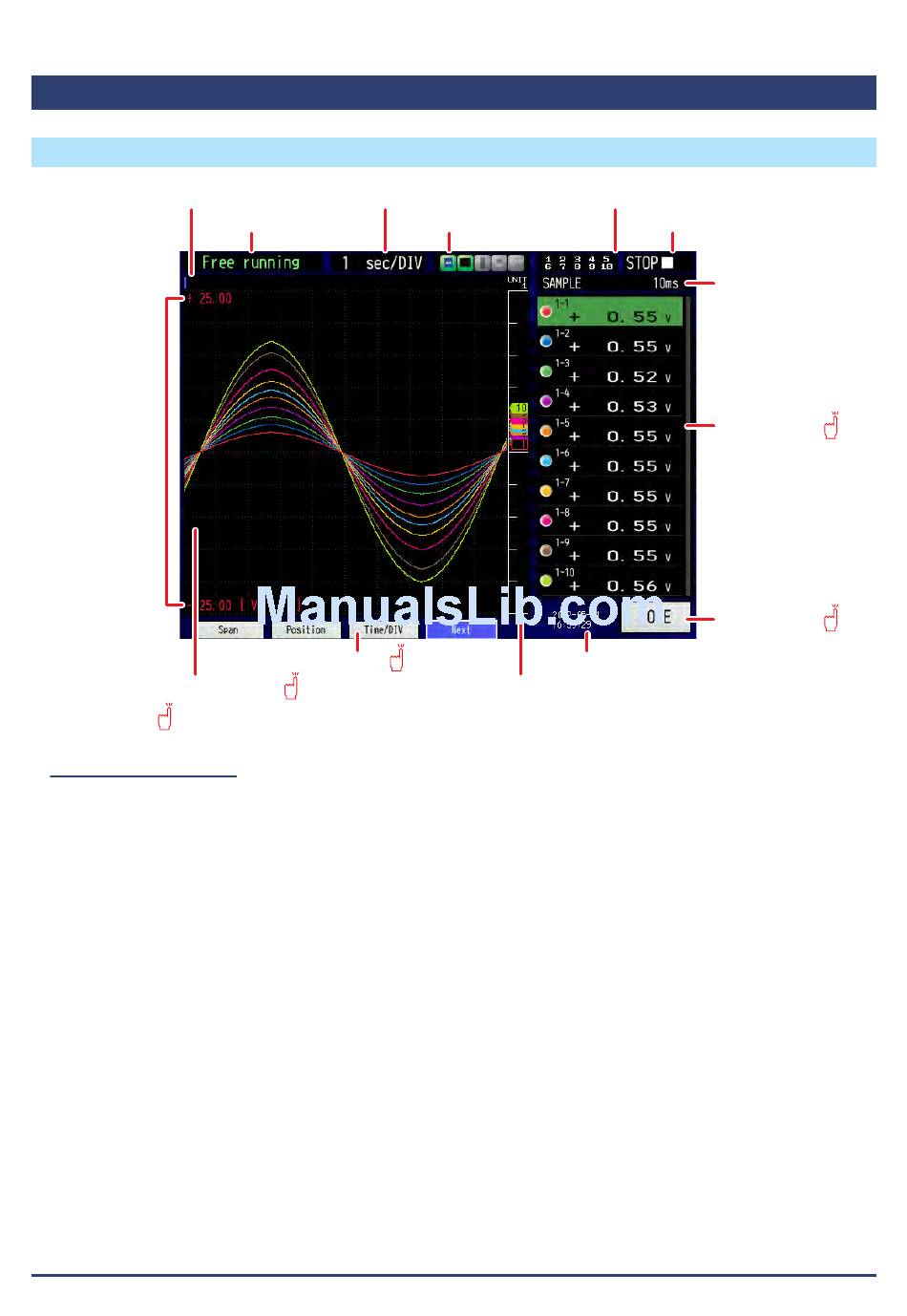

(1) Waveform + Digital Screen
17. Scale display
16. Waveform display
: "11. Digital display", "12. Home button", "14. Function button, and "16. Waveform display" are enabled by touching a finger.
1. Simple message
Displays the active status of the GL7000.
Free running
Armed
RAM Recording
Memory recording
SD Card Recording : Displayed when data is being recorded to the SD card.
SSD Recording
Writing Disk
Finished
Replaying RAM
Memory review
Replaying SD Card
Replaying SSD
Backup Failed
Demo wave mode
3-2
18. Recording bar
1. Simple message
14. Function buttons
: Displayed when recording is not performed immediately after turning on the power.
: Displayed when waiting for a trigger to complete once measuring has begun.
: Shown when Built-in RAM of each module is in use
: Displayed when data is being recorded the GL7000 internal memory.
: Displayed when data is being recorded to the SSD.
: Displayed when recorded data is being writing to the internal memory, SD card, or
SSD following recording.
: Displayed only when a message is displayed if the recording is stopped in the full
disk.
: Displayed when data within built-in RAM of a module is being replayed.
: Displayed when the data recorded in GL7000 internal flash memory is being replayed.
: Displayed when the data recorded in SD card is being replayed.
: Displayed when data recorded on an SSD is being replayed.
: Displayed when backup fails (e.g. the backup destination (SD card) has been
removed, etc.).
: Displayed when displaying a demo waveform as opposed to measured data.
2.TIME/DIV
3 to 7.
Various Displays
15. Pen display
8. Alarm icon
9. Status mark
13. Clock indication
10. Sample interval
11. Digital display
12. HOME button
