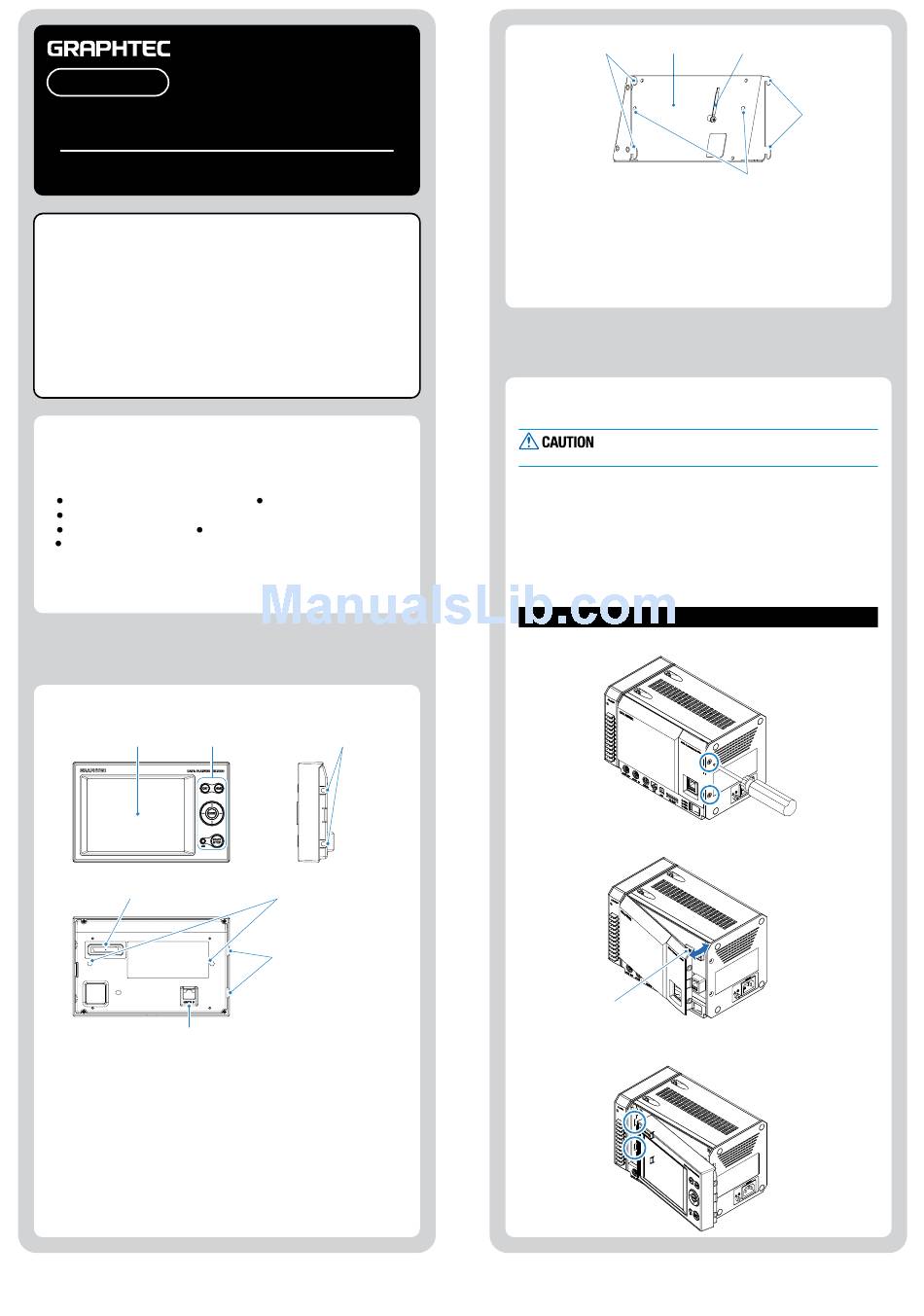

GRAPHTEC GL7000 User Manual

GL7-DISP
GL7000
Display Module
USER'S MANUAL
Thank you very much for buying this GRAPHTEC product.
This product is a display module for recording.
Please use it by installing it on the main module.
These directions describe preparations and cautions before
measurement.
For the details concerning operation procedures etc., read
the User's manual recorded on the CD-ROM (included with
the main module)
Confirmation of the exterior
After opening the package, please confirm that there are no
problems (scratches and dirt) on the exterior before use.
Confirmation of the attached items.
Instruction manual (this book): 1
Monitor connection cable (40 cm): 1 pc.
Screws (M4x6): 3 pcs. Ground cable: 1 pc.
Flat Head Screws (M4ｘ10) 2 pcs. (Spare)
If by any chance faults are found, please contact the store where you
bought the item.
* Please note that items mentioned in this book may change without prior notice.
1 Part Names
Explanation of the module's part names and functions.
1, Monitor 2, Operation key
4, Connector for connecting to module
7, Monitor In connector
1, Monitor
2, Operation key
3, Threaded hole for mounting... Threaded hole for fixing to the main module
4, Connector for connecting to module.. Connector for connecting to the main module
5, Threaded hole for mounting.. Threaded hole for fixing to the tilting table
(M4 Approx depth 5 mm)
6, Nail...................................... Threaded hole for fixing to the tilting table
(2 places)
7, Monitor In connector......... Connector for use when extending
cables, and when using the tilting table
GL7-DISP-UM-151
Tilting table: 1 module
3, Threaded hole for mounting
5, Threaded hole for mounting
6, Nail
9, Tilting table
8, Nail
8, Nail.................................... Nails for fixing to the main module
(4 places)
9, Tilting table
10, Clamp................................ Clamp for binding the monitor connection cable
11, Mounting hole.................. Threaded hole for fixing to the display module
2 How to Install Module
This explains how to attach the module to the main module.
When installing or removing the module, please
make sure that the power is off.
The display module has 3 basic positions.
A. When the main module is attached... fitting to the main module.
B. When using the tilting table... Use the tilting table (at a 15° tilt
angle) to fit to the main module.
C. When extending cables... Use a commercially available LAN cable,
and attach to a place separated from the display module on the main module.
A. This explains how to install when attaching the main module.
1, Remove fixation screws from the main module (2 places on
the side)
2, Pull the nail on the upper-right side of the face cover, and remove
the face cover.
Face cover nails
3, Join the nails on the back of the display module with the inset
part of the main module, and push it in.
10, Clamp
8, Nail
11, Mounting hole
1 1
2 2
Das empfohlene Schrauben-
Anzugsdrehmoment beträgt:
0,39 Nm.
