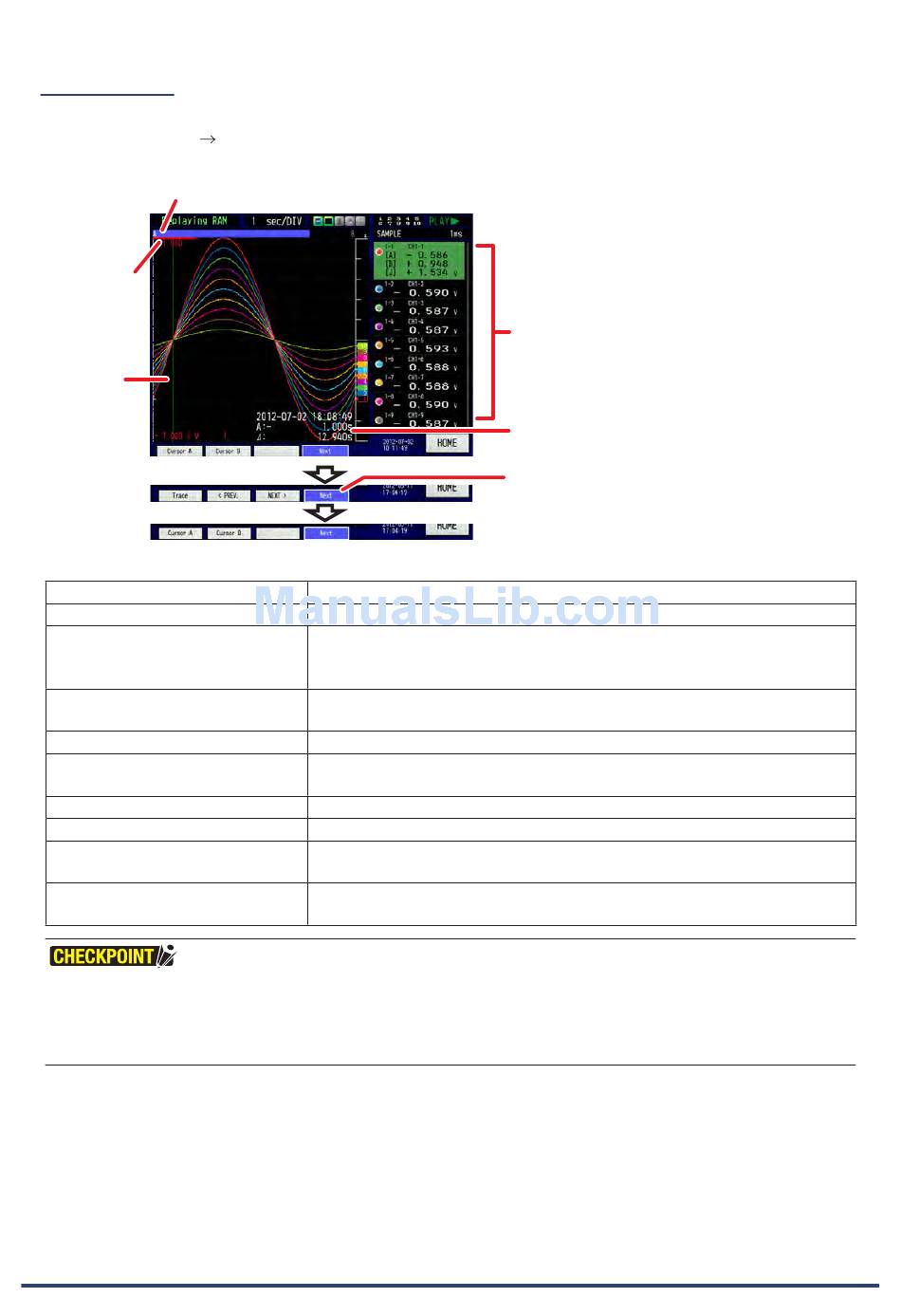

(4) Replaying
Displays the recorded data.
By pressing "Home"
(Please see p3-121 "(15) Replay setting screen (Data relapying screen)")
Position indicator
Compressed
data creating
display
Trigger point
Possible main actions during replay
Setting the measurement condition
Waveform operations
Moving the cursor
Search
File operations
Save Data
Replay data
Changing the timescale
Copy Screen (Screenshot)
Statistical Calculation
•
When replaying with the double-screen, the historical data is displayed with thinning temporarily.
In this case, a red line is displayed while creating compressed data.
(As soon as the compressed data is created, it is displayed.)
•
When the sampling interval used in recording with the built-in RAM is 500 μs or less, the recording stops, and then it is
automatically replayed.
"Replay" and selecting a data, the data can be replayed.
Measurement conditions can be set.
The waveform positions can be moved or zoomed in or out (See page 3-112).
The cursor can be moved to a designated place (See page 3-137).
When the left edge of the position indicator touched, "Move to first", and when
the right edge of the position indicator touched, "Move to last".
By setting the requirements, data passing the requirements can be searched
(See page 3-139).
File operations can be done (See page 3-28).
The entire data or data with certain set parameters can be saved (See page
3-130).
Data recorded can be replayed (See page 3-112).
The timescale on the time axis can be changed (See page 3-112).
The current waveform displayed as a BMP or PNG format can be saved (See
page 3-136).
Average value, peak value, maximum value, and minimum value for the data
during replaying are displayed (see page 3-142).
Cursor A or B. The voltage of the point at where
pointed with the selected cursor is displayed.
Cursor A or B. The measured time of the point at where
pointed with the selected cursor is displayed.
Each time you touch the "Next", the function of the Function
button is changed. The Function button allows you to modify
the time scale, to process the waveform, to search, and to
switch the cursor.
