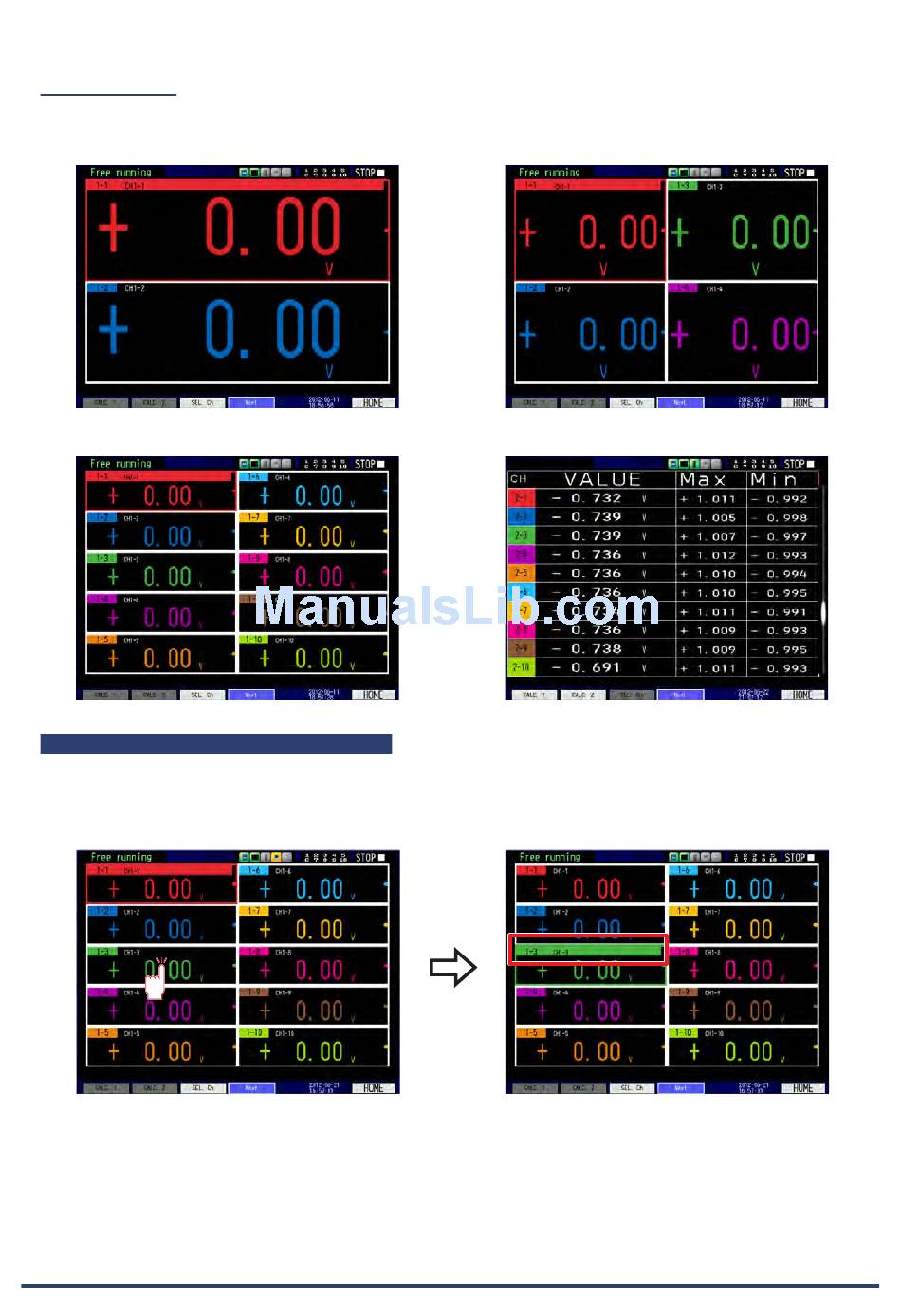

(15)-8 Format
If the display format is a logger, it sets the format of the logger display.
< 2 Division >
< 10 Division >
How to set the channel to be displayed
This section explains how to set the channel to display in each zone.
(1) By touching the direction keys or directly touching on the screen, select the zone to change the channel.
In this case, you can change the Ch1-3.
< 4 Division >
< Statistics >
CHAPTER 3 Measure and Set
3-119
