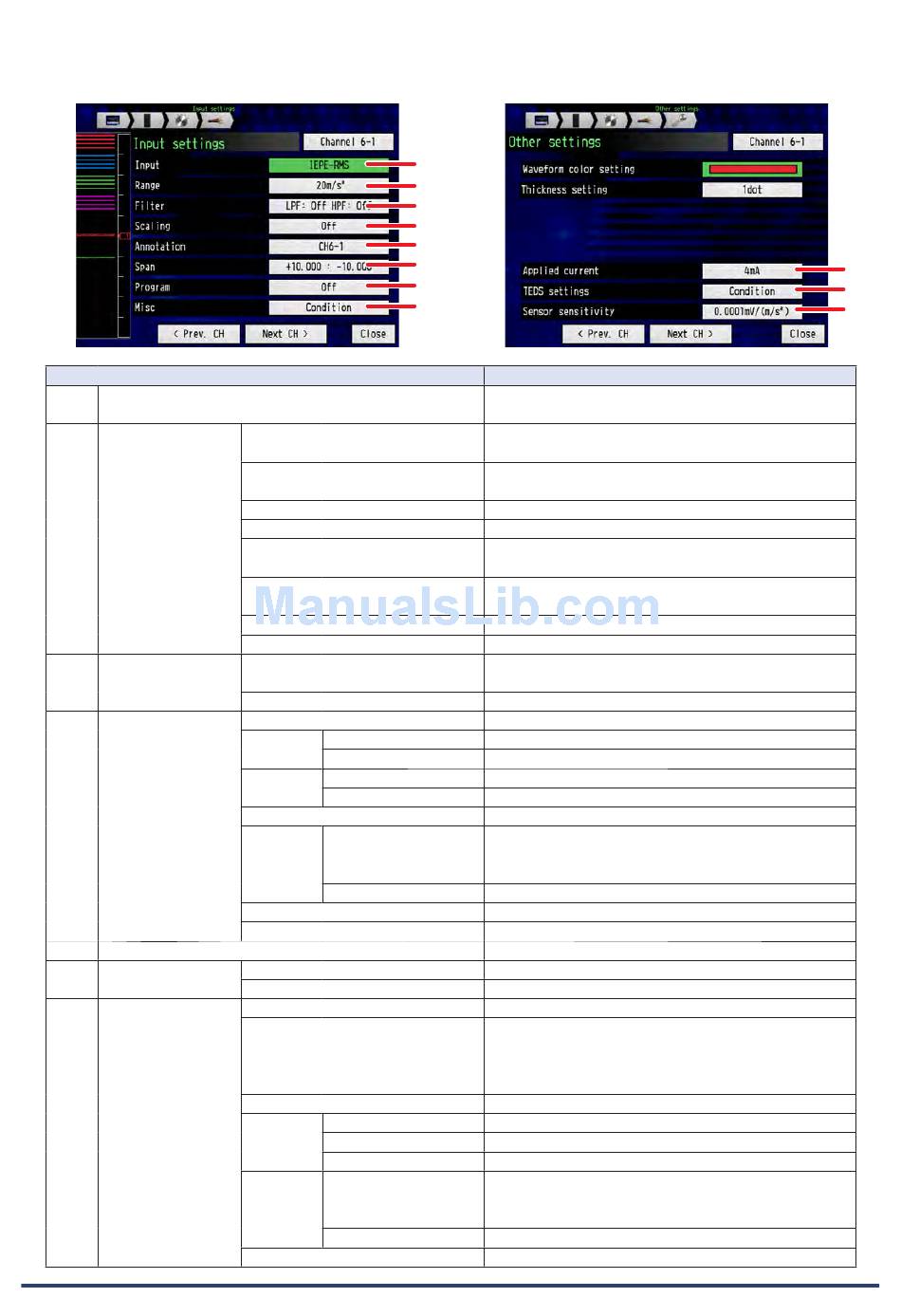

GRAPHTEC gl7000 User Manual page 155

<Charge Module (GL7-CHA)>
(11)-1 Input
(11)-2 Range
(11)-3 Filter
(11)-4 Scaling
(11)-5 Annotation
(11)-6 Span
(11)-7 Program
Setting items
Charge
IEPE
DC
AC
Charge-RMS *
1
IEPE-RMS *
1
DC-RMS *
1
AC-RMS *
1
L. P. F *
2
H. P. F *
3
Scaling
Meas. Upper limit value
Lower limit value
Value
Output Upper limit value
Value Lower limit value
Decimal point
Unit Sorting
selection
Unit selection
Unit
Integral *
4
Upper limit value
Lower limit value
Program
Arithmetic expression
Scaling
Calculation Upper limit value
Lower limit value
span
Decimal point
Unit Sorting
selection
Unit selection
Unit
(11)-1
(11)-2
(11)-3
(11)-4
(11)-5
(11)-6
(11)-7
(11)-8
Off, Charge, IEPE, DC, AC, Charge-RMS, IEPE-RMS,
DC -RMS, AC-RMS
5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000,
20000, 50000m/s
1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000,
10000, 20000, 50000m/s
50, 100, 200, 500mV, 1, 2, 5, 10V
50, 100, 200, 500mV, 1, 2, 5, 10V
5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000,
20000, 50000m/s
1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000,
10000, 20000, 50000m/s
20, 50, 100, 200, 500mV, 1, 2, 5V
20, 50, 100, 200, 500mV, 1, 2, 5V
Off, Line (1.5Hz), 3, 6, 10, 30, 50, 60, 100, 300, 500Hz,
1, 3, 5, 10kHz, Automatic (A.A.F)
Off, 0.15, 1, 10Hz
Off, On
Enter the number.
Enter the number.
Enter the number.
Enter the number.
Select the decimal point value depending on the range.
Current, length, area, volume, velocity, acceleration,
frequency, weight, job, pressure, flow rate, temperature,
strain
(Selected items vary depend on the group above.)
Enter the characters.
Acceleration, velocity, displacement
Enter the characters. (Max. 31 characters)
Enter the number.
Enter the number.
Off, On
CH-X (Function) CH-Y
CH-X: CH1 to CH112
Function: four arithmetic operations (+, –, x, ÷)
CH-Y: CH1 to CH112
/1000000, /1000, ×1, ×1000, ×1000000
Enter the number.
Enter the number.
Select the decimal point value depending on the range.
Current, length, area, volume, velocity, acceleration,
frequency, weight, job, pressure, flow rate, temperature,
strain
(Selected items vary depend on the group above.)
Enter the characters.
CHAPTER 3 Measure and Set
Examples of selection
2
2
2
2
*4
*5
*6
3-89
