CHAPTER 2 Checks and Preparation

2.9 Connecting the Power Cable and Turning on the Power

This section describes connecting the power cable and turning on the power.
Before turning on the power supply, make sure that all the modules you use are installed. If the module is installed while
the power is on, GL7000 may be damaged.

When using AC power

(1) Please insert the power cable into the AC power connector and the other side into an electrical outlet.
If the outlet has no ground terminal, please ground it by using the attached 2-pole/3-pole conversion
adapter.
* When installing the
optional module
(2) If the power switch is set to ON, the power is turned on.
•
After referring to the safety precautions, please make sure to connect the GND terminal. Also, please connect it even
when connecting to other machines using a common GND level.
•
The machine is an AC100V/AC200V automatic change system. Please make sure to use a power cord which complies
with standards.
•
When turning on the power in the state the Amplifier module has not been installed, GL7000 starts up as if one pseudo-
Voltage module (GL7-V) is installed.
2-28

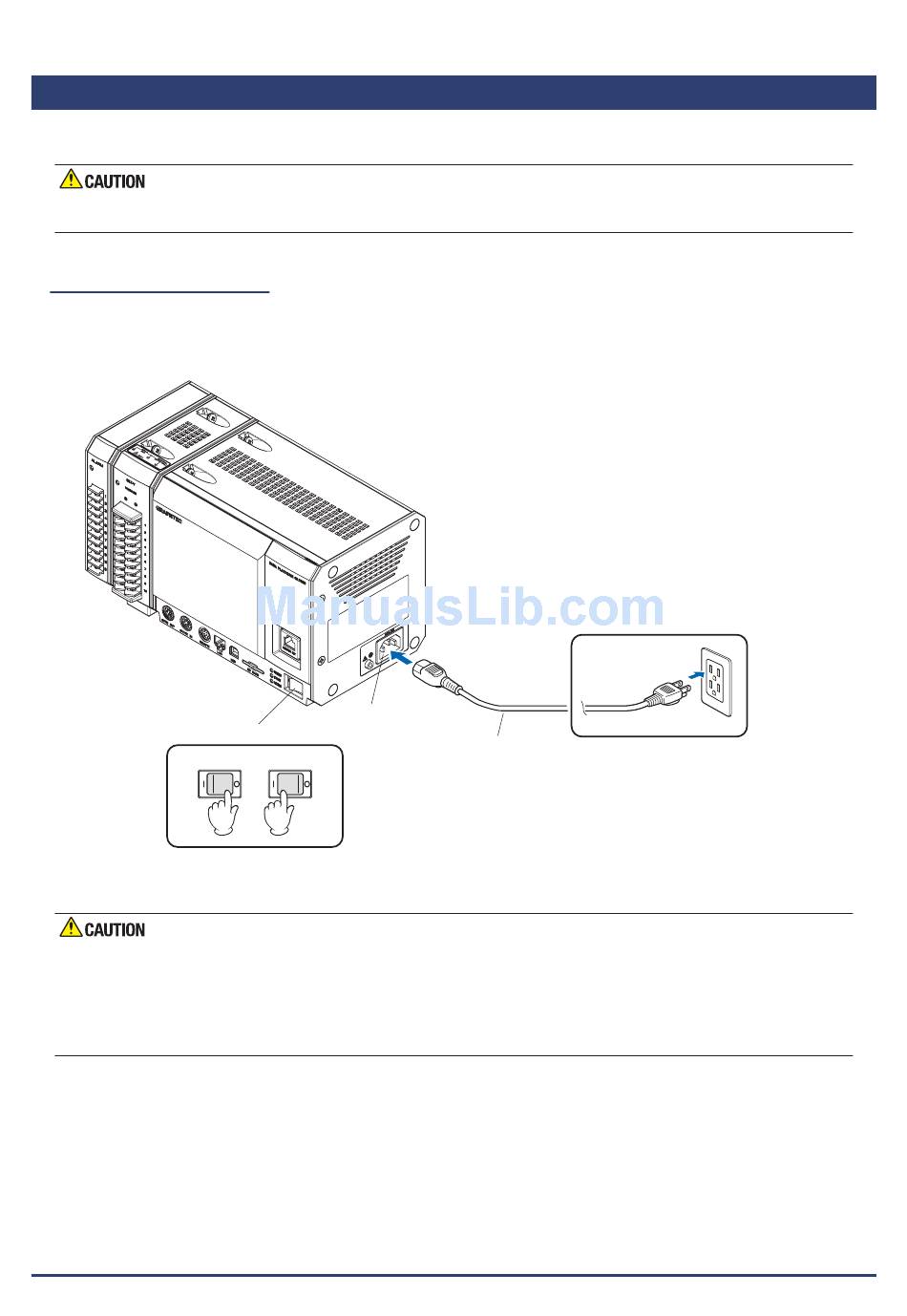

Power inlet
Power switch
OFF ON
Power cord
