3.4 Key Operations

Here the key functions will be explained.
The GL7000 is fundamentally operated by the touch-panel, but opening menus and some operations can be
done with the keys. The Start/Stop function or key lock can only be operated by keys.

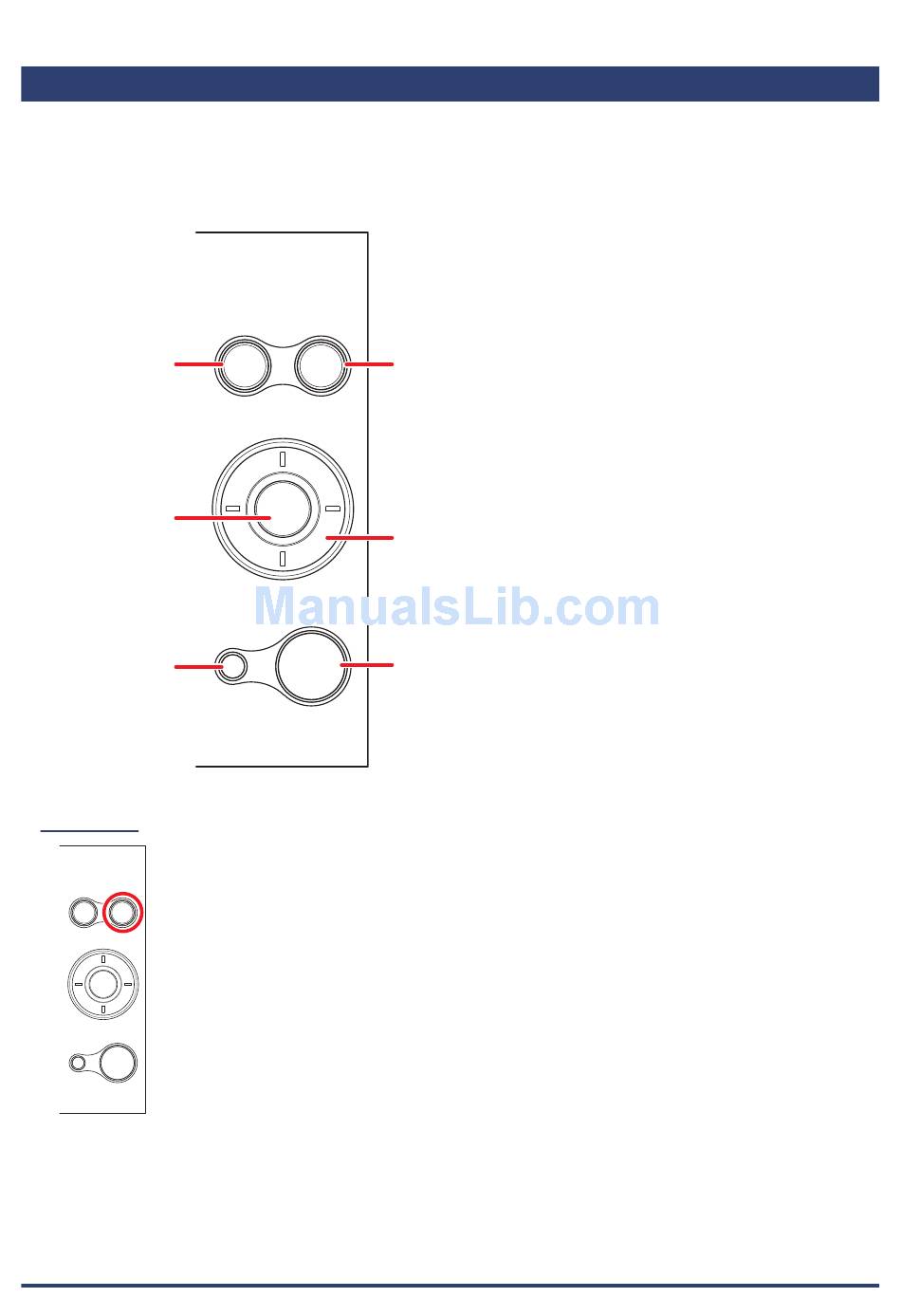

QUIT key
ENTER key
LOCK key
(1) HOME
The home menu is displayed when this key is pressed. For details, refer to "(2) Home
DATA PLATFORM GL7000
screen" on page 3-7.
QUIT HOME
ENTER
START
STOP
LOCK
Operation key
DATA PLATFORM GL7000
QUIT HOME
ENTER
START
STOP
LOCK
HOME key
Direction keys
START/STOP key
