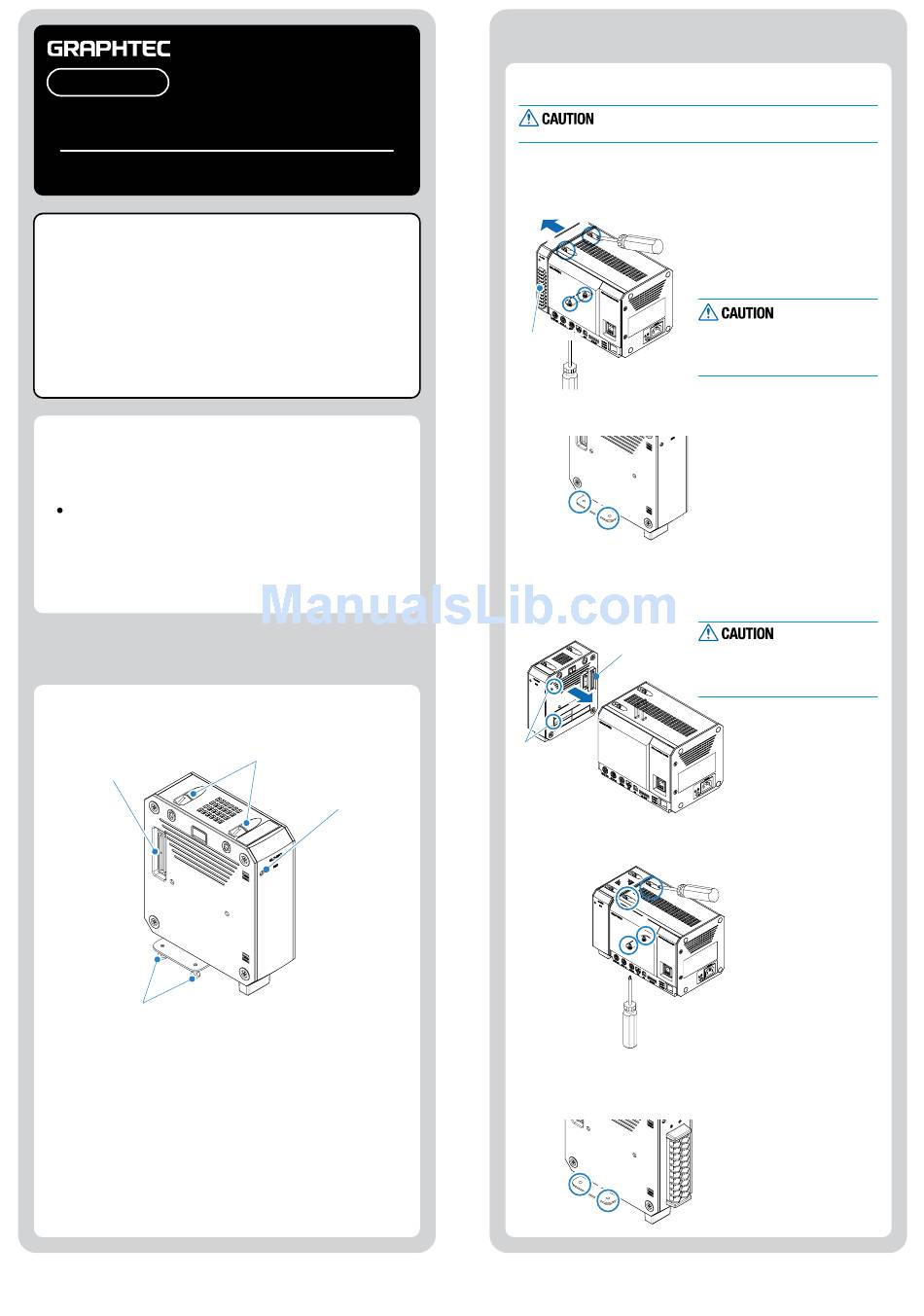

GRAPHTEC GL7-SSD User Manual

GL7-SSD
GL7000
SSD Module
USER'S MANUAL
Thank you very much for buying this GRAPHTEC product.
This product is a stand-alone module for recording.
Please use it by installing it on the main module.
These directions describe preparations and cautions before
measurement.
For the details concerning operation procedures etc., read
the User's manual recorded on the CD-ROM (included with
the main module)
Confirmation of the exterior
After opening the package, please confirm that there are no
problems (scratches and dirt) on the exterior before use.
Confirmation of the attached items.
User's manual (this book): 1
If by any chance faults are found, please contact the store where you
bought the item.
* Please note that items mentioned in this book may change without
prior notice.
1 Part Names
Explanation of the module's part names and functions.
2, Module fixation screw (Upper part)
1, Module connector
4, Module fixation screw (Lower part)
1, Module connector.............. Connector for connecting all kinds of modules.
2, Module fixation screw....... Fixation screw for the adjoining module.
(Upper part) To prevent drop off, do not remove from
the module.
3, Access Lamp......................
During data access, it lights up green.
(Not lit, when normal operation)
* Please do not turn off the power when it's lit up.
Fixation screw for the adjoining module.
4, Module fixation screw.......
(Lower part)
GL7-SSD-UM-151
3, Access Lamp
2 How to Install Module
This explains how to attach the module to the main module.
When installing or removing the module, please
make sure that the power is off.
1, Remove the fixation screws (4 places on the upper part and
lower parts), place the alarm module parallel to the main
module and slide it in the direction of the arrow.
3 3
4 4
1 1
2 2
Alarm module Alarm module
2, Remove the SSD module's fixation screws (2 places on the
lower part).
1 1
2 2
3, Slide the SSD module parallel to the main module and connect
the connector.
* SSD module must be connected to main module.
Connector
Nail
4, Fix the SSD module and the main module in place with the
screws. (4 places on the upper and lower parts)
1
2 2
3 3
4 4
5, Remove the amplifier module's fixation screws.
(2 places on the lower part)
(Here, we explain using the Voltage Module as an example)
1 1
2 2
(1) Remove the fixation screws from
the 2 places on the lower part.
(2) Loosen the drop-off prevention
screws on the upper part in 2
places.
(3) Removing the alarm module.
Slide it in the direction of the
arrow. If you pry it at an angle
there is a risk of damaging the
connector.
Slide it in the direction of the
arrow.
Inserting it at an angle may cause
damage to the nails.
Das empfohlene Schrauben-
Anzugsdrehmoment beträgt:
0,39 Nm.
