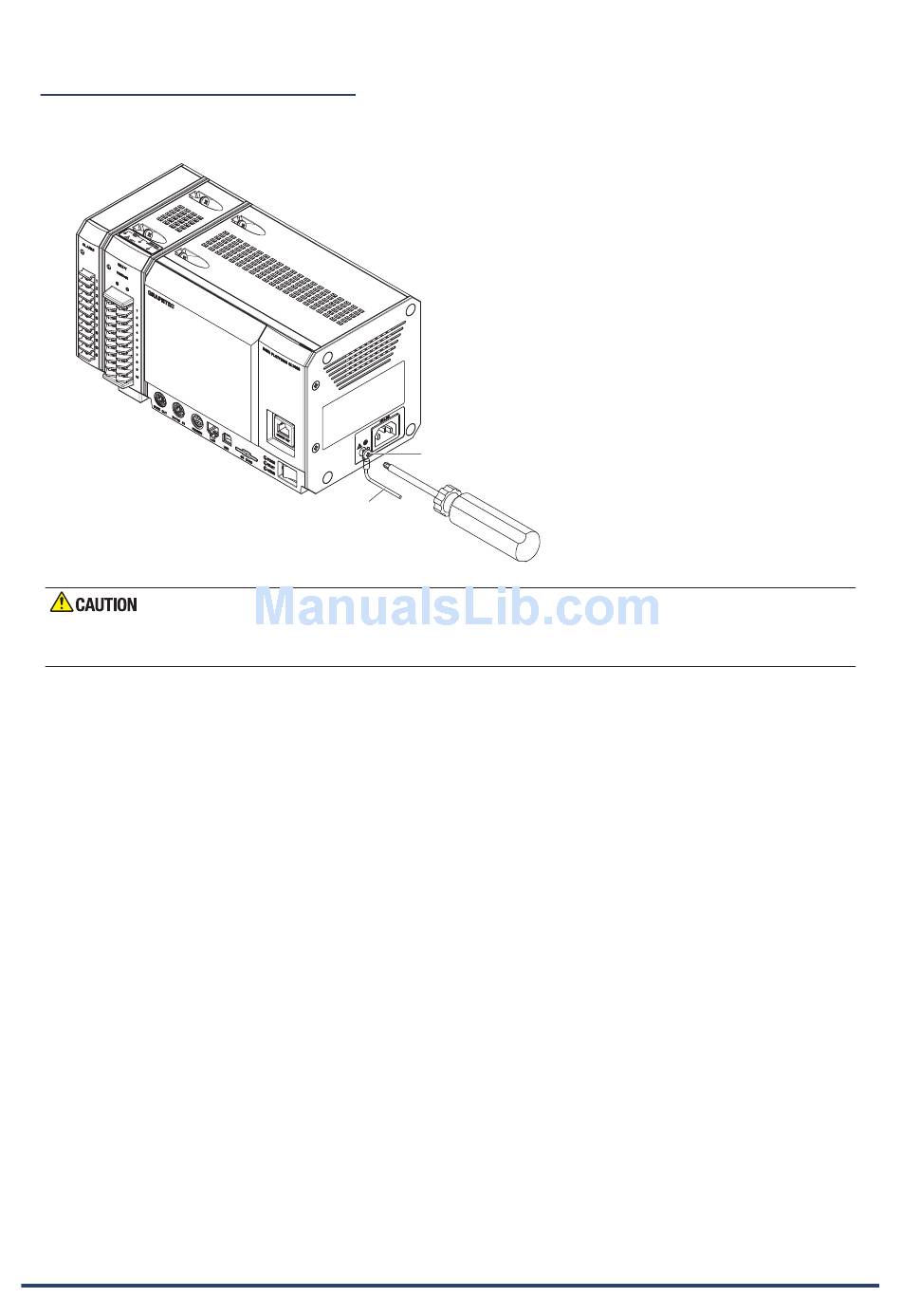

Connecting to the GND terminal
The GND terminal is used when the power cord cannot be grounded and when the GND level is shared with
other equipment.
* When installing the
optional module
•
In order to prevent an electric shock and a fire, please be sure to ground using a GND terminal.
•
For grounding, use a ground wire with a diameter of at least 0.75 mm
GND teminal
Ground wire
CHAPTER 2 Checks and Preparation
